20km 5.8GHz 800mw 300M Industrial Wireless Bridge

1
MOQ
USD, RMB
Price
20km 5.8GHz 800mw 300M Industrial Wireless Bridge
Features Gallery Product Description Request A Quote
Features
Specifications
Frequency: 5.8GHz
Transmission Range: ≥20km
Interface: RJ45*2, WiFi Antenna*2
Output Power: 800mw
Data Rate: Up To 300Mbps
High Light:

300M Industrial Wireless Bridge

,

800mw Industrial Wireless Bridge

,

5.8GHz IP Wireless Bridge

Basic Infomation
Place of Origin: Shenzhen China
Brand Name: OEM / LinkAV
Certification: CE
Model Number: LKAV-3719
Payment & Shipping Terms
Packaging Details: Brown Carton
Delivery Time: Negotiable
Payment Terms: T/T, PayPal
Supply Ability: 1000pcs/Month
Product Description

Introduction



The LKAV-3719 is an 802.11AN 300Mbps 5.8G 800mW high-bandwidth wireless bridge specifically designed for ultra-long-distance wireless bridging. It can reach an effective bandwidth of 80Mbps at 15km under barrier-free conditions. It can be applied to point-to-point over 20km. For bridging applications, the cast aluminum shell can not only effectively resist aging and extend the service life, but also can effectively dissipate heat to ensure stable operation. The built-in high-performance antenna designed with high-frequency materials is lightweight and has excellent RF performance, is far better than the external 23dBi antenna on the market, it is not only easier to install, but also more cost-effective.





Features

  • IP67 level wireless AP/bridge/AP client
  • Supports point-to-point and point-to-multipoint
  • Supports WEP(64 & 128-bit)/WPA/WPA2/IEEE802.1X authentication
  • Wide operating temperature (-40 ~ 70 °C)
  • Supports enable/disable SSID broadcast
  • Access control based on MAC address
  • Supports Upgrade firmware via HTTP
  • Web based management
  • Supports SNMP
  • Supports configuration file backup, and can be set as default
  • Supports IEEE802.1X/RADIUS
  • Support IEEE802.11B/G/N wireless network
  • Support IEEE802.3u 10/100 BaseT(X) Ethernet network
  • Support IEEE802.3af Power over Ethernet



Note:

For AP/Bridge: WEP, WPA, WPA2, IEEE802.1X, MAC address filtering, Hide SSID, Layer 2 Isolation, for AP client: 64-bit and 128-bit WEP encryption, WPA2



Applications



  • Wireless video surveillance
  • Forest fire prevention
  • Oilfield real-time data transmission
  • Highway monitoring point data transmission
  • High-speed internet connection between buildings



Specification



Data Rate Max 300Mbps
Operating systems Windows95/98/2000/ME/XP, Unix, Macintosh
Wireless Protocol IEEE802.11B/G/N
Internet Protocol HTTP, DHCP, TCP/IP, RADIUS, DNS, NetBIOS, AppleTalk and IPX/SPX
Output Power 800mW
Frequency 5.180-5.850GHz
Range (LOS) ≥20km
Configuration Method Web
Installation method Pole Mounting / Wall Mounting
Operating Temperature -40℃ ~ +70℃
Working Humidity 5% ~ 95% (non-condensing)
Storage Temperature -45℃~ +80℃
Weight 1kg
Dimensions 290x290x58mm (Wx H xD)
Power Supply POE (IEEE802.3af) 9V-24V DC
Power Consumption 18W (0.5A)
Interface

RJ45*2 --10/100BaseT (X)

N type*2 (2.4G WiFi)





RF Parameters



TX SPECIFICATIONS
  Data Rate TX Power(per chain) TX Power(2 chains) Tolerance



802.11a

6-24Mbps 26dBm 29dBm ±2dB
36Mbps 24dBm 27dBm ±2dB
48Mbps 23dBm 26dBm ±2dB
54Mbps 21dBm 24dBm ±2dB

  Data Rate TX Power (2 chains) Tolerance   Data Rate TX Power (2 chains) Tolerance





5GHz

11n

HT 20

MCS 0/8 28dBm ±2dB





5GHz

11n

HT 40

MCS 0/8 27dBm ±2dB
MCS 1/9 28dBm ±2dB MCS 1/9 27dBm ±2dB
MCS 2/10 27dBm ±2dB MCS 2/10 26dBm ±2dB
MCS 3/11 27dBm ±2dB MCS 3/11 26dBm ±2dB
MCS 4/12 25dBm ±2dB MCS 4/12 25dBm ±2dB
MCS 5/13 23.5dBm ±2dB MCS 5/13 23.5dBm ±2dB
MCS 6/14 23.5dBm ±2dB MCS 6/14 23dBm ±2dB
MCS 7/15 23dBm ±2dB MCS 7/15 22dBm ±2dB
MCS 7/15 22dBm ±2dB MCS 7/15 21dBm ±2dB
RX SPECIFICATIONS
  Data Rate Sensitivity (2 chains) Tolerance   Data Rate Sensitivity (2 chains) Tolerance



802.11a

6M -96dBm ±2dB



802.11a

24M -89dBm ±2dB
9M -96dBm ±2dB 36M -86dBm ±2dB
12M -95dBm ±2dB 48M -82dBm ±2dB
18M -93dBm ±2dB 54M -79dBm ±2dB

5GHz

11n

MCS0 -95dBm ±2dB

5GHz

11n

MCS0 -92dBm ±2dB
MCS1 -93dBm ±2dB MCS1 -90dBm ±2dB

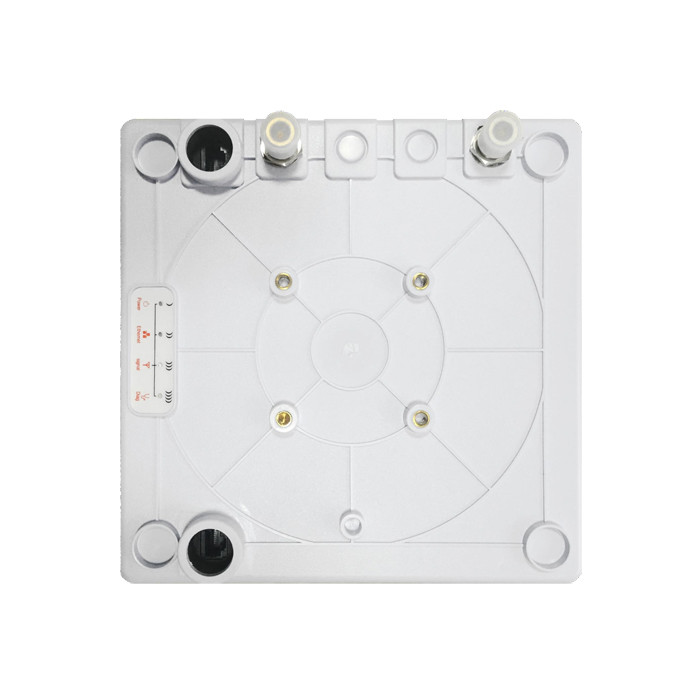

Interface Description



  • RJ45 Interface, POE/Power Source
  • Antenna Interface, N type, 2.4G WiFi
  • Antenna Interface, N type, 2.4G WiFi
  • Mounting holes
  • RJ45 Interface, POE/Power Source
  • Diag Indicator
  • Signal Indicator
  • Ethernet Indicator
  • Power Indicator
