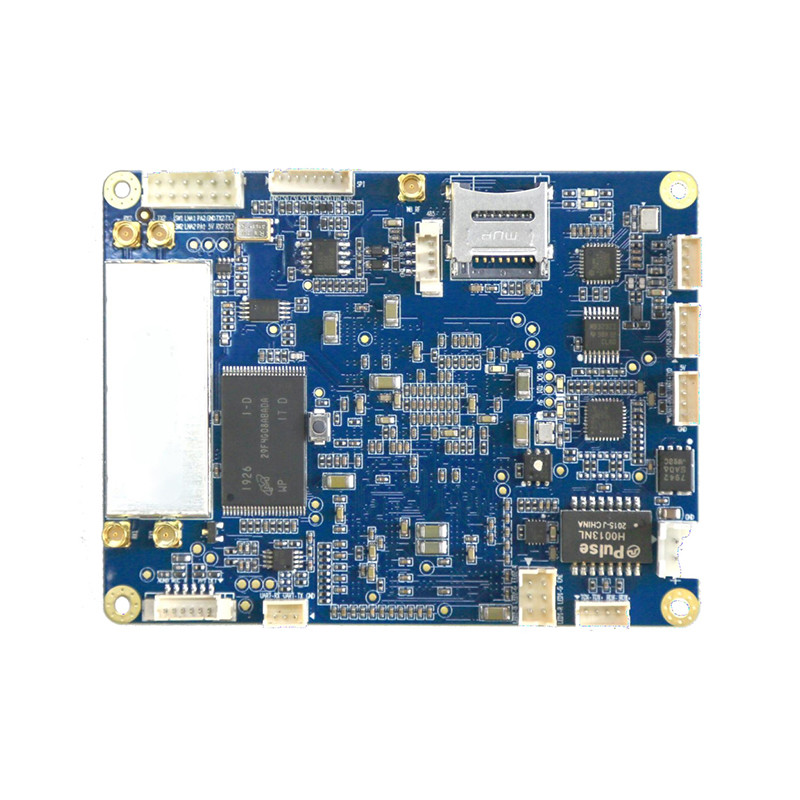

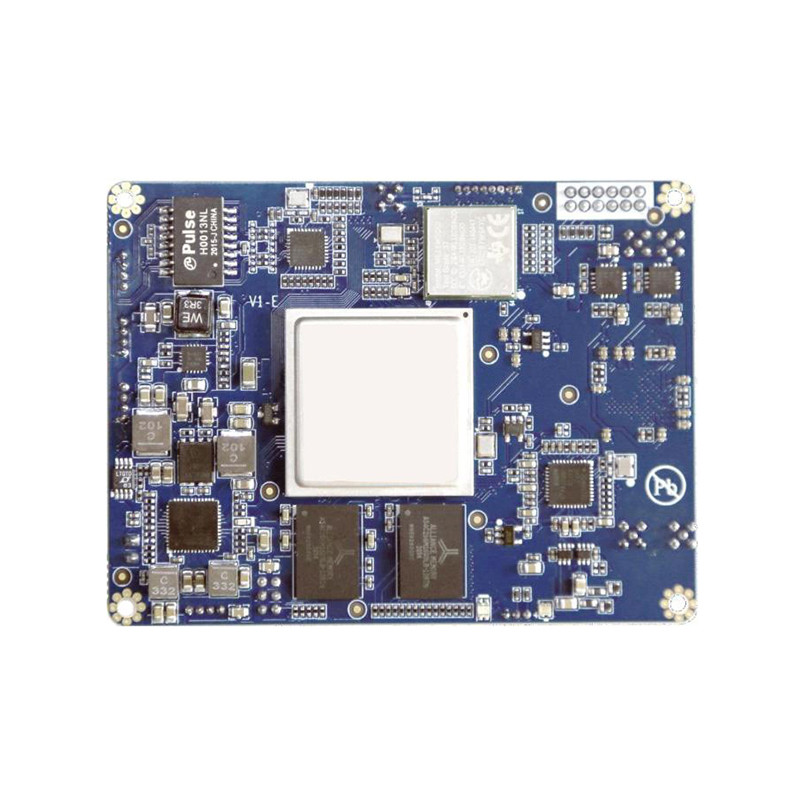

Frequency Hopping broadband IP Mesh Radio Module Light Weight Small Size
Introduction
The LKAV-6315 is a dual-channel, high-performance IP mesh radio module based on FPGA solution and software-defined radio platform. It features large network scale, long communication range, stable transmission rates, wide frequency band support, strong resistance to multipath interference, fast network joining/leaving, quick routing switchovers, support for high-speed mobile nodes, communication security and confidentiality, and compatibility with IP voice conferences, among other excellent characteristics.
Features
■ 70MHz~6GHz frequency customizable
■ Supports MIMO dual-channel Ad Hoc network
■ Data rate up to 56Mbps
■ Supports up to 9-hop and 32 nodes
■ Supports COFDM and DTDMA waveform
■ Supports over 1000km/h mobile speed
■ Supports WebUI management
■ Light weight and compact size
■ API file is available for secondary development
■ AES128/AES256 encryption as optional
■ 32/64/128/256 high-speed frequency hopping as optional
Specification
| Frequency | 70MHz~6GHz (1Hz per step adjustable) |
| Modulation | QPSK / 16QAM / 64QAM / 256QAM； |
| Communication Waveform | COFDM + DTDMA |
| Carrier Bandwidth | 2.5/5.0/10.0/20.0MHz |
| Data Bandwidth |
Standard: 28Mbps (Peak Rate); Optional: 56Mbps (Peak Rate); |
| Output Power | -64dBm~0dBm (1dB per step adjustable) |
| Receiving Sensitivity | ≤-100dBm |
| Mobile Speed | ＞1000km/h |
| Power Supply | 7.0~15.0VDC/1.5A |
| Power Consumption | 4~6W |
| RF Interface | 4x MMCX (2x Tx & 2x Rx) |
| Video Interface | Ethernet interface (Supports external H.264/H.265 encoding board) |
| Control /Service Interface | 2x 100Mbps Ethernet, Wi-Fi |
| Serial Port | 1x TTL, 1x RS-232 |
| Dimensions (L×W×H) | 85x64x11.3mm |
| Weight | 38g |
| Working Temperature | -40°C ~ +65°C |
Interface Description
| Interface | Function | Connector Type | Remark |
| J1: amplifier control and serial port 1 | Amplifier control switch and serial port 1 | PHD-2*6A (PHD2.0 12P) | Pin1, Pin2 are serial port 1, TTL (3.3V) |
| J3: RF port TX1 | RF transmit channel 1 | MMCX | |
| J4: RF port RX1 | RF receiving channel 1 | MMCX | |
| J5: RF port TX2 | RF transmit channel 2 | MMCX | |
| J6: RF port RX2 | RF receiving channel 2 | MMCX | |
| J9: light indicator Interface | External LED, onboard current limiting resistor | PHD-2*3A (PHD2.0 6P) | TTL (3.3V) |
| J12: RS-485 interface | PTZ control interface | 1.25-4AT (vertical patch) | RS-485 |
| J13: Wi-Fi antenna interface | Wi-Fi and Bluetooth antenna interface | MMCX | |
| J15: serial port 0 interface | Serial 0 | JST B4B-ZR-4 (ZH1.5 4P) | RS-232 |
| J16: eth0 interface | Support ethernet service and transmit data through IP port | JST B4B-ZR-4 (ZH1.5 4P) | 100M network port |
| J17: eth1 interface | Support external video encoding module | JST B4B-ZR-4 (ZH1.5 4P) | 100M network port |
| J18: USB interface | Support USB video encoder | JST B4B-ZR-4 (ZH1.5 4P) | |
| J19: audio interface |
supports PTT earphone/hand Mic (headphone R, L output power 20mW@32Ω, hand Mic output power 1W@8Ω differential) |
1.25-6AT (Vertical patch) |
PTT TTL low effective; Pin1: EAR_DET headphone detection: it should be grounded when connected to the headphone; and be left open when connected to the microphone. |
| J20: RF SPI interface | RF transceiver control interface | 1.25T-1-8A (Vertical straight plug) | TTL (3.3V) |
| J21: Power input interface |
Power input (DC 7.0～15.0V) |
JST B2B-XH-2 (XH2.54-2P) |
