UAV Long Range Wireless Camera Transmitter HDMI CVBS SD / HD Video Links

China UAV Long Range Wireless Camera Transmitter HDMI CVBS SD / HD Video Links supplier
UAV Long Range Wireless Camera Transmitter HDMI CVBS SD / HD Video Links supplier UAV Long Range Wireless Camera Transmitter HDMI CVBS SD / HD Video Links supplier UAV Long Range Wireless Camera Transmitter HDMI CVBS SD / HD Video Links supplier UAV Long Range Wireless Camera Transmitter HDMI CVBS SD / HD Video Links supplier

Large Image :  UAV Long Range Wireless Camera Transmitter HDMI CVBS SD / HD Video Links

Product Details:

Place of Origin: China
Brand Name: LinkAV
Certification: CE
Model Number: LinkAV-C654-1W

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Standard Export Packaging
Delivery Time: 10-20 working Days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Contact Now
Detailed Product Description
Video Format: HDMI CVBS Long Range: Air To Ground 20KM
Receiving Sensitivity: -106dBm (at 4Mhz) Rate: 3MBps~32MBps
RF Interface: SMA F Head Modulation: COFDM

UAV Long Range Wireless Camera Transmitter HDMI CVBS SD / HD Video Links

COFDM Drone UAV Long Range Video Transmitter Specification:

Transmission Characteristics
ModulationQPSK(4QAM),16QAM,64QAM
Frequency300MHz-2.7GHz ( Default 700MHz/2.4GHz)
Transmit power30dBm
RF bandwidth2MHz~8MHz(optional),1KHz step
FEC(forward error correction)1/2,2/3,3/4, 5/6,7/8
Guard Interval1/4,1/8,1/16,1/32
Rate3MBps~32MBps
Antenna Gain3.5dbi (Omni Antenna) (optional)
Transmission rangeAir to Ground 20km
Data Characteristics
Video Input

HDMI: 1080 60P,1080 50P,1080 30P,1080 25P,1080 24P,1080 60I,1080 50I,1080 30I,720 60P,720 50P,720 30P,... (Mode adaptive)
AV:720x480 60I(NTSC),720x576 50I(PAL) (Mode adaptive)

Video CompressionH.264
RF InterfaceSMA F head
Parameter Control MethodUsing digital LED control panel
Encryption256 - bit AES (can set user’s password)
Electrical Characteristics
Working VoltageDC12V
Working Current≤1.2A(@12V)
power consumption≤14.5W
Physical Characteristics
Weight105g
Dimensions77x54x23.5mm
Working Environment-10℃~+70℃


COFDM Drone UAV Long Range Video Transmitter Specification:

Transmission Characteristics
ModulationCOFDM
ConstellationQPSK(4QAM),16QAM,64QAM
Frequency200MHz-2.7GHz optional(Default 700MHz/2.4GHz)
RF bandwidth2MHz~8MHz(optional),1KHz step
FEC(forward error correction)1/2, 2/3, 3/4,5/6, 7/8
Guard Interval1/4,1/8,1/16,1/32
Sensitivity-106dBm(at 4Mhz)
Data Characteristics
Video Output

HDMI:1920x1080 p60
AV:720x480 60I(NTSC)

Video CompressionH.264/MPEG-2
RF InterfaceSMA F head
Storage interfaceTF card (128G)
Parameter Control MethodUsing digital LED control panel
Encryption256 - bit AES (can set user’s password)
Electrical Characteristics
Working VoltageDC6V-15V
Working Current≤0.2A(@12V)
power consumption≤2.5W
Physical Characteristics
WeightLess than 248g
Dimensions114.4x91x32.8mm
Working Environment-20℃~+70℃


The C654 transmitter is a mini COFDM video transmitter from Wireless LinkAV, designed specifically for UAV/ Drones video transmission applications.
With proven LinkAV COFDM technology and H.264 encoder technology at its core, the C654 transmitter enables viewers high definition images ideal for establishing rugged wireless video links in all environments including mobile and urban environments.
The small size and ultra-low power consumption make the C654 transmitter ideal for UAV installations, enabling true long range HD quality transmission from these increasingly popular devices for the first time. Optional lightweight, low power consumption amplifiers are also available for even greater range capability.
C654 transmitter can transmit images air to ground up to 20km, depending on mode and frequency.
LinkAV-C204 Mini Wireless Receiver is a compact digital diversity receiver in a durable, compact and lightweight housing. It can receive multiple different frequencies of transmitter audio signal, support HDMI and CVBS interface with external display and USB storage.
It can realize the AV transmission between the transmitter and the mini receiver LinkAV-C204.
Adopting the advanced foreign technology of diversity reception, to overcome the simulation technology and conventional modulation technology under multipath reflection image transmission, and keep real-time transmit high quality SD/HD image under high speed mobile and NLOS conditions, particularly suitable for using in complex environment

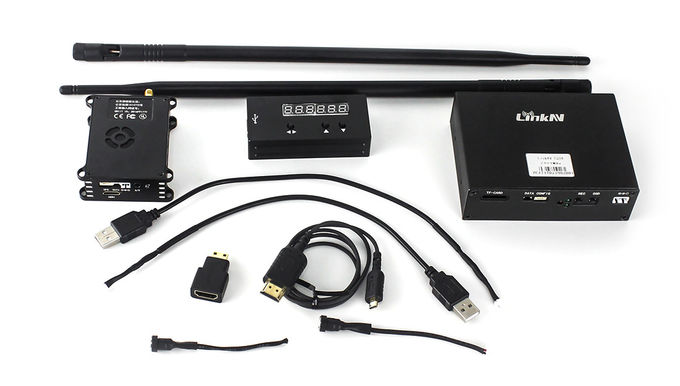

UAV Long Range Wireless Camera Transmitter HDMI CVBS SD / HD Video Links
UAV Video Transmitter Interface.
Transmitter Antenna:SMA Female head,Standard with omni directional feeder whip antenna,antenna gain is 3.5dbi.
(Note: Please don’t turn on the transmitter without TX antenna ,otherwise it cound be damaged.)
FM board Interface:From left to right the pins are:1.DC5V,2.GND,3.RXD,4.TXD, If needed, transmitter parameters can be modified by our FM board or through the computer serial port.
Data interface: Can be connected with computer,change parameters via serial port TTL level,Transparent baud rate factory default is 115200, Please confirm the details in our instruction list.
Power Interface: voltage12V DC, current 1A
A/V CVBS Signals Input: 3.5MM / 3 audio and video interface, AV cable connect to the analog camera.
Working Indicator:Work indicator are red and yellow digital tubes,normal work power on with red indicator,Connected to the signal source,yellow light blinks when the transmitter normally sends data,The faster the flash, the larger the transmitted data.
HDMI signal input:HDMI-C interface, you can use the HDMI (C-D) cable to connect high-definition camera.

UAV Video Receiver Interface.
Power interface: DC12V Power supply.
USB Interface: USB storage port
OSD Button:For turn on/off on screen dispaly
REC Button:For turn on/off recording,start record as soon as power on,automatic coverage when full storage.
Work indicator:
Red - power light;
Green(up) - recording indicator, flash faster in the recording state;
Green(down) - Signal receiving indicator,only flash when receiving signals
TF card Interface:For firmware upgrade and recording storage,128G,FAT32.
Data Serial Port:from left to right--1.GND, 2.RXD, 3.TXD, just support TTL level protocol, data transmission baud rate factory default is 115200.
Config Serial Port:from left to right--1. DC5V, 2.GND, 3.RXD, 4.TXD.Receiver parameters can be modified by our FM board or through the computer serial port. Baud rate factory default is 9600.
Antenna interface: Dual antenna diversity reception,the interface is SMA female head ,standard equipment magnetic antennas (gain: 5.5dbi), or optional special euipment with FRP antennas .
HD video signal output: HDMI-A interface, HDMI output video format,1080P 60 / 720P 60 adaptive.
Analog video signal output: the output is NTSC standard, yellow for the video signal output, red and white for the audio signal output.
