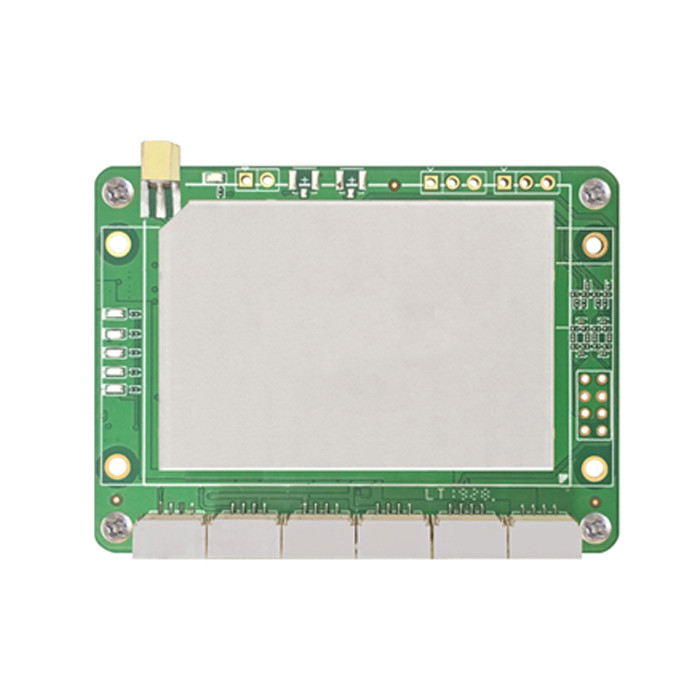

Light Weight OEM Mainboard UAV PCBA Video Data Link Module

Light Weight RS232 OEM Mainboard UAV Video Data Link Module

UAV Video Data Link Module  350MHz-1800MHz Customizable

About LinkAV
Founded in 2005, LinkAV has been dedicating to design and manufacture mobile wireless video/data transmission systems including COFDM, IP MESH and 4G-LTE series, with a group of professional engineers to provide tailor-made service (OEM). LinkAV serves a diverse, high demanding customer base from police/ to ordinary citizens, from UAV to UGV/Robots, from oil field to forest, from overseas to mainland China.

LinkAV is China leading manufacturer (OEM) of innovative wireless communications and information systems. Our advanced data link systems are ideal for critical communications in unmanned systems such as unmanned ground vehicles (UGVs), unmanned aerial vehicles (Drones, UAVs) and unmanned surface vehicles (USVs), and are designed with portability and reliability foremost in mind.

Introduction

The LKAV-6614 is a mini size IP radio works at 1400MHz band, with spread spectrum to ensure good stability even in rapid movement condition. It features 802.11 protocol and can be quickly connected to other devices such as Android smart terminals through USB or network terminal interfaces. It supports data rate up to 90Mbps and transmission range up to 2-3km (NLOS ground-to-ground) / 10-20km (LOS air-to ground), is ideally suit for long range and high data stream wireless applications, such as UAV/USV/UGV and wireless surveillance.

Features

■ 350MHz~1800MHz frequency customizable

■ Supports spread spectrum

■ 2.5/5/10/20/40MHz bandwidth adjustable

■ Max 90Mbps@40MHz throughput

■ Full IP transparent transmission

■ Supports video and data stream at the same time

■ WebUI for management

■ WPA-PSK/WAP2-PSK encryption (user-defined password)

■ Compact size and light weight

Specification

RF Parameter

Dimensions

Panel Description

① RF Interface - MMCX

② TTL serial port (4-pin)

③ RS232 serial port (4-pin)

④ USB port (4-pin)

⑤ USB port (4-pin)

⑥ Ethernet port (4-pin)

⑦ Power port (4-pin)

⑧ HDMI port (Reserved)

⑨ Internal serial port (Reserved)

Application

FAQ

Q1: Are you a manufacturer or a trading company?

We're professional manufacturer specializing in wireless transmission systems.

Q2: Why should I choose you?

You'll get competitive price, prime quality, satisfied service and long warranty.

Q3: What kind of product service can I have?

OEM & ODM service.

Q4: What kind of warranty do you offer?

We offer one-year-warranty and lifelong maintenance.

Q5: What're the payment terms?

We accept bank transfer, PayPal, or cash payment.

Q6: Packaging & Shipping?
Neutral brown carton & Ship via DHL, FedEx, UPS, TNT or by air/sea.

Q7: How long for delivery?
1-3 weeks for regular model and 3-5 weeks for customized model.

Q8: Can I order 1 sample for test?

Yes, we welcome sample order, mixed samples are acceptable.

Q9: Do you have any MOQ limit?

No limit, 1pc is acceptable.

Q10: Is it OK to print my logo on the product?

Yes, please inform us formally before production and confirm the design firstly.

Our Advantages

■ Over 15 years experiences in wireless video solutions.

■ High product quality and competitive price.

■ Excellent pre-sale and after-sale technical team.

■ Quick response and fast delivery.

■ OEM supported.
