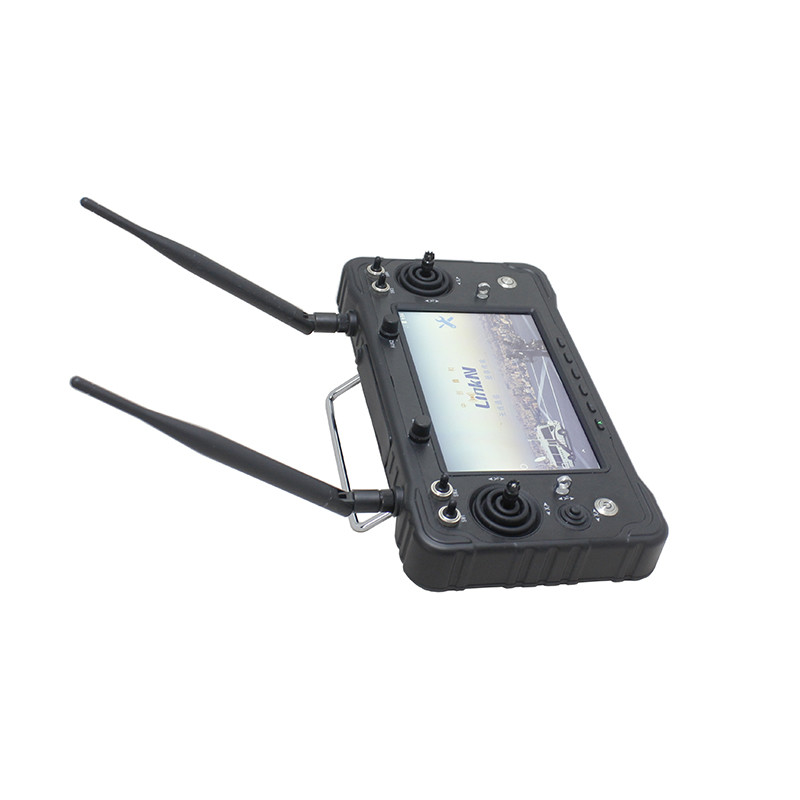

Android Handheld Ground Control Station IP67 with 1800nits 7.1-inch Dispaly
Introduction
The MANET3102 is a lightweight and economical Android ground control station designed for special robots. It integrates the functions of video reception, data transmission, real-time display, command and control, etc. Based on MESH technology, it featurs FHD video, low delay, long range and anti-interference.
In application, the live video and information (such as fire point and oxygen concentration) are displayed in real time through the remote control display. Multiple videos can be displayed at the same time or only display one of the videos, and control commands are sent according to the front-end feedback on the scene, such as robot motion control, PTZ camera control, water cannon control, car light control, alarm trigger, vehicle speed control, emergency stop button, screen selection, video recording, etc.
Features
■ Rugged aluminum alloy housing with strong heat dissipation
■ With Surge processor and Android embedded system
■ Advanced SDR technology enables clearer image and lower latency
■ With strap for easy operation in harsh environment
■ With 7.1-inch HD 1800nits high-brightness screen
■ Transmits 1080P video and bi-directional data at the same time
■ With RJ45, USB Type-C, OTG and TF card interfaces
■ Supports one-to-multiple control
■ Up to 1km transmission range
■ With easy operation rockers, switches and buttons
■ MESH network up to 9 hops and no less than 64 nodes
■ Up to 6-10 hours long battery life
■ Supports AES encryption
■ IP67 waterproof and dustproof
Specification
Display Size | 7.1” |
Display Resolution | 1280*800pixels |
Display Brightness | 1800nits |
Video Display | 1080P |
Frequency |
5.180~5.825GHz
|
RF Bandwidth | 10M/20MHz/40MHz |
Output Power | 30dBm (1W MIMO 2x2) |
RF Channels | 2T2R |
Modulation Type | BPSK/QPSK/16-QAM/64-QAM/DSSS/CCK |
RF Interface | SMA*2 |
LAN Interface | RJ45 |
Storage Interface | TF-Card slot |
Power Input Interface | USB Type-C |
Transmission Range | Up to 1km |
Data Rate | Up to 90Mbps |
Encryption | AES |
Dimensions | 272*183*94mm |
Weight | 1kg (w/ Battery) |
Working Temp. | -20℃~+60℃ |
IP Code | IP67 |
Working Voltage | DC 4.2V |
Battery Capacity | 20Ah (6-10 hours) |
Power Consumption | ≤30W |

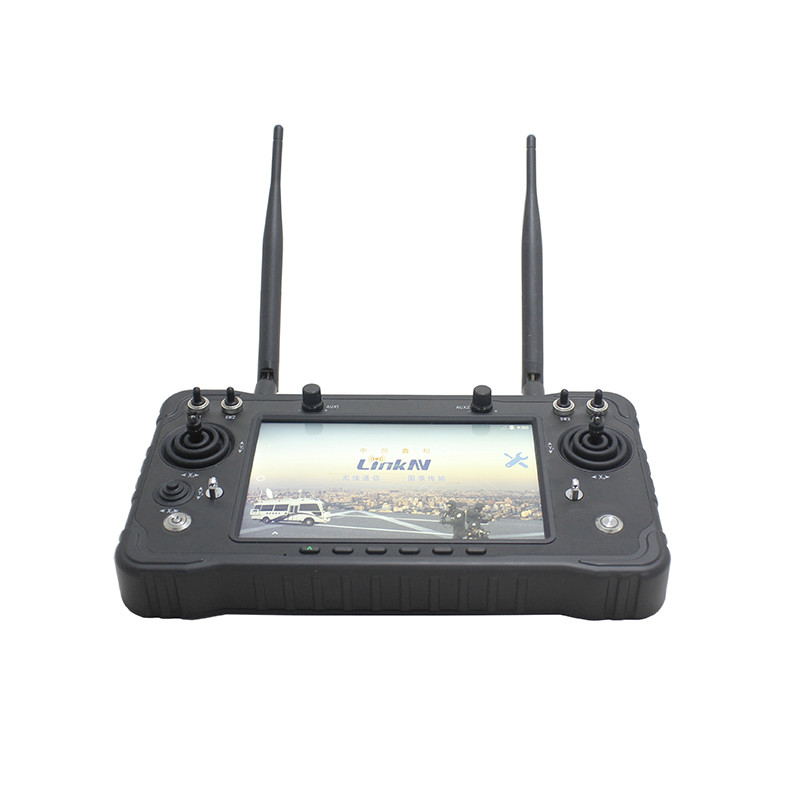

Panel Description
❶ 5.8G 3dBi Antennas
❷ Toggle Switch SW2
❸Toggle Switch SW1
❹ Left Joystick X1. Y1
❺ Small Joystick X3. Y3
❻ Power Push Button
❼ Six-segment Switch
❽ Default Switch
❾ Right Joystick X2. Y2
❿ Toggle Switch SW4
⓫ Toggle Switch SW3
⓬ Knob AUX2
⓭ Knob AUX1
