COFDM Video Transmitter OEM Module 1080p FHD HDMI & CVBS Inputs AES256 Encryption

1
MOQ
USD, RMB
Price
COFDM Video Transmitter OEM Module 1080p FHD HDMI & CVBS Inputs AES256 Encryption
Features Gallery Product Description Request A Quote
Features
Specifications
Vido Input: HDMI/SDI/AHD/CVBS
Resolution: 1080P/720P...
Frequency: 300-2700MHz Selectable
Latency: 60-100ms
Encryption: AES256
Size: 70x45mm
Weight: 31g
Highlight:

Video Transmitter OEM Module

,

COFDM Transmitter OEM Module

,

Video Transmitter OEM Mainboard

Basic Infomation
Place of Origin: Shenzhen China
Brand Name: OEM / LinkAV
Certification: CE
Model Number: LKAV-1649
Payment & Shipping Terms
Packaging Details: Brown Carton
Delivery Time: Negotiable
Payment Terms: T/T, PayPal
Supply Ability: 10000pcs/Month
Product Description

COFDM Video Transmitter OEM Module 1080p FHD HDMI & CVBS Inputs AES256 Encryption



Introduction

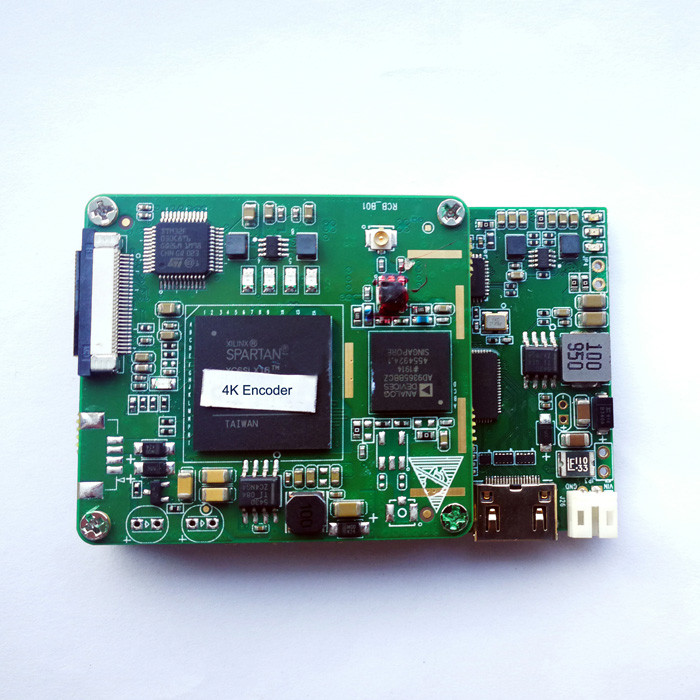

The LKAV-1649 is a COFDM wireless HDMI/AHD & CVBS video transmitter designed to capture real-time, high-quality video from UAV/UGV/Body Cams for display on fixed or mobile receive applications. It features HD-SDI/AHD & CVBS inputs with COFDM transmission. Providing long range, reliable HD video transmission.



Features

■ HDMI/AHD and CVBS dual video inputs

■ 1080p FHD up to 30fps

■ 300MHz-2.7GHz frequency selectable

■ Transmission range up to 1-1.5km NLOS

■ 60-100ms low system latency

■ H.265 encoding

■ AES256 encryption

■ Compact size and light weight



Specification

Transmission Characteristics
Modulation COFDM
Modulation Type QPSK(4QAM), 16QAM, 64QAM
Frequency 300MHz-2.7GHz (Default 700MHz)
Output Power 0dBm
RF Bandwidth 2/4/6/8MHz
FEC 1/2, 2/3, 3/4, 7/8
Guard Interval 1/4, 1/8, 1/16, 1/32
Data Characteristics
Video Input

HDMI: 1080p/1080i/720p/720i…

CVBS: 720x480/60i (NTSC), 720x576/50i (PAL)

Encoding H.265
RF Interface SMA F head
Parameter Settings Using the LED Control Box
Encryption AES256 (User defined password)
Electrical Characteristics
Working Voltage DC12V (7-24V)
Working Current ≤0.23A (@12V)
Power Consumption ≤2.8W
Physical Characteristics
Weight 31g
Dimensions 70x45mm
Working Temp. -20℃ ~ +70℃



Interface Descriptions

COFDM Video Transmitter OEM Module 1080p FHD HDMI & CVBS Inputs AES256 Encryption 0

LED1: Power indicator, always on after power up.

LED2: Video signal detection lock indicator, it will be always on when the video source is successfully locked after detecting the video source. If it is off, means the system has failed to capture the video source.

LED3: Video encoding indicator, flashing when working normally



COFDM Video Transmitter OEM Module 1080p FHD HDMI & CVBS Inputs AES256 Encryption 1

COFDM Video Transmitter OEM Module 1080p FHD HDMI & CVBS Inputs AES256 Encryption 2



Power-in: Power input, 2 pin.

HDMI-in: HDMI input interface.

AV-in: Analog audio and video input interface, 6-pin 1.25mm pitch socket, audio support Mic In and Line In.

CFG-UART: Serial port for board parameter configuration, 4-pin 1.25mm pitch socket. It can be connected to the USB programmer or other upper computers.

Data-UART: Data serial port, 3-pin 1.25mm pitch socket. Baud rate and other parameters can be configured through the CFG-UART. When docking the wireless transmission module, the data serial port is used for one-way transparent data transmission.

USB: 4 pin 1.25mm pitch socket, used for software upgrade and maintenance..

Speaker: Reserved

Ethernet: Reserved





Advantages of COFDM
COFDM modulation has very strong attenuation resistance, COFDM modulation enables the transmission from the end user to a plurality of subcarriers, and the signal can be kept very much longer than the signal kept in a single-carrier system correspondingly, so COFDM has a stronger resistance for impulse noise and fast channel attenuation resistance. COFDM has higher utilization of frequency and allows overlapping orthogonal subcarriers waves as sub-channels, rather than the traditional use of guard bands separating the sub-channels, so it improves the frequency efficiency, and maximizes the use of spectrum resources.



As for high-speed data transmission, COFDM has its self-adaptive modulation mechanism which enables subcarriers to choose different modulation methods like QPSK, QAM, 16QAM or 64QAM according to different channel conditions and background noises. If the conditions are good, then adapt itself to the high-efficiency modulation, if the conditions are bad, then adapt to the anti-interference modulation. So it can reliably adapt to a high-speed data transmission.



It has strong Inter-Symbol Interference (ISI) ability, ISI is the major interference besides noise in digital communications. COFDM by using the cyclic prefix has the strong ability of ISI.



Ease of use in combination with a variety of other methods, COFDM can be used as a modulation method, besides, it can be easily combined with many kinds of multiple access technology, providing access for multiple users at the same time. You can allow multiple users to simultaneously use the COFDM information technology for transmission.



Applications of COFDM Device
COFDM modulation solved the difficult problems of "Non-Line-of-Sight" and "Mobile" wireless broadband transmission when rate is over 2Mbps, so it has been widely applied in mobile communications, video transmission and monitoring systems such as digital audio broadcasting project (DAB), high-definition TV (HDTV) broadcasting, Health Care, Mobile Communication (CDMA + OFDM), wireless LAN (IEEE 802.1la), broadband wireless access (BWA), high-quality videos in real-time monitoring (, broadcasting, safety, maritime defense and other industries).



High-speed Real-time Mobile Wireless Transmission
The system can collect real-time emergency scene video, voice, data, etc. via a public communication network or private communication network system delivered to each commending center. Officers at all levels of command can understand the situation from the computer directly to take effective measures in real-time command. So it is widely applied to natural disasters emergency services. The system can help to save a lot of processing time and reduce the losses caused by disasters

COFDM Video Transmitter OEM Module 1080p FHD HDMI & CVBS Inputs AES256 Encryption 3



Real-time Maritime Wireless Transmission
Real-time monitoring of maritime wireless transmission are good for coastal defense, maritime, port inspection and other industries. Real time monitoring of maritime surveillance zone can be manipulated through the whole process with live video, voice, data and control. This system can help to make maritime commanding, monitoring with better efficiency.

COFDM Video Transmitter OEM Module 1080p FHD HDMI & CVBS Inputs AES256 Encryption 4



Live Broadcasting Video Transmission
When broadcast lively the sports games, the clarity of the video can be greatly improved by COFDM transmission.

COFDM Video Transmitter OEM Module 1080p FHD HDMI & CVBS Inputs AES256 Encryption 5



Public Mobile Communication System
IEEE 802.1la has already been eyeing on 5GHz band and provides high-speed data transmission by OFDM.

COFDM Video Transmitter OEM Module 1080p FHD HDMI & CVBS Inputs AES256 Encryption 6



As a conclusion, COFDM modulation solved the difficult problems of "Non-line of Sight" and "Mobile" wireless broadband transmission when speed is over 2Mbps, COFDM can capture videos at high speed and transmit high quality real time videos, make users gain exceptional freedom in news collecting, live broadcasting, real-time monitoring applications.
