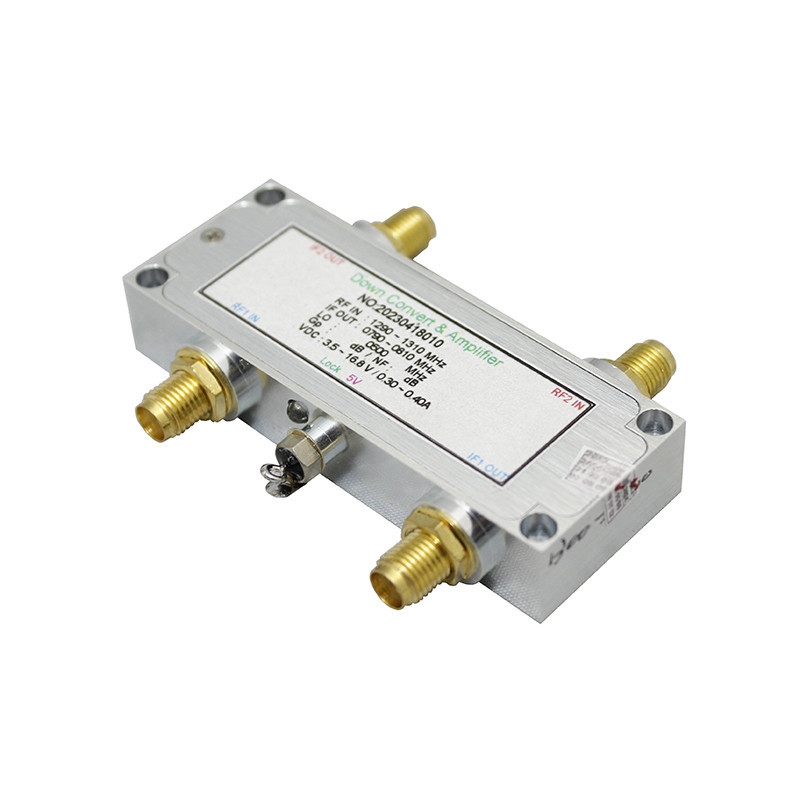

Dual Channel RF Downconverter 200 - 3500MHz 5VDC

1
MOQ
USD, RMB
Price
Dual Channel RF Downconverter 200 - 3500MHz 5VDC
Features Gallery Product Description Request A Quote
Features
Specifications
RF Conversion Channels: 2 Channels
Input Frequency: 200-3500MHz Customizable
Output Frequency: 100-3400MHz Customizable
Bandwidth: 15~20MHz
Power Supply: 3.3~5.5V (0.30~0.4A)
Carrier-to-noise Ratio: ≥52 DB
Highlight:

Dual Channel RF Downconverter

,

3500MHz RF Downconverter

,

5VDC RF Downconverter

Basic Infomation
Place of Origin: China
Brand Name: OEM
Certification: N/A
Model Number: DC-6625
Payment & Shipping Terms
Packaging Details: Brown Carton
Delivery Time: Negotiable
Payment Terms: T/T, PayPal
Supply Ability: 1000pcs/Month
Product Description

RF Downconverter Dual Channel 200-3500MHz 5VDC



Introduction

The DC-6625 is a dual channel RF down converter, it supports step down for 500/600/1000MHz or customization, featuring 15-20MHz bandwidth, high reliability, mini size and light weight.



Specification

■ RF Conversion Channels: 2 channels

■ Input Frequency Range: 1095~1100, 1190~1210, 1290~1310, 1390~1410, or customization (built-in filter, in-band frequency selection)

■ Input Level: -120 ~ 10dBm

■ Output Frequency Range: 775~790, 790~810, 790~810, 790~810MHz

■ Frequency Conversion Gain: 20~30dB

■ Frequency Conversion Accuracy: ≤±10KHz (LO adopts 26MHz 0.5ppm high stability temperature-compensated crystal oscillator)

■ Carrier-to-noise Ratio: ≥52 dB

■ Image Rejection: ≥60 dB

■ In-band Flatness: ≤0.5dB (8MHz bandwidth)

■ Output Frequency Bandwidth: 15~20MHz

■ Phase Noise:

≤-85dBc/Hz@10KHz

≤-110dBc/Hz@100KHz

≤-130dBc/Hz@1000KHz

■ RF Connector: SMA

■ Power Terminal: Core-through capacitor

■ Power Supply Mode: Feedthrough capacitor power supply

■ Power supply Voltage: 3.3~5.5V (0.30~0.4A)

■ Dimensions: 66mm×25mm×12mm
