Introduction
The MANE9302 is a rugged MANET (Mobile Ad Hoc Network) transceiver offering a full 20 watts high power output. Based on FPGA solution, it supports FHSS (Frequency Hopping) and IFS (Intelligent Frequency Selection). It is ideal for a variety of mesh deployments such as Public Security, Armed Police, Fire Control, and Robot. Its multi-hop ability can largely increase the transmission distance, each hop can cover 2-3km NLOS. The up to 56Mbps data rate allows it to transmit video, data and audio at the same time easily. The AES encryption ensures the security of data transmission.
Features
■ Supports Mobile Ad Hoc Network (MANET)
■ Frequency 1300-1500MHz (70MHz-6GHz customizable)
■ Supports FHSS and IFS (Intelligent Frequency Selection)
■ Supports AES256 Encryption
■ 2x40dBm power output
■ Data rate up to 56Mbps
■ Supports up to 32 nodes
■ Supports GPS/BD/GLONASS (GNSS)
■ Full transparent IP data transmission
■ Supports Web and PC software management
■ HDMI input as optional
■ Rugged IP67 housing
Specification
RF Parameters | |
Default Frequencies | 1300-1500MHz (70MHz-6GHz customizable) |
Channel Bandwidth | 2.5M/5M/10M/20MHz (40MHz optional) |
RF Waveform | TDD-COFDM (2T2R) |
Output Power | 2x40dBm, 1dBm step adjustable |
Receive Sensitivity | -100dBm@2.5MHz |
Modulation Type | BPSK/QPSK/16QAM/64QAM (adaptive) |
FHSS | Optional (>1000 hop/s) |
IFS | Optional |
Network Parameters | |
Network Size | Up to 32 nodes |
Multi-hop Capability | 15 hops (short message); 10 hops (voice); 8 hops (video) |
Range |
50-70km (Air-to-Ground LOS) 30-50 km (Ground-to-Ground LOS) |
Data rate | Up to 28Mbps@10MHz & 56Mbps@20MHz |
Delay | 7ms@2.5MHz/hop |
Movement Speed | >1000km/h |
Start Time | 27s |
Positioning | GPS/BD/GLONASS (GNSS) |
Network Access Time | <1s |
Network Extension | WIFI AP |
Electrical Parameters | |
Working Voltage | 100-240VAC |
Power Consumption | ≤937dBm |
Physical/Environment | |
Weight | 6.5kg |
Dimensions | 300*238*133mm |
IP Rating | IP67 |
Working Temp. | -40°C~70°C |
Interface | |
LAN Interface | *1 |
RS232 | *1 |
Voice Interface | PTT Mic (7-pin LEMO connector*1) |
Video Interface | HDMI*1 |
Interface Description

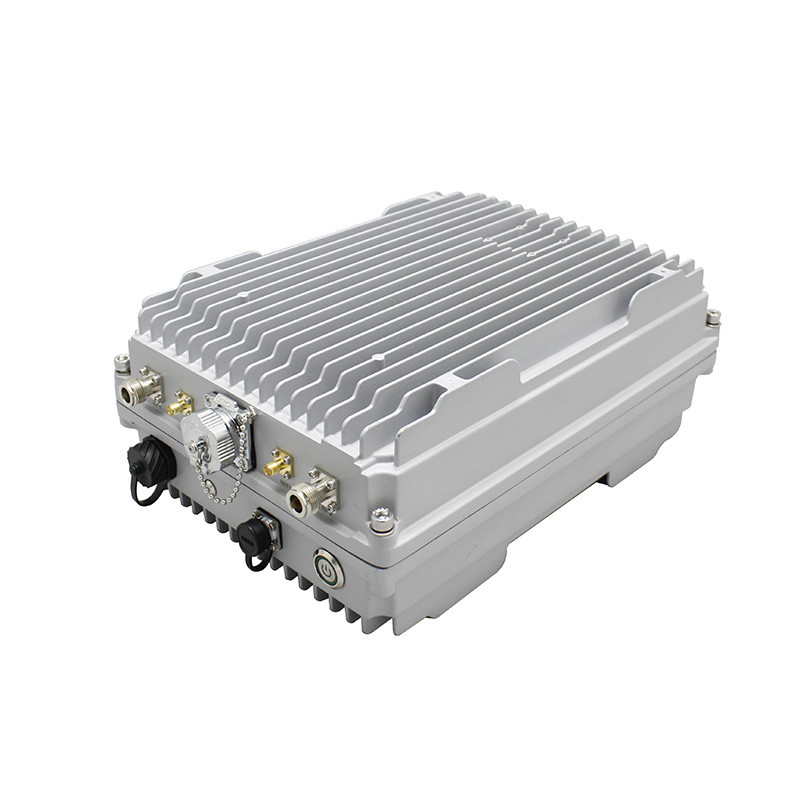

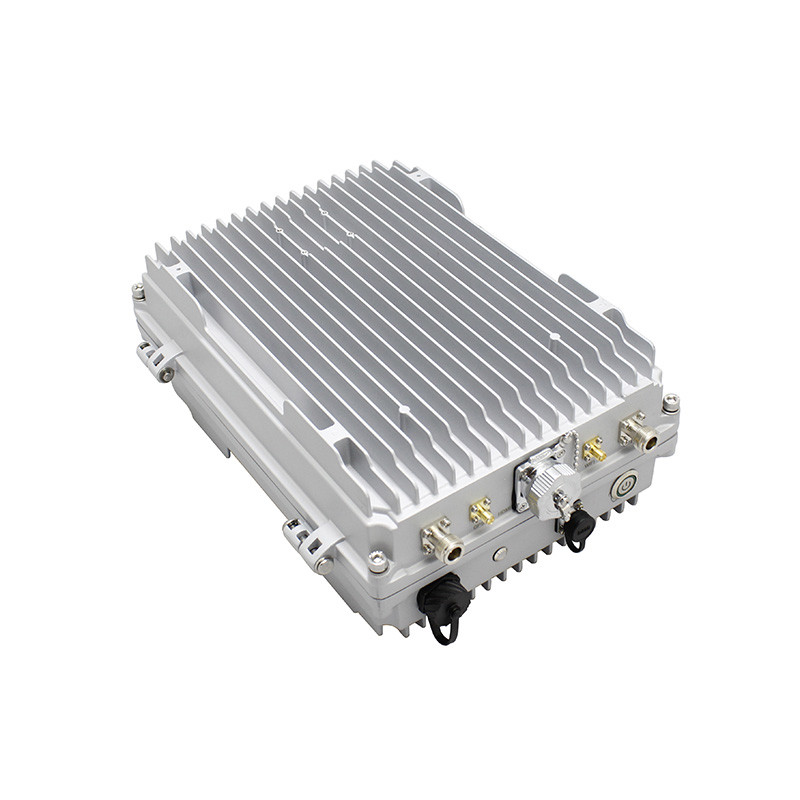

① MESH antenna interface-1, N-F
② GPS/BD antenna interface, SMA-F
③ HDMI input interface type A (Optional)
④ WIFI antenna interface-1, SMA-F
⑥ MESH antenna interface-2, N-F
⑦ LAN interface, RJ45
⑧ MESH signal indicator
SNR | Link Quality | Topology Color |
SNR ≥ 17 | Excellent | Deep Green |
12 ≤ SNR < 17 | Good | Light Green |
7 ≤ SNR <12 | Fine | Yellow |
2 ≤ SNR <7 | Medium | Orange |
-10 < SNR <2 | Bad | Red |
SNR = -10 | Disconnected | N/A |
⑨ Power input port, 3 pin
⑩ Power push button
