UAV Drone Auto Tracking Antenna System 20km 50km 100km



The LKAV-3712 is a ground terminal designed for long distances video data communication. It has built-in GPS tracking module and wireless communication module. The airborne GPS module feeds GPS/BD coordinate information to the wireless communication module through serial port for transparent transmission. The ground terminal calculates the pointing angle based on its own latitude and longitude and that of the airborne module. This ensures your ground panel antenna is always aligned with your airborne module, maintaining the best possible wireless reception and significantly increasing the range. It adopts 1T2R dual-antenna transmission, with a high-gain directional antenna for sending and receiving, and an omnidirectional antenna for receiving, which can transmit signals more effectively.



■ 316mw power output for up to 20km range (2W/10W output as optional)

■ With inertial and magnetic dual compasses to achieve high-precision pointing

■ Automatic calibration algorithm at startup

■ Automatically starts tracking after receiving valid GPS data

■ With main and sub (LoRa) dual links to ensure timely refreshing of GPS data

■ Using 1T2R dual-antenna for more reliable transmission

■ Supports tripod and suction cup installation

■ High-quality and powerful steering gear

■ 360-degree twist-free slip ring

■ Supports alignment for simultaneous movement of the ground and airborne ends

■ IP65 rated for use in harsh environments

■ Portable design and simple operation


Panel Description

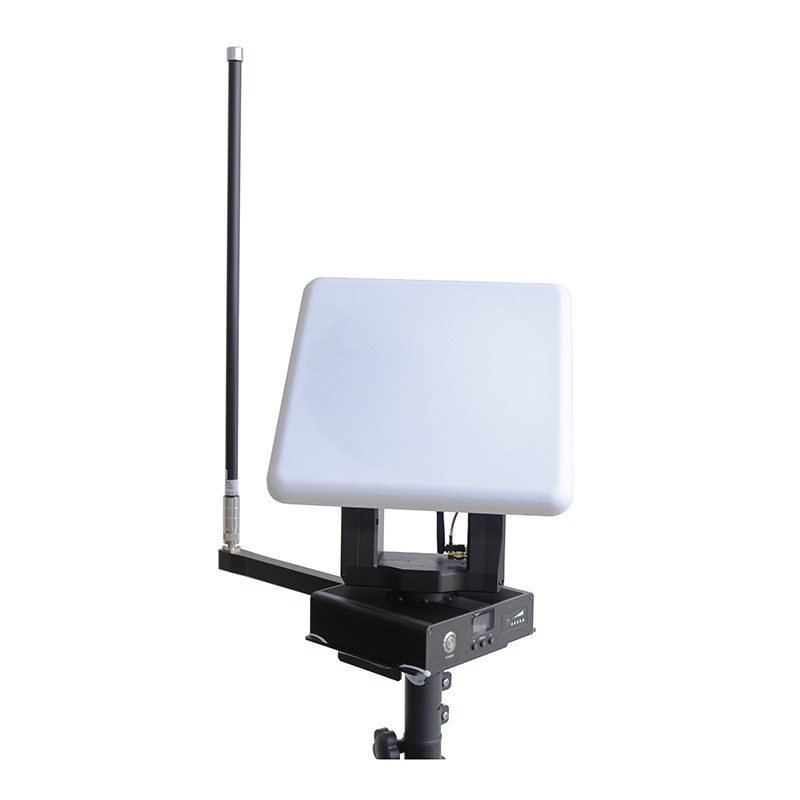

UAV Drone Auto Tracking Antenna System 50km 100km 200km 0

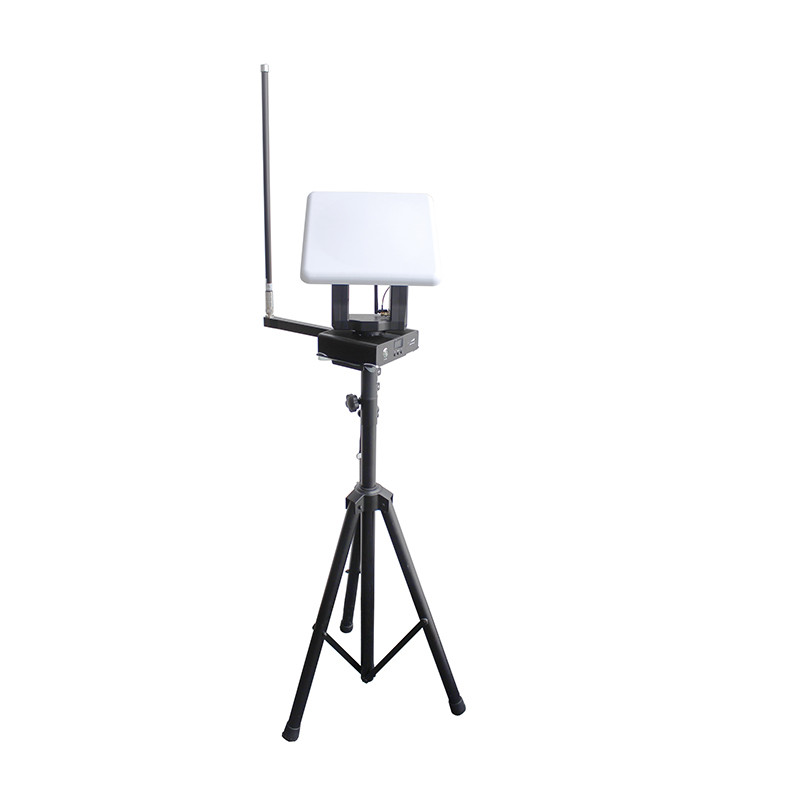

UAV Drone Auto Tracking Antenna System 50km 100km 200km 1

① GPS Antenna

② Directional panel antenna interface, SAM F

③ LoRa link antenna interface, SMA F

④ Power button

⑤ OLED screen (1.3”) and configuration buttons (up, down and menu)

⑥ Battery indicator

⑦ Omnidirectional antenna interface, SAM F

⑧ LAN & Serial port – 9 pin aviation connector (4 pins for LAN, 3 pins for TTL and 2 pins not used)

⑨ DC power input interface, waterproof



RF Characteristics
Working Frequency 800MHz, 1.4GHz, 2.4GHz
Channel Bandwidth 3M/5M/10M/20MHz
RF Channel 1T2R
Output Power 316mw 20km (2W/50km, 10W/100km as optional)
PTZ Characteristics
Motor Torque 30N*m
Rotation Angle 360° horizontally, 90° vertically
Angle Accuracy ±2°
Maximum Motor Speed 0.13s/60°
Maximum Payload 1.5kg (Panel Antenna)
RF Interface N*1, SMA*2
LAN Interface Waterproof aviation connector
Power Interface Waterproof DC connector
Network Characteristics
Transmission Range 20km, 50km, 100km, 100+km (Customized on demand)
Throughput 30Mbps
Encryption AES128
Physics/Environment Characteristics
Dimensions 306*396*416mm
Weight 4.2kg (w/ battery & antenna)
Working Temp. -20°C ~ +60°C
IP Level IP65
Electrical Characteristics
Power Supply 12V DC
Power Consumption <30W
Battery Capacity 14Ah/12V
Battery Life Around 4 hours


Package Content

For reference only, subject to change for each project.

Item Name Model Qty Remark
1 Ground Terminal LKAV-3712 1
2 Directional Panel Antenna N-M, 1.4GHz,15dBi 1
3 Omnidirectional Antenna N-F, 1.4GHz,5dBi 1
4 Lora Antenna SMA M 1
5 Power Adapter 12.6V/5A 1
6 SMA-M to N-M feeder cable   1
