LKAV1707 20-30km 43dBm HDMI/SDI CVBS COFDM Video Transmitter Radio

1
MOQ
USD, RMB
Price
LKAV1707 20-30km 43dBm HDMI/SDI CVBS COFDM Video Transmitter Radio
Features Gallery Product Description Request A Quote
Features
Specifications
Frequency: 200-2700MHz
Power Output: High Power
RF Bandwidth: 2/4/6/8MHz (adjustable)
Encryption: AES256
Power Supply: AC 100-240V
Link Latency: 60-110ms
Highlight:

wireless audio video sender

,

cofdm video transmitter

Basic Infomation
Place of Origin: Shenzhen China
Brand Name: OEM / LinkAV
Certification: CE
Model Number: LKAV1707
Payment & Shipping Terms
Packaging Details: Brown Carton
Delivery Time: Negotiable
Payment Terms: T/T, PayPal, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 1000pcs/Month
Product Description

LKAV1707 20-30km High Power HDMI/SDI CVBS COFDM Video Transmitter Radio



Introduction

The LKAV-1707 is a high power (43dBm) 2U rack-mount feature-rich COFDM FHD video transmitter specially designed for the demanding broadcast and video surveillance fields, it comes with a 2U housing and supports HDMI (SDI) & CVBS inputs, is the ideal solution for establishing rugged wireless video links in all environments including high-speed mobile and urban environments.



Features

■ Advanced COFDM modulation and H.264 encoding

■ Supports HDMI/SDI and CVBS dual inputs

■ 43dBm high output power (adjustable)

■ Up to 5-15km NLOS (urban) transmission distance

■ 60-100ms low system latency

■ Rack-mounted design for easy installation

■ Rugged aluminum alloy housing



Specification

Transmission Characteristics
Modulation COFDM
Modulation Type QPSK(4QAM), 16QAM, 64QAM
Working Frequency 300MHz-2.7GHz (Default 700MHz)
RF Output Power 43dBm (Adjustable)
RF Bandwidth 2/4/6/8MHz (Adjustable)
FEC 1/2, 2/3, 3/4, 7/8
Guard Interval 1/4, 1/8, 1/16, 1/32
Data Characteristics
Video Input

HDMI/SDI: 1080P/1080i/720P/720i…

AV: NTSC(720x480) / PAL(720x576)

Video Compression H.264
RF Interface N F head
Parameter Control Method USB Programmer
Encryption AES256 (User-defined password)
Electrical Characteristics
Working Voltage AC 220V
Physical Characteristics
Working Environment -10℃~70℃
Dimensions 420*335*88.8mm (2U)
Weight 7.1kg

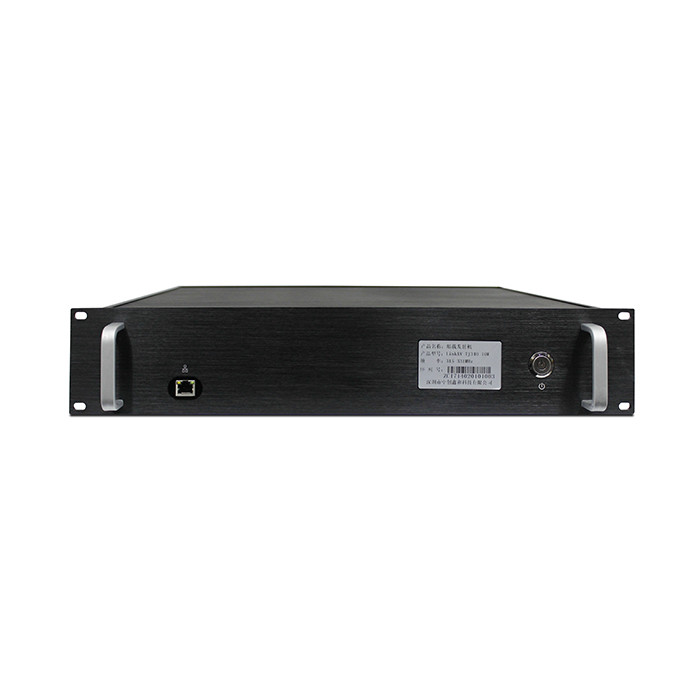

Front Panel

LKAV1707 20-30km 43dBm HDMI/SDI CVBS COFDM Video Transmitter Radio 0

① Programmer Panel

② Power Button

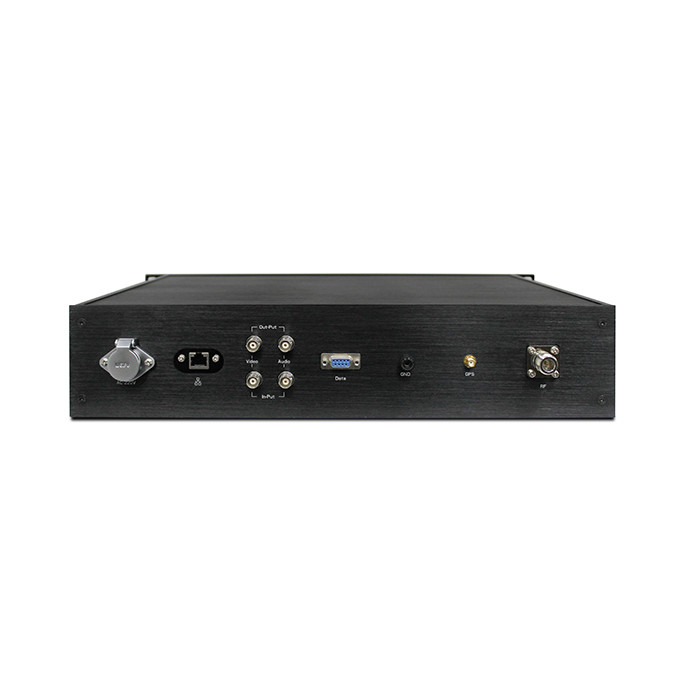

Rear Panel

LKAV1707 20-30km 43dBm HDMI/SDI CVBS COFDM Video Transmitter Radio 1

① Power Input Interface – AC 220V

② Reserved Interfaces

③ HDMI Input Interface (SDI as Optional)

④ GND Interface

⑤ Antenna Interface – Type N
