MANET OEM Board AES128/256 Enryption
Introduction

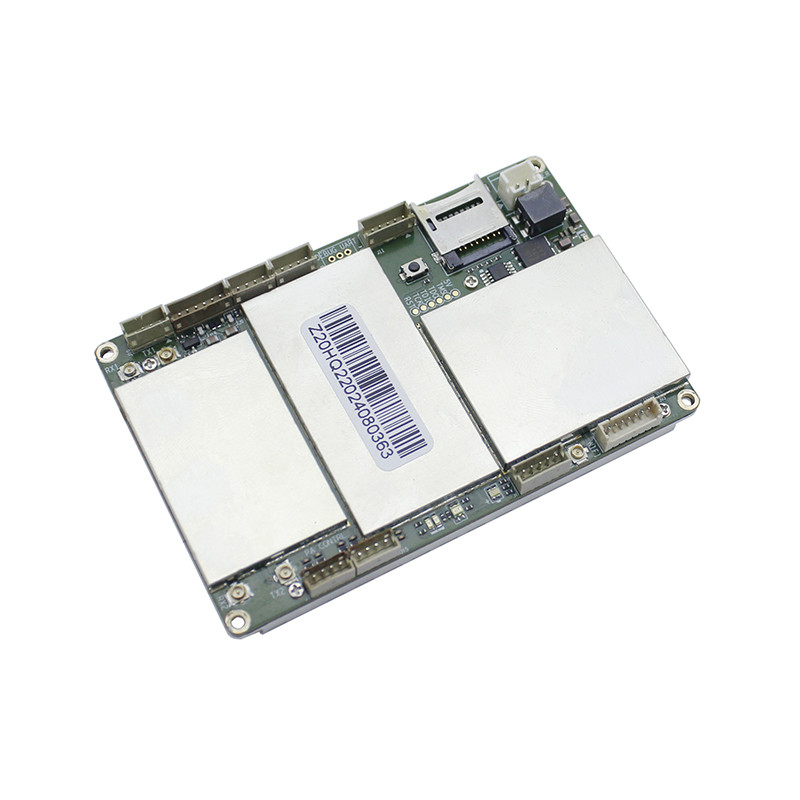

The MANET6315-W is an IP MESH module using FPGA solution, employing a Software Defined Radio (SDR) architecture. It mainly implements the physical layer (PHY), media access control (MAC), link protocols, and self-organizing network protocols. The core communication module supports LAN and asynchronous serial interfaces, as well as external RS-232 interface GPS BD modules. It can be used in various forms of self-organizing network products, including fixed, vehicle-mounted, airborne, backpack-mounted, and handheld types.
Features
■ 70MHz~6GHz frequency customizable
■ Supports MIMO dual-channel Ad Hoc network
■ Data rate up to 28Mbps
■ Supports COFDM and DTDMA waveform
■ Supports WebUI management
■ Light weight and compact size
■ API file is available for secondary development
■ AES128/AES256 encryption as optional
Specification
| RF Parameters |
| Frequency |
325MHz~3.8GHz (70MHz~6GHz as optional)
(1Hz per step adjustable)
|
| Receive Sensitivity |
≤-100dBm |
| RF Bandwidth |
2.5/5/10MHz |
| Network Parameters |
| Data Rate |
28Mbps@10MHz |
| Operational Voice |
4.8kbps |
| Frequency Hopping |
1000 hops/s |
| Encryption |
AES128/AES256 |
| Physical/Environmental |
| Size |
87mm×55mm×12mm |
| Weight |

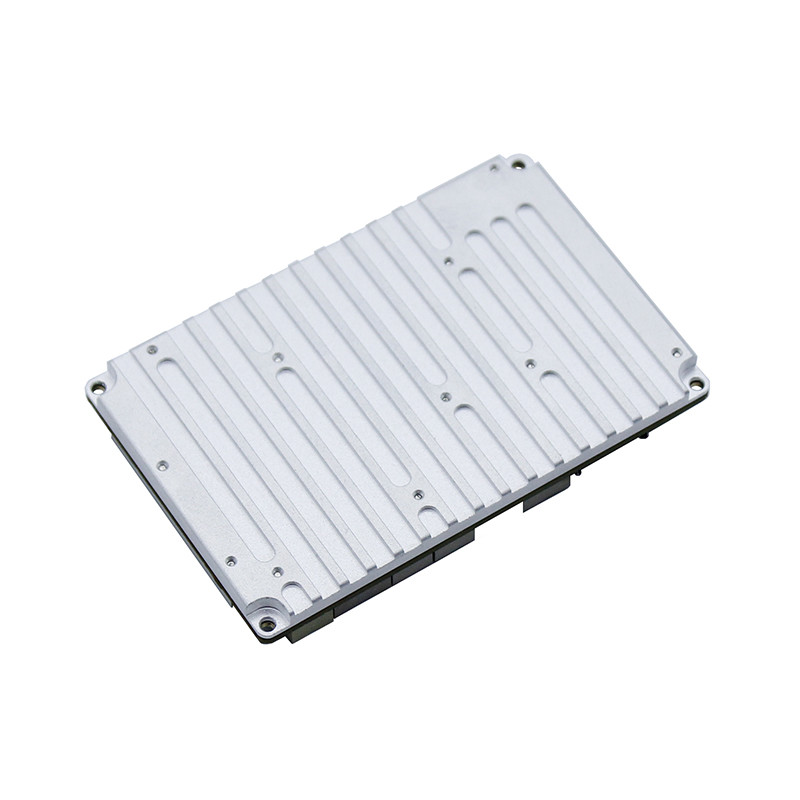

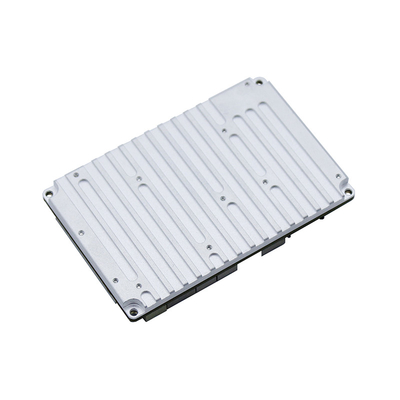

65g (w/ Shielding Enclosure) |
| Working Temperature |
-30°C～+65°C |
| Electrical Parameters |
| Power Supply |
DC 7V～15V@1A |
| Interfaces |
| RF interface |
IPX ×4(2x Tx, 2x Rx) |
