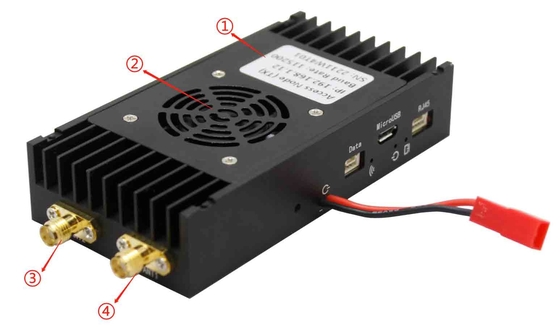

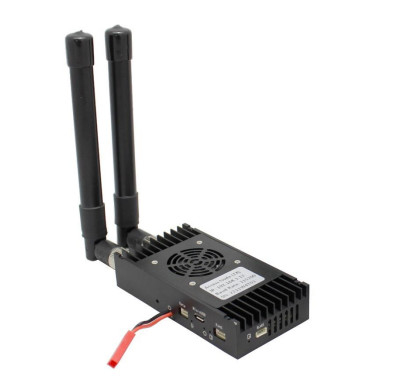

LKAV3622 2w 30km Triple Frequency Video IP MESH Data Link Module For UAV Drone Communication

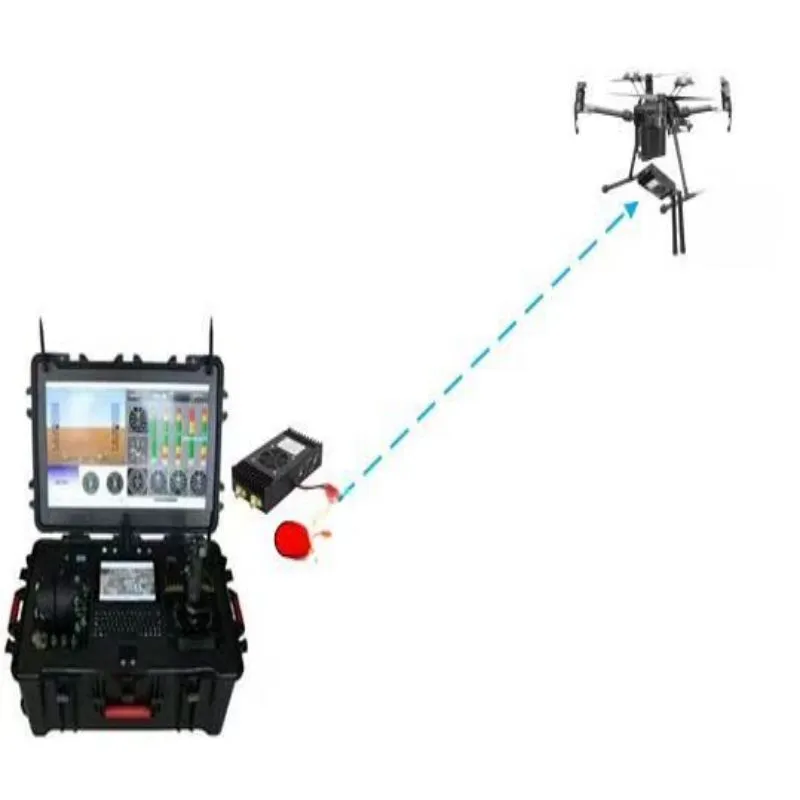

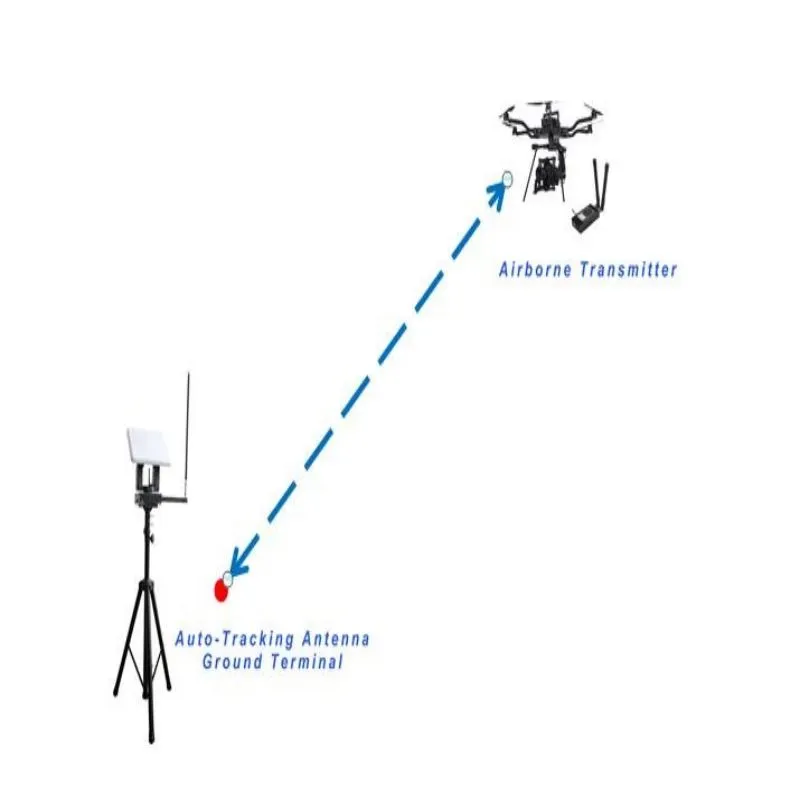

The LKAV3622 is a compact and portable airborne radio with HD and stable image quality. It adopts the current leading OFDM modulation technology, allowing for capturing high-quality images in high-speed motion and real-time transmission in non-line-of-sight (NLOS) conditions. Encryption is applied to the images and data during transmission, supporting a transmission rate of 30Mbps and a range of 30KM for air-to-ground transmission. It is well-suited for long-term and high-data-flow wireless transmission applications, such as UAVs, USVs, and robots.

* Range no less than 30 km(LOS)
* Supports 3 bands (800MHz/1.4GHz/2.4GHz)
* IP transparent data transmission
* Compact size and light weight
* Rugged aluminum alloy housing
* Low power consumption
* With TTL and RJ45 port

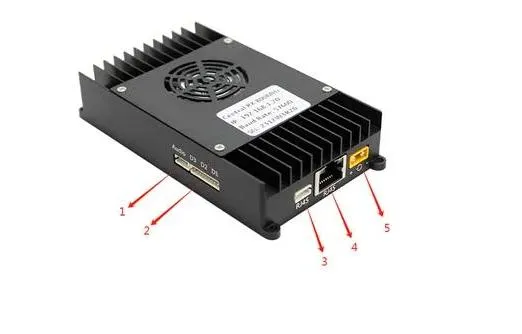

1. Audio Interface
2. RA232 Interface*3
3. RJ45 Interface-1
4. RJ45 Interface-2
5. Power Input Interface

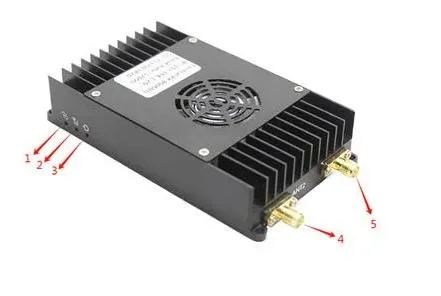

1. Link Status Indicator - When the device works as an access node, if the connection with the central node is normal, the indicator will flash. When the device works as a central node, this indicator will be always on.
2. Signal Indicator
3. Power Indicator
4. RF Antenna-2
5. RF Antenna-1

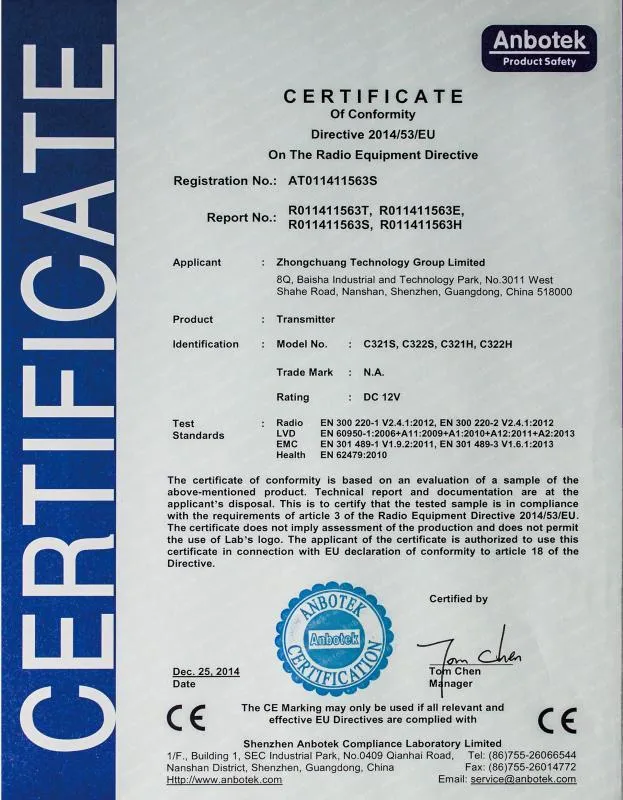

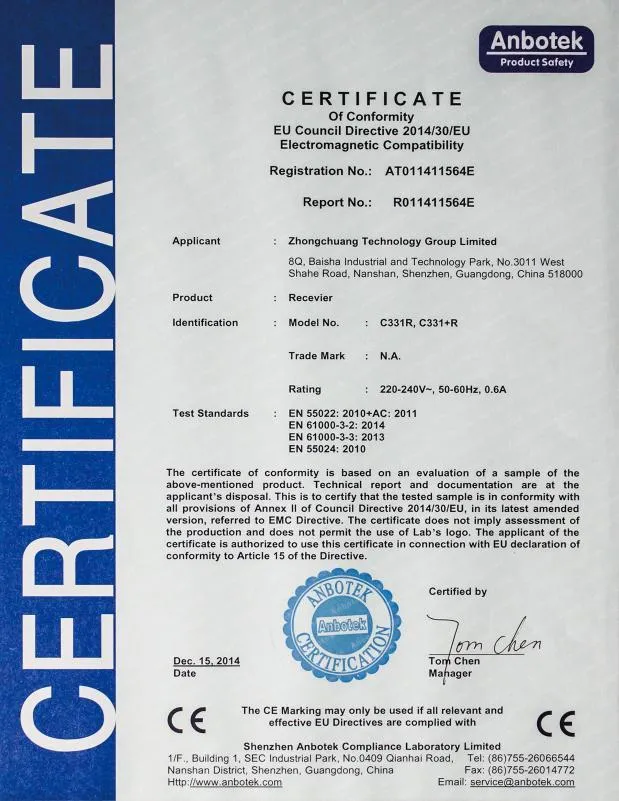

Linkav technology Co.,Ltd has multiple patents with independent intellectual property rights, has established a sound quality system and national standard system that comply with ISO9001 standards, and strictly produces products in accordance with national standards and internationally recognized standards such as CCC, CE, FCC, etc. It has obtained the Radio Transmission Equipment Model Approval Certificate issued by the Ministry of Industry and Information Technology of China and has passed the wireless product testing certification of the Ministry of Public Security.
