Name: LKAV3618 4w Long Distance IP MESH Radio Data Link Module For UAV Drone Communication
Brand: LinkAV Technology Co., Ltd
SKU: LKAV3618
Price: 5,249.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Housing: Aluminium

Frequency: 806-825MHz/1403-1444MHz/2408-2480MHz

Output Power: 4w

Encryption: AES128 (user-defined Password)

Link Latency: 10ms

Video Input: IP

Application: UAV Communication

Highlight:

Data Link Module For UAV

Data Link Module For Drone

IP MESH UAV Data Link

Basic Infomation

Place of Origin: Shenzhen China

Brand Name: OEM / LinkAV

Certification: CE，FCC

Model Number: LKAV3618

Payment & Shipping Terms

Packaging Details: Brown Carton

Delivery Time: Negotiable

Payment Terms: T/T, PayPal, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability: 1000pcs/Month

Gallery

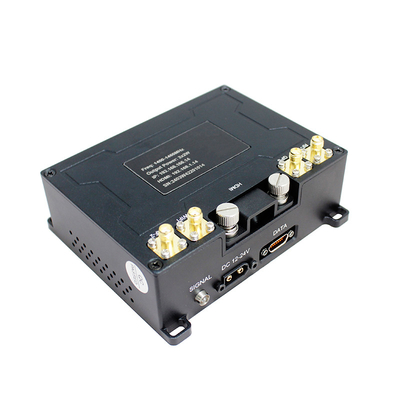

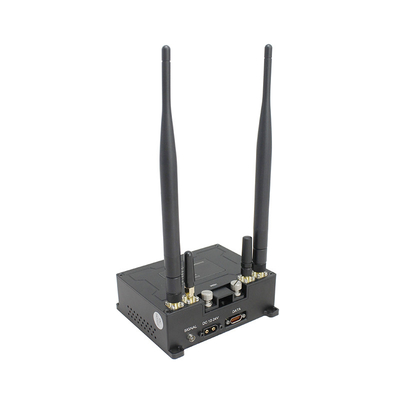

LKAV3618 4w Long Distance IP MESH Radio Data Link Module For UAV Drone Communication

Product Description

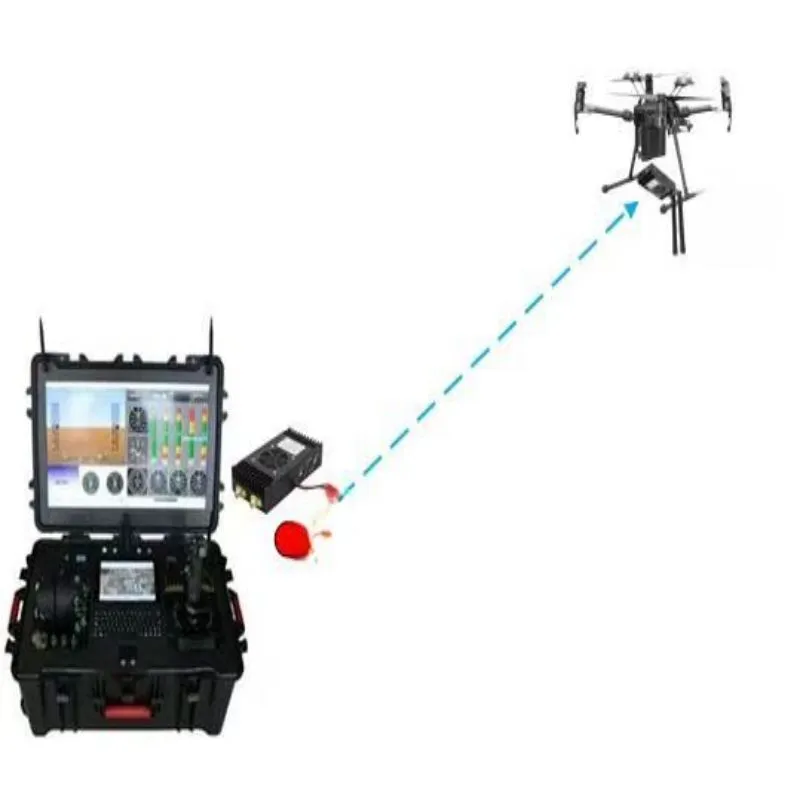

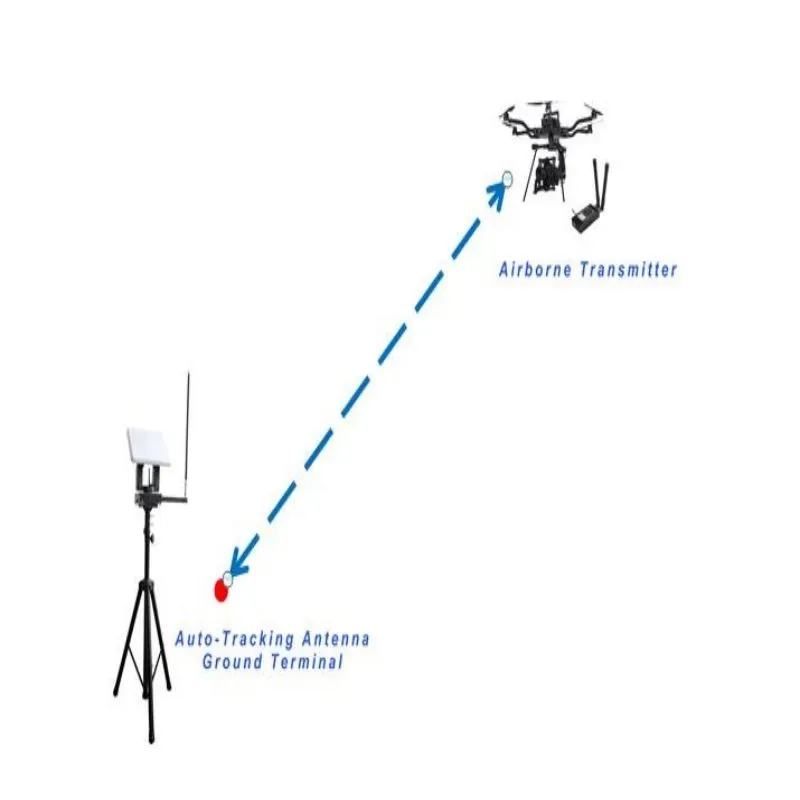

The LKAV3618 is an airborne Mesh radio that utilizes an FPGA solution. It supports adaptive frequency hopping and selection, automatically choosing the optimal frequency in the presence of electromagnetic interference. This enables broadband network self-organization and transmission in complex scenarios. It can be used in various communication combinations for different usage scenarios, such as on moving UAVs or USVs, allowing for easy plug-and-play operation without the need for configuration or parameter changes. It is primarily used for multimedia interconnection between drones and base stations, as well as serving as a Mesh rela

* Data rate up to 56Mbps
* Full transparent IP data transmission
* With HDMI input
* Supports GPS/BD
* Supports up to 10nodes(Customizable)
* With TTL and LAN interface

RF Parameters
Default Frequencies	1300-1500MHz (70MHz-6GHz customizable)
Channel Bandwidth	2.5M/5M/10M/20MHz (40MHz optional)
RF Waveform	TDD-COFDM (2T2R)
Output Power	2x2W, 1dBm step adjustable
Receive Sensitivity	-100dBm@2.5MHz
Modulation Type	BPSK/QPSK/16QAM/64QAM (adaptive)
FHSS	Optional (>1000 hop/s)
IFS	Optional
Network Parameters
Network Size	Up to 10nodes(Customizable)
Multi-hop Capability	15 hops (short message); 10 hops (voice); 8 hops (video)
Range	30-49km (Ground-to-Ground LOS)
Data rate	Up to 28Mbps@10MHz & 56Mbps@20MHz
Delay	7ms@2.5MHz/hop
Movement Speed	>1000km/h
Start Time	27s
Positioning	GPS/BD/GLONASS (GNSS)
Network Access Time	<1s
Network Extension	WIFI AP
Electrical Parameters
Working Voltage	12-36V DC
Power Consumption	≤237dBm
Physical/Environment
Weight	475g
Dimensions	1209040mm
Working Temp.	-40°C~70°C
Interface
LAN Interface	*1
Serial Interface	RS232*1 (Or TTL)
Video Interface	Mini HDMI*1

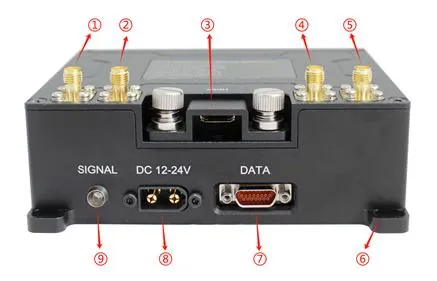

4W Long Distance Video Communication Module for Airborne Drone Data Link

MESH antenna interface-2, SMA F
WIFI/LoRa antenna interface, SMA F
HDMI input interface, Mini HDMI
GPS antenna interface, SMA F
MESH antenna interface-1, SMA F
Mounting hole x4
LAN/TTL interface (J30J-15TJ connector, PIN 1, 2, 3 and 4 for LAN, PIN 5, 6 and 7 for TTL GND, TX and RX)
Power input interface (XT60)
Signal Indicator

It is widely used in important departments such as security, civil air defense, civil defense, fire protection, emergency rescue departments and forest fire prevention, transportation, customs, railways, oil fields, mines, water conservancy, electric power, finance, live broadcast of TV stations, etc.

Linkav technology Co.,Ltd has multiple patents with independent intellectual property rights, has established a sound quality system and national standard system that comply with ISO9001 standards, and strictly produces products in accordance with national standards and internationally recognized standards such as CCC, CE, FCC, etc. It has obtained the Radio Transmission Equipment Model Approval Certificate issued by the Ministry of Industry and Information Technology of China and has passed the wireless product testing certification of the Ministry of Public Security.
