LKAV9401 UAV Data Link Frequency Hopping MANET AES256 Long Distance

2
MOQ
USD, RMB
Price
LKAV9401 UAV Data Link Frequency Hopping MANET AES256 Long Distance
Features Gallery Product Description Request A Quote
Features
Specifications
Frequency: 1300-1500MHz (70MHz-6GHz Customizable)
Bandwidth: 2.5/5.0/10.0/20.0MHz
Output Power: 2x40dBm
Receiving Sensitivity: -100dBm@2.5MHz
Max Throughput: 56Mbps
RF Waveform: TDD-COFDM (2T2R)
Application: Drone VTOL FPV UAV
Highlight:

Long Distance UAV Data Link

,

Frequency Hopping UAV Data Link

,

MANET AES256 UAV Data Link

Basic Infomation
Place of Origin: Shenzhen China
Brand Name: OEM / LinkAV
Certification: CE
Model Number: MANET9401
Payment & Shipping Terms
Packaging Details: Brown Carton
Delivery Time: Negotiable
Payment Terms: T/T, PayPal, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 1000pcs/Month
Product Description

Product Description

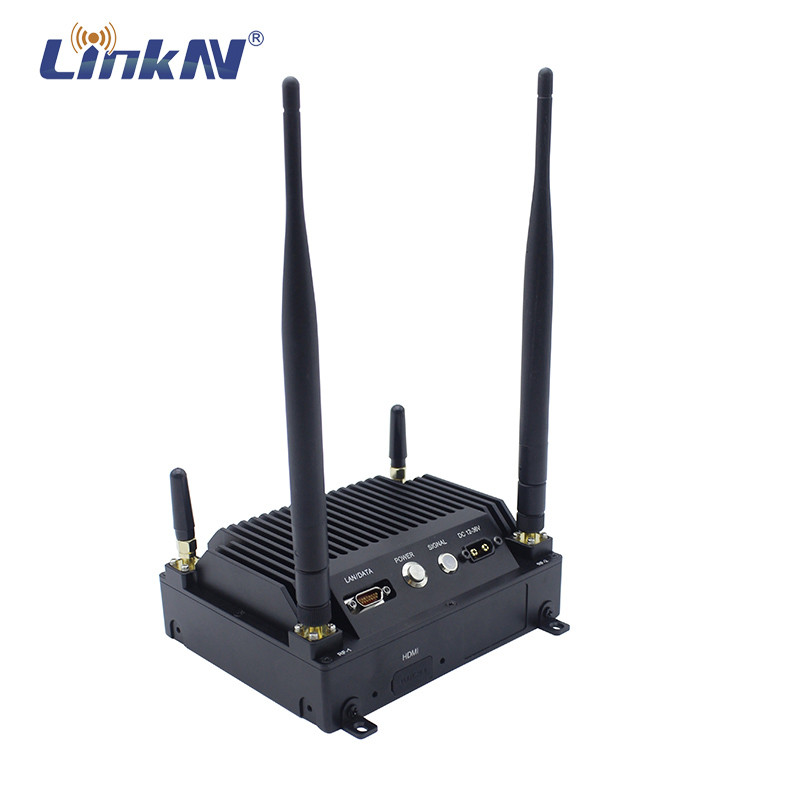

The LKAV9401 is a rugged MANET (Mobile Ad Hoc Network) transceiver special designed for UAV video data transmission. Based on FPGA solution, it supports FHSS (Frequency Hopping) and IFS (Intelligent Frequency Selection). Offering a full 4 watts power output. It is ideal for a variety of mesh deployments such as Public Security, Armed Police, Fire Control and . Its multi-hop ability can largely increase the transmission distance, each hop can cover 50-120km air-to-air (LOS). The up to 56Mbps data rate allows it to transmit video, data and audio at the same time easily. The AES256 encryption ensures the security of data transmission.

Features

1.Supports Mobile Ad Hoc Network (MANET)

2.Frequency 1300-1500MHz (70MHz-6GHz customizable)
3.Supports FHSS and IFS (Intelligent Frequency Selection)
4.Supports AES256 Encryption
5.2x2W power output
6.Data rate up to 56Mbps
7.Supports up to 32 nodes
8.Supports GPS/BD/GLONASS (GNSS)
9.Full transparent IP data transmission
10.Supports WebUI management
11.With HDMI input

Specifications

RF Parameters
Default Frequencies 1300-1500MHz (70MHz-6GHz customizable)
Channel Bandwidth 2.5M/5M/10M/20MHz (40MHz optional)
RF Waveform TDD-COFDM (2T2R)
Output Power 2x2W, 1dBm step adjustable
Receive Sensitivity -100dBm@2.5MHz
Modulation Type BPSK/QPSK/16QAM/64QAM (adaptive)
FHSS Optional (>1000 hop/s)
IFS Optional
Network Parameters
Network Size Up to 32nodes(Customizable)
Multi-hop Capability 15 hops (short message); 10 hops (voice); 8 hops (video)
Range 30-Long Distance (Ground-to-Ground LOS)
70-120km(Air to air LOS)
Data rate Up to 28Mbps@10MHz & 56Mbps@20MHz
Delay 7ms@2.5MHz/hop
Movement Speed >1000km/h
Start Time 27s
Positioning GPS/BD/GLONASS (GNSS)
Network Access Time <1s
Network Extension WIFI AP
Electrical Parameters
Working Voltage 12-36V DC
Power Consumption ≤237dBm
Physical/Environment
Weight 820g
Dimensions 142*116*40mm
Working Temp. -40°C~70°C
Interface
LAN Interface *1
Serial Interface RS232*1 (Or TTL)
Video Interface Mini HDMI*1

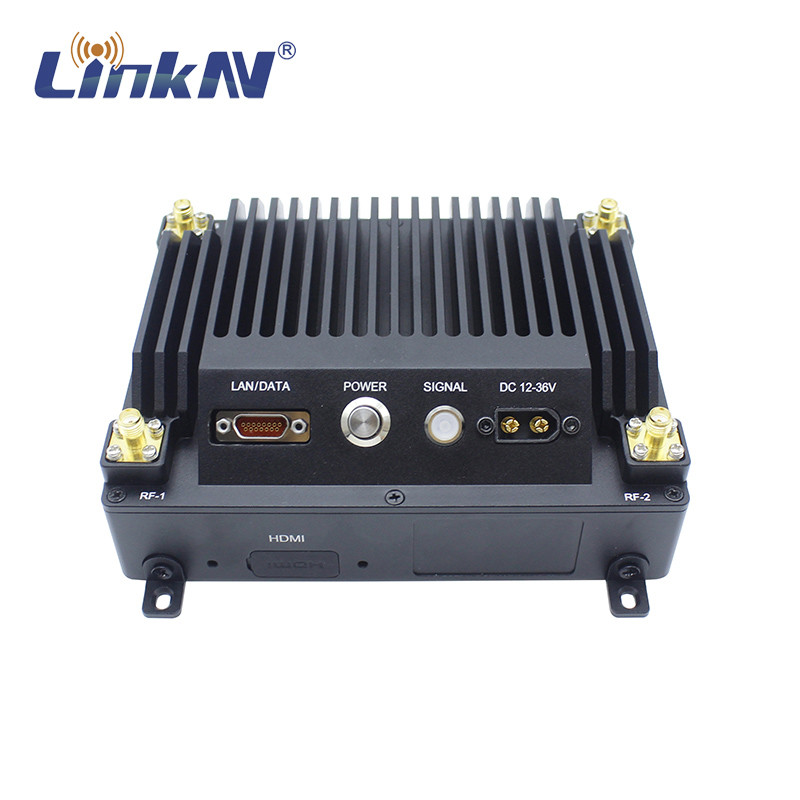

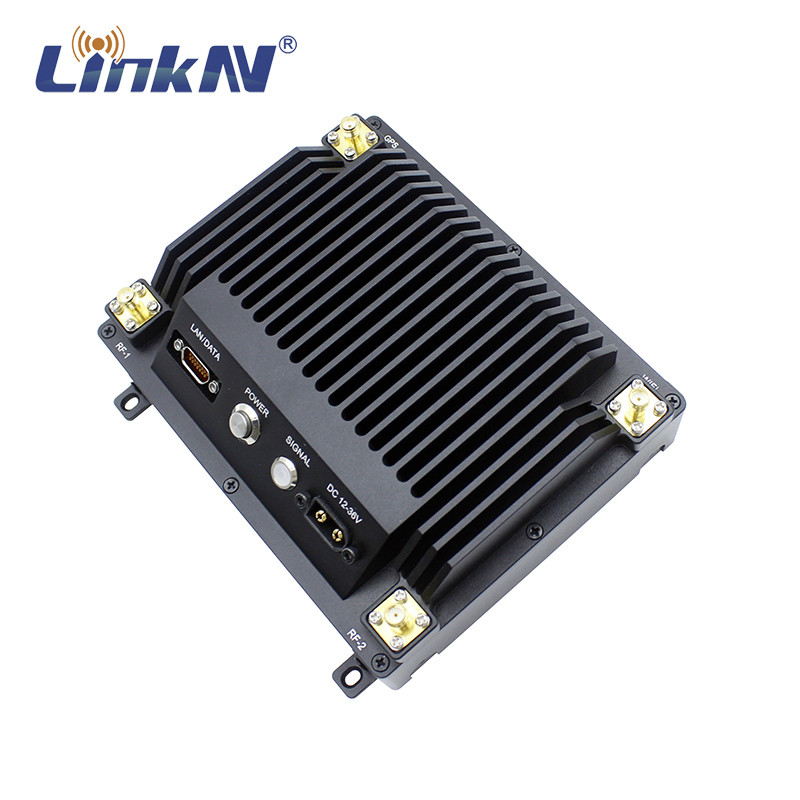

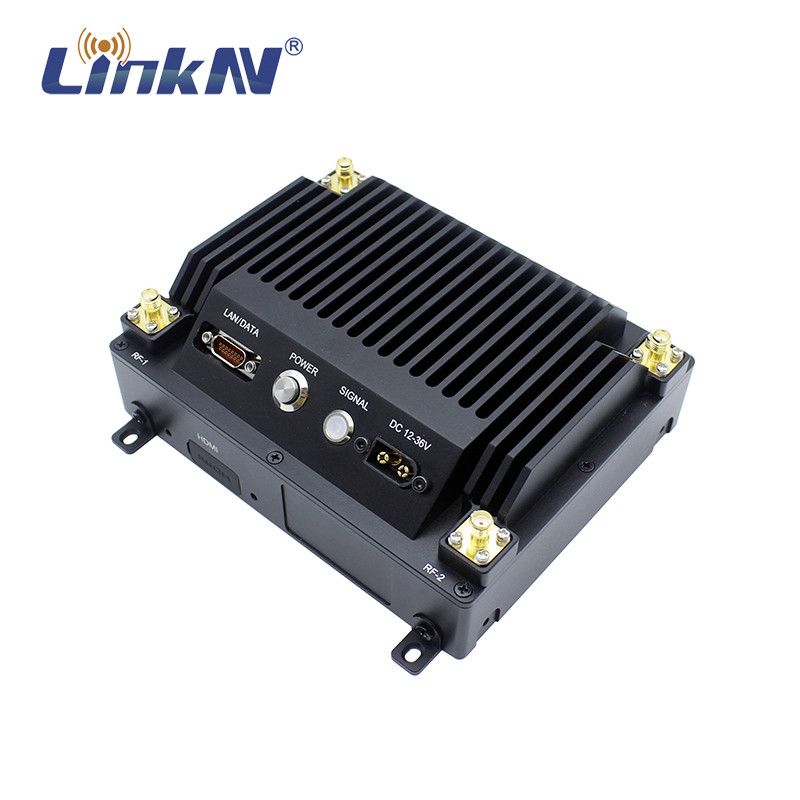

Panel Description

4W 40km Rugged MIMO Fhss Ifs Video IP Mesh Radio Drone Communication Module
1. GPS antenna interface,SMA F
2. WIFI/LoRa antenna interface, SMA F
3. MESH antenna interface-2, SMA F
4. Mounting bracket x4
5. Nameplate
6. Power input interface (XT60)
7. Signal indicator
8. Power button
9. HDMI input interface, Mini HDMI
10. LAN/TTL interface (J30J-15TJ connector, PIN 1, 2, 3 and 4 for LAN, PIN 5, 6 and 7 for TTL GND, TX and RX)
11. MESH antenna interface-1, SMA F






4W 40km Rugged MIMO Fhss Ifs Video IP Mesh Radio Drone Communication Module

Application

It is widely used in important departments such as security, civil air defense, civil defense, fire protection, emergency rescue departments and forest fire prevention, transportation, customs, railways, oil fields, mines, water conservancy, electric power, finance, live broadcast of TV stations, etc.
