LKAV1649 COFDM HDMI CVBS VIDEO TRANSMITTER MODULE
Introduction

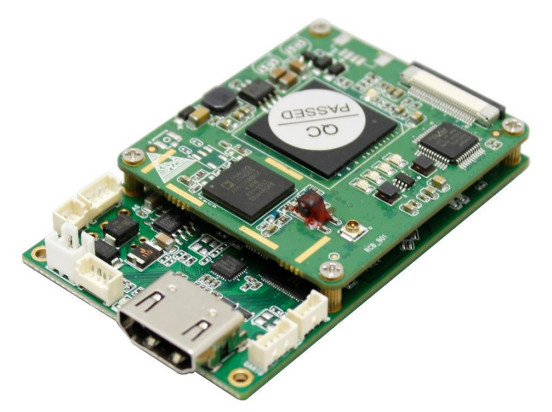

The TX1649 is a low latency mini COFDM video transmitter board module designed to capture
real-time, high-quality video. It features HDMI & CVBS inputs. Providing long range, reliable
HD video transmission
Features
◼ HDMI and CVBS dual video inputs
◼ 1080p up to 60fps
◼ 200MHz-2.7GHz wide range frequency
◼ 180ms low end-to-end latency
◼ H.264 CODEC
◼ AES256 encryption
◼ Mini size and light weight
Specification
| Modulation |
QPSK(4QAM),16QAM,64QAM |
| Frequency |
200MHz-2.7GHz(Default 700MHz) |
| Output power |
1watts |
| RF Bandwidth |
2/4/6/8MHz |
| FEC |
1/2,2/3,3/4,5/6,7/8 |
| Guard Interval |
1/4,1/8,1/16,1/32 |
| Video input |
HDMI:1080p/1080i |
| CODEC |
H.264 |
| RF Interface |
IPEX Female |
| Parameter Control |
Using the USB programmer |
| Encryption |
AES256(User defined password) |
| Working Voltage |
DC 7v-30V(12V Optimal) |
| Working Current |
<0.2A(@12V) |
| Power Consumption |
2.4W |
| Weight |
21g |
| Dimensions |
70*45*11mm |
| Working Temp |
-20°C+70°C |

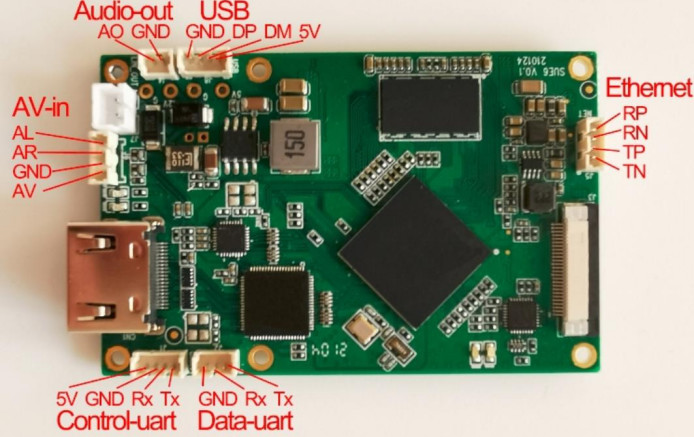

Interface Description

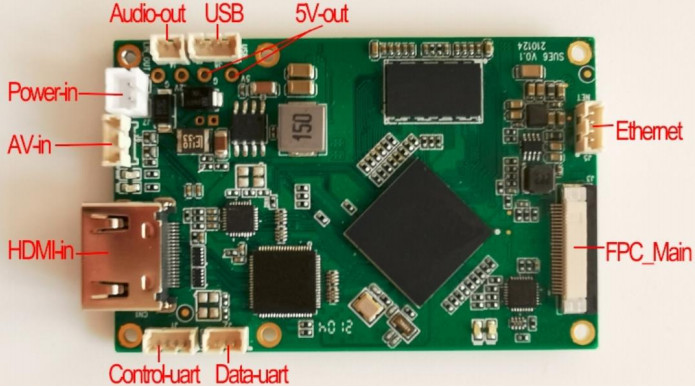

HDMI-in: HDMI input.
AV-in:CVBS input, 4-pin
Power-in:Power input, DC 7-30V, 2-pin.
Audio-out:Audiooutput, line out.

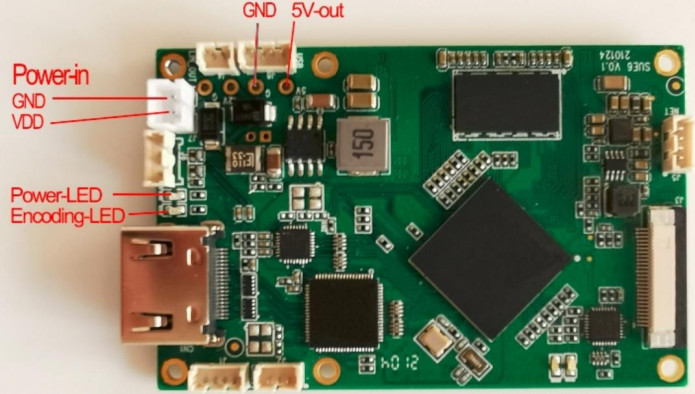

Power-LED: Power indicator, red, always onafter power up.
Encoding-LED:Video encoding indicator, green, itwill flash when video encoding is in progress. If this light does not flash, it means the moduleis not performing video encoding (for example, the front-end video capture fails)
AV-in:AL,AR, GND,AV.
Control-UART:Serial portfor board parameter configuration, 4-pin 1.25mm pitch socket. It can be connected totheUSB programmer or other upper computers.
Data-UART:Data serial port, 3-pin1.25mm pitch socket. Baud rate and other parameters can be configured through the CFG-UART. When docking the wireless transmission module, the data serial port is used for one-way transparent data transmission.
USB: 4pin1.25mm pitch socket, used for software upgrade and maintenance..
