Long-Range LKAV6101 AES256 20km MIMO UAV Data Link PCBA for Customer Requirements
Introduction
LKAV-6101 is a COFDM transmitter module that supports standard definition video
input, realizing H.265 compression encoding, NTSC, PAL, and input mode adaptation.
Specification
| Frequency |
50MHz-6GHz Customized |
| RF Bandwidth |
2-8MHz |
|
Output Power
|
-15+3dBm |
| Convolution Coding Ratio |
1/2,2/3,3/4,5/6,7/8 |
| Guard interval |
1/4,1/8,1/16,1/32 |
| IFFT Mode |
2K |
| RF Interface |
IPX*1 |
| SD Video Input interface |
IPX*1 |
| Audio input Interface |
3PIN |
| Serial Interface |
RS232*2 |
| Electrical interface |
2PIN 2.54PIN*1 |
| AV Input Format |
720*480 60I(NTSC),720*576 50I(PAL),mode adaptation
|
| HDMI |
1080P,720P |
| Encryption |
AES128 |
| Power Input |
7V-18V DC |
| Dimensions |
50x35x8mm (L x W x H) |
| Working Temp. |
-40℃~ +65℃ |
| Storage Temp. |
-45ºC ~ +85ºC |
| Working Humidity |
5% ~ 95% (Non-condensing) |

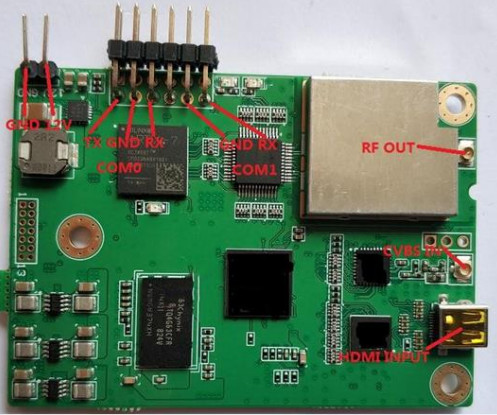

Interface Description
