LKAV6201 COFDM Receiver Module PCBA For Video Transmission
Introduction
LKAV- 6201 is a COFDM receiver module that supports simultaneous HDMI and AV output. It outputs through H.265 decoding and supports up to 1080P@60fps audio and video decoding.
Specification
| Frequency |
20MHz-860MHz Customized |
| RF Bandwidth |
1-8MHz |
|
Output Power
|
-15+3dBm |
| Convolution Coding Ratio |
1/2,2/3,3/4,5/6,7/8 |
| Guard interval |
1/4,1/8,1/16,1/32 |
| IFFT Mode |
2K/8K |
| RF Interface |
SMA*2 |
| SD Video output interface |
3PIN |
| HD Video Output interface |
HDMI-A |
| Serial Interface |
RS232*2 |
| Electrical interface |
DC |
| HD Video Output |
Up to 1080@60P
|
| AV Video Output |
720*480 60I(NTSC) |
| Encryption |
AES |
| Working voltage |
12V |
| Dimensions |
82x81x2mm (L x W x H) |
| Working Temp. |
-40℃~ +65℃ |
| Storage Temp. |
-45ºC ~ +85ºC |
| Working Humidity |
5% ~ 95% (Non-condensing) |

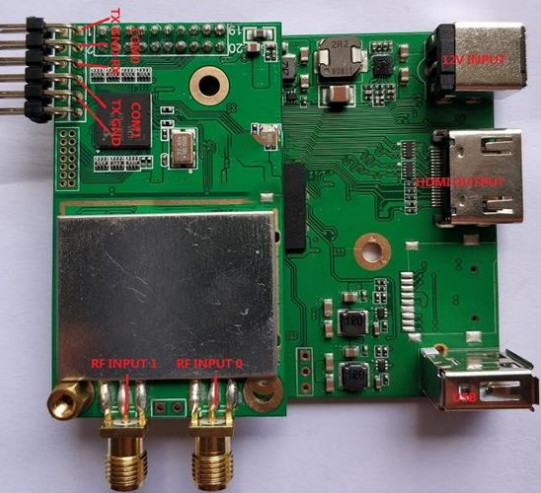

Interface Description
