LKAV6308 5G 2W IP Mesh radio module
Introduction
The LKAV-6308 is a wireless MeSH module works at 5GHz band. It supports data rate up to 96Mbps, is a lightweight MeSH node which suits the on-site video capture and can be used in UAV application and emergency communications in the fields of fire protection, rescue, surveillance, police and , etc.
Features
◼ Frequency 5.180~5.825GHz
◼ MIMO dual-channel
◼ Data rate up to 96Mbps
◼ Range up to 10-20km LOS (Ground-to-Ground)
◼ Supports 2.4G WiFi
◼ Supports up to 10 hops and 50 nodes
◼ Supports AES encryption
Specification
| Frequency |
5.18-5.825GHz(802.11AN) |
| RF Bandwidth |
5M/10M/20M/40MHz |
| Output Power |
33dBm (2W 2x1 MIMO) |
| Receiving sensitivity |
Max-97dBm |
| Interface |
MMCX*2
10/100M RJ45*2
GPIO*5
USB*1
MiniPci-E*1(5V2A)
|
| Max throughput |
96Mbps@40MHz |
| Modulation |
OFDM: DSSS/CCK BPSK/QPSK
COFDM: BPSK/QPSK/16-QAM/64-QAM
|
| Management |
WebUI |
| Network Capability |
9-hop no less than 64 nodes |
| Baud Rate |
1200bps~115200bps (Default 115200bps) |
| Encryption |
AES256 |
| Power Input |
12V-48V DC,15-48V POE |
| Power Consumption |
Average 137dBm |
| Dimensions |
117x68x17mm (L x W x H) |
| Weight |
120g |
| Working Temp. |
-40℃~ +65℃ |
| Storage Temp. |
-45ºC ~ +85ºC |
| Working Humidity |
5% ~ 95% (Non-condensing) |

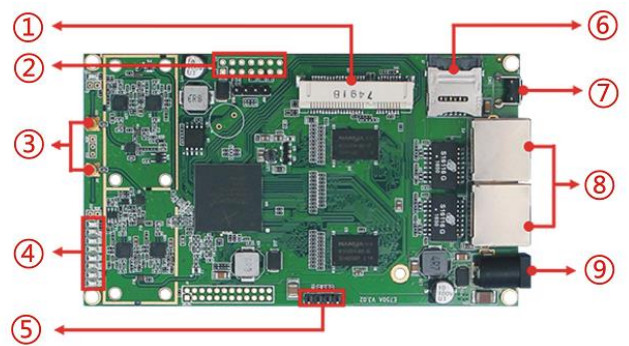

Interface Description
① MiniPCI-e 5V2A
② GPIO
③ MMCX*2
④ LED
⑤ USB 4PIN*2.0mm
⑥ SIM Card Slot
⑦ Reset Button
⑧ 10M/100M RJ45*2
⑨ DC Jack
Dimensions
