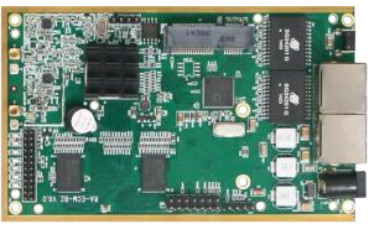

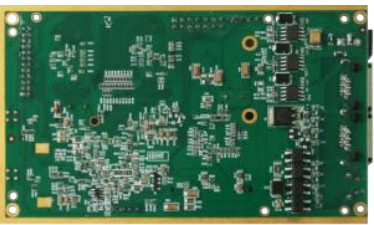

LKAV6308 5G 2W IP Mesh radio module
Introduction
The LKAV-6309 is a wireless MESH module works at 2.4GHz band. It supports data rate up to 96Mbps, is a lightweight MESH node which suits the on-site video capture and can be used in UAV application and emergency communications in the fields offire protection, rescue, surveillance, police and , etc.
Features
Frequency 2.412~2.482GHz
MIMO dual-channel Mesh network
Data rate up to 96Mbps
Range up to 10-20km LOS
Supports 2.4G WiFi
Supports up to 10 hops and 10nodes(Customized)
Supports AES encryption
Specification
| Frequency |
2.412-2.482GHz |
| RF Bandwidth |
5M/10M/20M/40MHz |
| Output Power |
30dBm (MIMO 2*2) |
| Receiving sensitivity |
Max-97dBm@5MHz BPSK |
| Interface |
MMCX*2
1000M RJ45*2
GPIO*12
USB*1
MiniPci-E*1(5V2A)
|
| Max throughput |
96Mbps@40MHz |
| Modulation |
OFDM: DSSS/CCK BPSK/QPSK
COFDM: BPSK/QPSK/16-QAM/64-QAM
|
| Management |
WebUI |
| Network Capability |
9-hop no less than 64 nodes |
| Baud Rate |
1200bps~115200bps (Default 115200bps) |
| Encryption |
AES |
| Power Input |
7V-48V DC,15-48V POE |
| Power Consumption |
Average 4W |
| Dimensions |
120x74x17mm (L x W x H) |
| Weight |
120g |
| Working Temp. |
-40℃~ +65℃ |
| Storage Temp. |
-45ºC ~ +85ºC |
| Working Humidity |
5% ~ 95% (Non-condensing) |

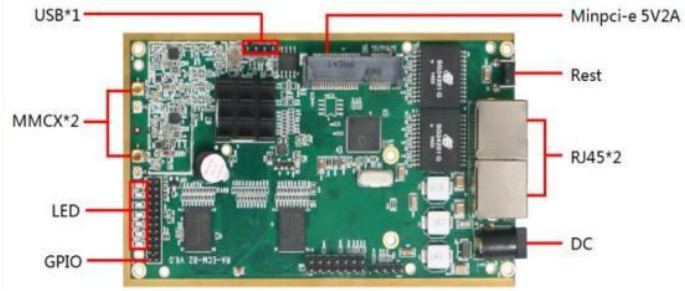

Interface Description
Dimensions
