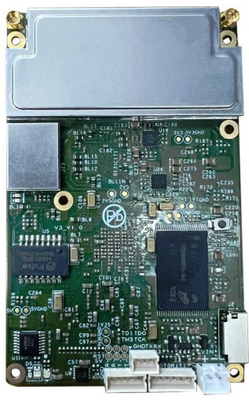

LKAV6315 500mw 20km FPGA Video Transmission IP MESH Module
Introduction
The LKAV-6315 is a 500mW IP MESH module using FPGA solution, employing a Software Defined Radio (SDR) architecture. It mainly implements the physical layer (PHY),media access control (MAC), link protocols, and self-organizing network protocols. The
core communication module supports LAN and asynchronous serial interfaces, as well as external RS-232 interface GPS BD modules. It can be used in various forms of self-organizing network products, including fixed, vehicle-mounted, airborne,backpack-mounted, and handheld types.
Features
Adopting FPGA solution
Frequency 1300MHz～1500MHz
Data rate up to 28Mbps
Supports frequency hopping
No less than 32 nodes (Customizable)
AES256
With RS232 interface
Transmission range up to 20km air to air LOS
Compact size and light weight
Specification
| Item |
Parameters |
| Frequency |
1300-1500MHz |
| RF Bandwidth |
2.5/5/10MHz |
| Output Power |
1w |
| Receive sensitivity |
<-1000dBm |
| Network capacity |
>32 nodes |
| Encryption |
AES256 |
| Transmission distance |
>2KM |
| Power Input |
DC 7-15V@2A
|
| Power Consumption |
<9W |
| Dimensions |
87*55*10.3mm |
| Weight |
40g |
| Working Temp. |
-30℃ ~ +65℃ |

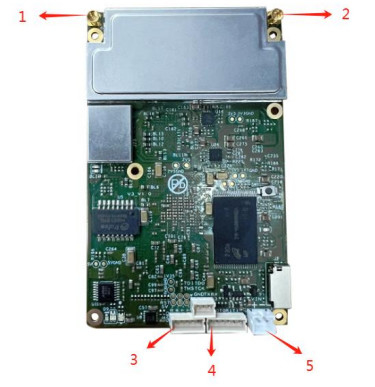

Interface Description
① RF Antenna 2
② RF Antenna 1
③ Eth0 Interface (pin1: GND; pin2: RX+; pin3: RX-; pin4: TX+; pin5: TX-)
④ RS232 Interface 1/2 (pin1: GND; pin2: 232-RX0; pin3: 232-TX0; pin4: 232-RX1; pin5:
232-TX1;pin6: 5V)
⑤ Power Supply Interface(pin1: GND; pin2: 12V)
Dimensions
