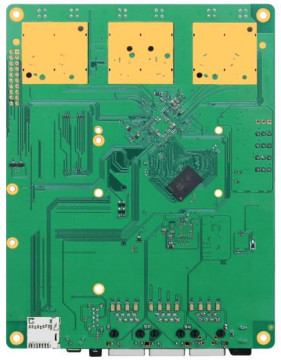

LKAV6307 2.4/5.2/5.8GHz Tri-band IP Mesh radio module
Introduction
LKAV-6307 is a wireless tri-band wireless board based on Qualcomm chip, integrating two independent and non-interfering 802.11ac Wave2.0 5G wifi modules and one 2.4G wifi module, while also supporting the expansion of a 4G internet access module or standard MiniPCI-E 1.0/2.0 module. It is suitable for high-density wireless coverage, tri-band MESH networks, industrial wireless networks, loT middleware platforms, and
other industry applications.
Features
Tri-band :2.4GHz / 5.2GHz / 5.8GHz
Throughput up to 300Mbps
5M/10M/20M/40M/80MHz adjustable
Supports up to 200 nodes
AES256 encryption
Receive sensitivity up to -96dBm
Specification
| Frequency |
2.4/5.2/5.8GHz |
| RF Bandwidth |
5/10/20/40/80MHz |
| Output Power |
5G-L 23dB*2;2;5G-H:23dBm*2; 2.4G:23dBm*2 |
| Receiving Sensitivity |
Up to -96dBm |
| RF Channel |
6T6R |
| Network Capability |
9-hop no less than 64 nodes |
| Encryption |
AES256 |
| Dimensions |
155x118x17mm (L x W x H) |
| Weight |
160g |
| Working Temp. |
-40℃~ +65℃ |
| Storage Temp. |
-45ºC ~ +85ºC |
| Working Humidity |
5% ~ 95% (Non-condensing) |

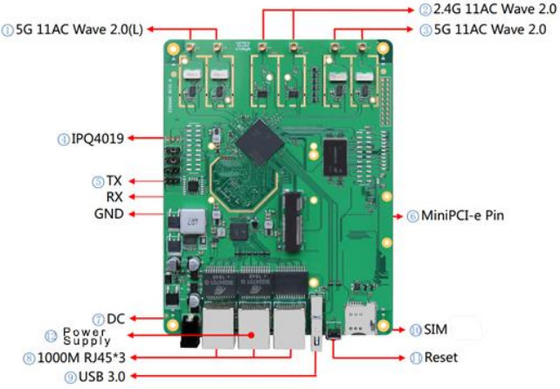

Interface Description
Dimensions
