Product Description:
The UAV Data Link is compact and lightweight, measuring just 120*90*40mm in size, making it easy to install and use. It comes with 32 network nodes, which allows for seamless and secure data transmission.
The positioning of the UAV Data Link is top-notch, with GPS/BD/GLONASS capabilities, ensuring accurate location tracking and data collection. This feature makes it an ideal choice for conducting aerial surveys, monitoring wildlife, and other remote sensing applications.
The frequency range of the UAV Data Link is between 1300-1500MHz, providing a stable and secure connection for data transmission. This frequency range ensures that the product is not affected by other radio signals, making it an excellent choice for use in busy airspace areas.
The UAV Data Link is a versatile product that can be used in a wide range of applications. Some of the most common uses include aerial photography, remote sensing, mapping, and data collection. Its compact size and lightweight design make it an ideal choice for use in small and medium-sized unmanned aerial vehicles (UAVs).
In conclusion, the UAV Data Link is a game-changer in the world of Aircraft Data Transmission Systems. Its advanced features, including its positioning, frequency range, and network nodes, make it the go-to choice for anyone looking for a reliable and efficient digital radio-controlled airplane data transmission.
Features:
- Product Name: UAV Data Link
- Positioning: GPS/BD/GLONASS
- Output Power: 4W
- RF Channel: 2T2R
- Data Links: LAN/TTL/RS232/HDMI
- Size: 120*90*40mm
- Features:
- Provides UAV Signal Link
- Enables Unmanned Aircraft Data Exchange
- Includes UAV Transmission Module
Technical Parameters:
| Product Attribute |
Technical Parameter |
| Data Rate |
28Mbps@10MHz&56Mbps@20MHz |
| Bandwidth |
2/5/10/20MHz |
| IP Rating |
IP54 |
| Network Nodes |
32 Nodes |
| Encryption |
AES 256-bit |
| Transmit Range |
70-120KM(LOS) 30-Long Distance(Ground-to-ground LOS) |
| Frequency |
1300-1500MHz |
| Package |
Standard Export Packaging |
| Data Links |
LAN/TTL/RS232/HDMI |
| Positioning |
GPS/BD/GLONASS |
This technical parameter table is for the Drone video module, Aircraft Data Transmission System, and Digital Radio-Controlled Airplane Data Transmission product named UAV Data Link.
Applications:

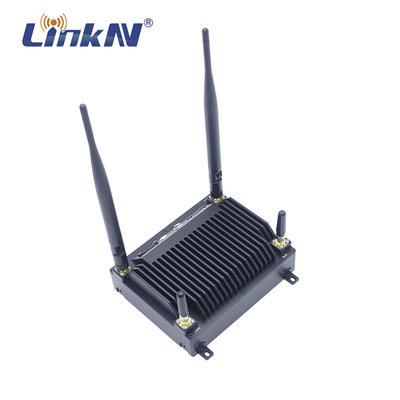

Measuring 120*90*40mm and weighing 475g, the LINKAV MANET9401 is a compact and lightweight device that won't weigh down your UAV. It operates on a frequency range of 1300-1500MHz and has an IP54 rating, making it suitable for use in a wide range of environments. The device is also equipped with AES 256-bit encryption, ensuring that your data remains secure during transmission.
The MANET9401 is specifically designed for use with UAVs, providing a reliable and high-speed data link for transmitting video and other data. It can be used in a variety of scenarios, including aerial photography, surveillance, and search and rescue operations.
With the ability to transmit SDR images, the LINKAV MANET9401 is an ideal choice for professional photographers and videographers who want to capture high-quality footage from their UAVs. It can also be used by law enforcement and personnel for surveillance and reconnaissance missions.
In summary, the LINKAV MANET9401 is a high-performance UAV Data Link product that is perfect for a range of applications. With its compact size, lightweight design, and robust features, it is an ideal choice for anyone looking for a reliable and secure way to transmit data from their UAV.
