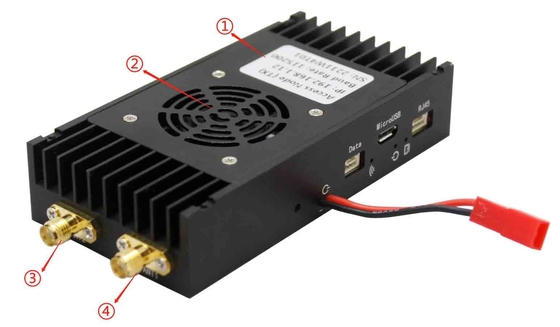

2xIPEX Connector UAV Data Link with 115200bps Baud Rate and 800MHz/1.4GHz/2.4 GHz Frequency

Product Description:

The UAV Data Link product is equipped with advanced encryption technology, AES128, which ensures that the transmitted Drone video module is secure and not vulnerable to unauthorized access. The AES128 encryption technology is a highly effective security measure that guarantees the privacy and confidentiality of the transmitted data.

The UAV Data Link product operates at three different frequencies; 800MHz, 1.4GHz, and 2.4GHz. The use of multiple frequencies ensures that the product can operate in different environments and conditions. The 800MHz frequency is ideal for long-range transmission, while the 2.4GHz frequency is suitable for short-range transmission. The 1.4GHz frequency is a hybrid frequency that offers both long and short-range transmission.

The UAV Data Link product has a low latency of 10ms, which is a significant improvement over traditional Drone video transmission systems. The low latency ensures that the transmitted Drone video module is delivered in real-time, making it ideal for applications that require immediate response, such as surveillance, search and rescue, and operations.

The UAV Data Link product has a transmit range of 15KM, which is a significant improvement over traditional Drone video transmission systems. The long-range transmission capability of the product makes it ideal for applications that require long-distance surveillance and monitoring, such as border patrol, wildlife tracking, and pipeline inspection.

The UAV Data Link product is designed to work seamlessly with IPCam, making it easy to connect and use. The IPCam is a high-definition camera that captures high-quality video, which is transmitted through the UAV Data Link product. The use of IPCam ensures that the transmitted Drone video module is of high quality and resolution, making it ideal for applications that require detailed and accurate video information.

In conclusion, the UAV Data Link is an exceptional product that is designed to revolutionize Drone video transmission. The product is equipped with advanced encryption technology, operates at multiple frequencies, has a low latency, and has a long-range transmission capability. The product is easy to use and works seamlessly with IPCam, making it ideal for a wide range of applications, including surveillance, search and rescue, and operations.

Features:

• Product Name: UAV Data Link
• Working current: ≤0.5A
• Max Throughput: Max 30Mbps@20MHz
• Baud rate: 115200bps
• Video Input: IPCam
• Weight: 124g

This product is a drone data link that includes a drone video module and allows for a maximum throughput of 30Mbps at 20MHz. It has a working current of ≤0.5A and a baud rate of 115200bps. Additionally, it features an IPCam video input and weighs only 124g.

Technical Parameters:

This UAV Data Link is a SDR image transmission system and a Drone airborne video module. It is part of a UAV Communication System.

Applications:

The UAV Data Link product supports RJ45/UART(TTL232) data links and has a power consumption of less than 6W (3.7W@7V, 4.37dBm@30V). The size of the product is 102*52*21.5mm, making it convenient for drone operators to carry it along. The product's encryption is AES128, providing a secure data transmission. The RF bandwidth of the product is 1.4MHz/ 3MHz/ 5MHz/ 10MHz/ 20MHz, which can be adjusted according to the operator's preference.

The UAV Data Link product is suitable for various application occasions and scenarios. One of the key applications of this product is for drone airborne video modules. The product can be used to transmit high-quality video data from the drone to the ground station, allowing the operator to have real-time video feedback. This is particularly useful for applications such as aerial photography, search and rescue operations, and surveillance.

In addition to drone airborne video modules, the UAV Data Link product is also suitable for other applications, such as environmental monitoring, industrial inspection, and precision agriculture. The product's compact size and secure data transmission make it an ideal solution for these scenarios.

Support and Services:

The UAV Data Link product technical support team is available to provide assistance with any technical issues or questions. Our team is knowledgeable about the product and can help troubleshoot any problems that may arise. Additionally, we offer a range of services to ensure that your product is functioning at its best, including regular maintenance and software updates. Our goal is to provide our customers with the best possible support and service to ensure their satisfaction with our product.

Packing and Shipping:

Product Packaging: The UAV Data Link product will be securely packaged in a durable cardboard box with adequate padding to prevent any damage during shipping. The box will also include a user manual and any necessary cables or adapters. Shipping: The UAV Data Link product will be shipped via a reputable courier service. Shipping options and costs will be displayed at checkout and customers can choose their preferred shipping method. Delivery times will vary depending on the destination and shipping method selected.

FAQ:

Q: What is the brand name of the UAV Data Link product?

A: The brand name of the UAV Data Link product is LINKAV.

Q: What is the model number of the UAV Data Link product?

A: The model number of the UAV Data Link product is LKAV3621.

Q: Where is the UAV Data Link product manufactured?

A: The UAV Data Link product is manufactured in Shenzhen.

Q: Does the UAV Data Link product have any certification?

A: Yes, the UAV Data Link product is CE certified.

Q: What is the minimum order quantity for the UAV Data Link product?

A: The minimum order quantity for the UAV Data Link product is 1.

Q: What is the price of the UAV Data Link product?

A: The price of the UAV Data Link product is 500 USD.

Q: What is the packaging detail for the UAV Data Link product?

A: The packaging detail for the UAV Data Link product is carton.

Q: What is the delivery time for the UAV Data Link product?

A: The delivery time for the UAV Data Link product is 15 days.

Q: What are the payment terms for the UAV Data Link product?

A: The payment terms for the UAV Data Link product is TT.

Q: What is the supply ability for the UAV Data Link product?

A: The supply ability for the UAV Data Link product is 1000pcs/year.
