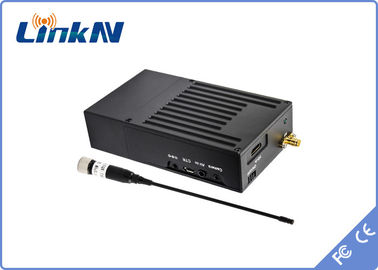

LKAV-C328 1-5Km COFDM Manpack HDMI Wireless Video Transmitter with low latency
Features of Mini Transmitter:
Technical Parameters:
|
Item |
Description |
|
Modulation method |
COFDM |
|
Working Frequency |
45~2.5GHz; per 0.1M adjustable |
|
Transmission Power |
1W |
|
RF Bandwidth |
2/3/4/5/6/7/8MHz (adjustable) |
|
FEC(forward error correction) |
1/2,2/3,3/4,7/8 |
|
Guard Interval |
1/4,1/8,1/16,1/32 |
|
Video Input |
HDMI: Support 1080P,1080i,720P,720i |
|
Video Compression |
H.264 |
|
RF Interface |
SMA F head |
|
Parameter Control Method |
Adjustable digital LED control panel |
|
Encryption Method |
256 - bit AES (can set user’s password) |
|
Transmission Distance |
Over 1KM in favorable conditions |
|
Working Voltage |
AC220V |
|
Working Current |
1.55A |
|
Working Temperature |
-10~70℃ |
|
Weight |
203g |
|
Dimensions |
86x65x26(mm) or 120x65x26(mm) with battery |
The front-end transmitting device included: Omni directional whip antenna,mini individual transmitter(the above is standard configuration),hand-held camera,helmet camera,knapsack,standby battery(the above for optional)
Application Scenes:
Commercial
Industrial
Police
Application
