COFDM HDMI Video Receiver AES256

COFDM HDMI Video Receiver AES256
Features Gallery Product Description Request A Quote
Modulation: QPSK(4QAM)、16QAM、64QAM
Video Output: CVBS(NTSC/PAL), HDMI(1080 30fps)
Video Compression: MPEG-2、H.264
Receiving Sensitivity: -106dBm
System: PAL/NTSC
Encryption: CES
Working Frequency: 160-860MHz
High Light:

Portable wireless Receiver


wireless hdmi video transmitter


AES256 HDMI Video Receiver

Basic Infomation
Place of Origin: Shenzhen China
Brand Name: OEM / LinkAV
Certification: CE
Model Number: LKAV-1404
Payment & Shipping Terms
Packaging Details: Brown Carton
Delivery Time: Negotiable
Payment Terms: T/T, PayPal
Supply Ability: 1000pcs/Month
Product Description

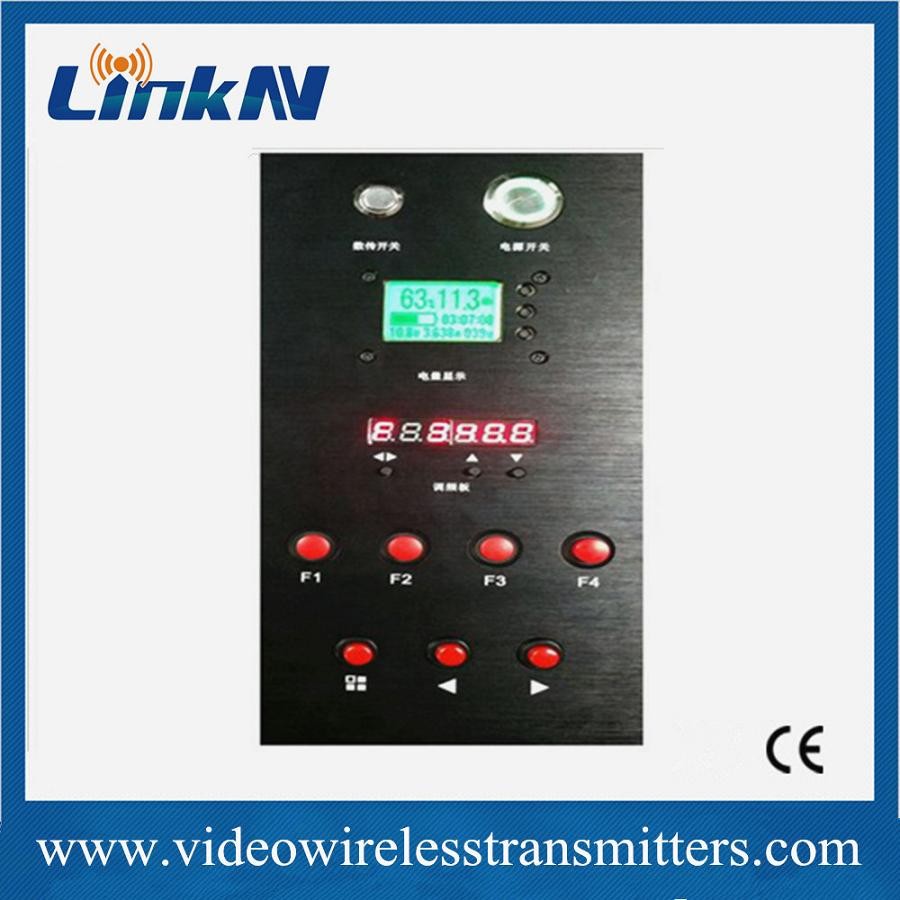

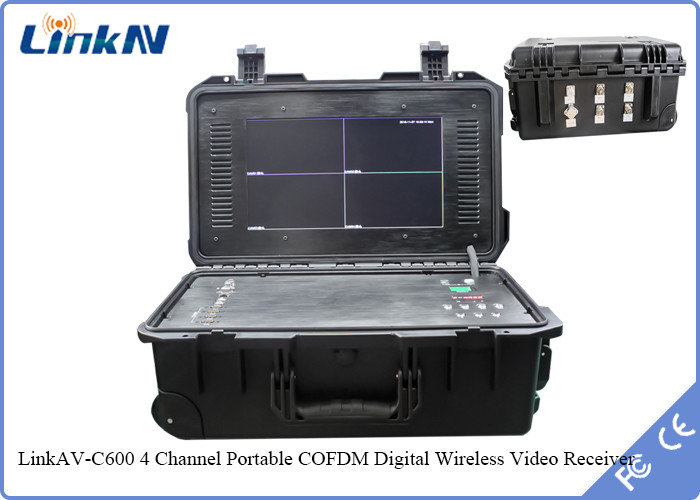

Hottest COFDM HDMI Wireless Portable Video Receiver With N Female RF Interface



Introduction of COFDM portable video receiver:


This kind of receiver can receive video transmission from 4 transmitters in one time.


  1. RF Bandwidth: 1.25/2.5/6/7/8MHz(upon request)
  2. Encryption Method: 256 - bit AES (can set user's password)
  3. Video Input: CVBS:NTSC,PAL ; HDMI: 1920 x1080p, 30 frames
  4. Video Compression: H.264
  5. RFI RF interface: N female head
  6. Audio Interface: HDMI: 1920 x1080p, 30 frames
  7. External(can built-in)Battery:DC12V/3.1~4.2A
  8. With 15.6-inch LED screen, real time monitoring the 4 way image ;
  9. Enable remote monitoring and control of PTZ;


Product Features:


     1. Applied with modulation, three-proof, low power consumption design;

     2. Four way wireless SD or HDMI integrated surveillance system;

     3. Support local video storage;

     4. Support TCP/IP/UDP internet protocols

     5. Support 4 channels standard definition video preview

     6. Support multiple USB interfaced human-computer interaction

     7. Stable features, high receiving sensitivity, adjustable power

     8. Support 64/128 bits AES encryption





Transmission Characteristics
Modulation Type QPSK(4QAM), 16QAM, 64QAM
Working Frequency 46~860 MHz (adjustable )
RF Bandwidth 1.25/2.5/6/7/8MHz
FEC (forward error correction ) 1/2 2/3 3/4 7/8
Guard Interval 1/32 1/16 1/8 1/4
Data Characteristics
Video Output CVBS:NTSC,PAL self-adaptive
Video Decoding MPEG-2 / H.264
Audio Interface 4C Navigation dead end
RF Interface N F head
Storage Interface USB
Parameter Control Method Via LED display panel
Encryption Method 128 - bit AES (can set user’s password)
Electrical Characteristics
Power Supply DC 12V
Lithium Battery built-in 18Ah lithium battery,work last min 4 hours
Working current 3.1~4.2A
Physical Characteristics
Working Temperature -10~70℃
Dimension 570*350*220 mm




Zhongchuang Tech is specialized in COFDM, TDD and 3G/4G wireless video transmission products for 11 years, including video wireless transmitter, wireless video receiver, quality video wireless transmitter, products are applied widely among Public Security Bureaus, Forest Fire Prevention Departments, Maritime Bureaus, Oil Field, Construction Sites, Tunnels,UAV, Automobiles and so on.
