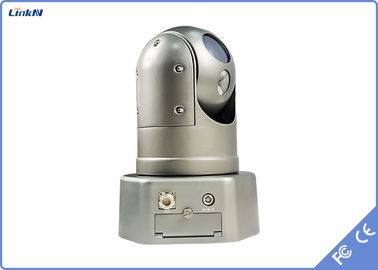

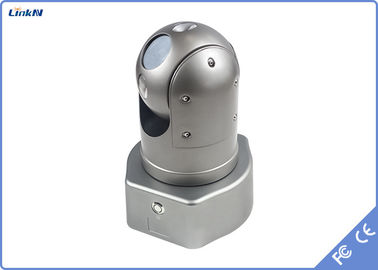

PTZ Camera MANET 4G FHD 580MHz 1.4GHz AES Encryption with Battery
Introduction
The MANET3801 is a PTZ camera integrates 4G-LTE, IP Mesh wireless transmission, high-precision pan/tilt, lithium battery, infrared array, video encoding, local storage and positioning, which can meet emergency deployment and vehicle-mounted mobile monitoring. It can be quickly installed with straps or placed on a tripod, and can quickly complete the investigation and control of designated areas. It is ideally used in public security, fire protection, prisons, transportation, water conservancy and flood control, road rescue, urban management inspection and other emergency command and mobile law enforcement fields.
Features
■ Supports 360-degree unlimited PTZ
■ Supports anti-shake, auto focus, auto white balance and backlight
■ H.264 encoding supports1080P, 720P, D1, etc.
■ Supports local storage
■ Supports auto-adjust transmission code stream
■ Supports 4G public network and Mesh private network
■ Support WI-FI and wired access
■ Rugged IP66 waterproof design
Specification
Camera Characteristics | |
Image Sensor | 2M pixel CMOS sensor |
Resolution | 1080p@30Hz |
Minimum Illumination | Infrared on, 0 Lux |
Lens | F=3.6mm, 10x Zoom |
IR Cut | Automatic switching between black and white and color |
Horizontal Range | 360 ° continuous rotation |
Horizontal Speed | Horizontal keying speed: 0.1° - 220°/s, speed can be set Horizontal preset speed: 300°/s |
Vertical Range | 0° - 90° (180° auto flip) |
Vertical Speed | Vertical keying speed: 0.1° - 90°/s, speed can be set vertical preset speed: 120°/s |
Telephoto Speed Limit | Support |
RF Characteristics | |
Frequency | 1400-1460MHz (562-612MHz) |
RF Bandwidth | 5M/10M/20M (adjustable) |
RF Channels | 2T2R |
Output Power | 36dBm (4W) |
Modulation Type | BPSK/QPSK/16-QAM/64-QAM |
Network Characteristics | |
Mesh Network Capacity | Up to 9 hops 64 nodes |
Public Network | 4G-LTE |
Sensitivity | -97dBm@5MHz Max |
Data Rate | 82Mbps |
WIFI | 2.4GHz |
Encryption | AES |
Physical Characteristics | |
Dimensions | 274*170*154mm |
Weight | 4KG |
Working Temp. | -20℃ ~ +65℃ |
IP Rating | IP66 |
Electrical Characteristics | |
Working Voltage | DC 12V |
Battery Capacity | 10Ah |
Power Consumption | <High Power |
Panel Description
① Power Button
② Mounting hole – 4xΦ6.5
① LAN/Charging port – LEMO connector
② WIFI antenna interface
③ GPS antenna interface
④ 4G antenna interface
⑤ Mesh antenna interface-1
⑥ PTT interface
⑦ Signal indicator
⑧ MESH antenna interface-2
Dimensions
