IP MESH Radio Module 2.4GHz 1W Power AES Encryption 96Mbps 10 Hops 50 Nodes
Introduction

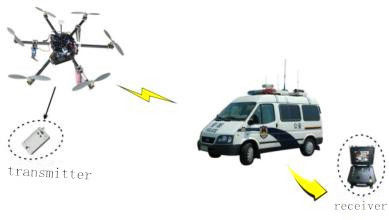

The LKAV-6309 is a wireless MESH module works at 5GHz band. It supports data rate up to 96Mbps, is a lightweight MESH node which suits the on-site video capture and can be used in UAV application and emergency communications in the fields of fire protection, rescue, surveillance, police and , etc.
Features
■ Frequency 2.412~2.482GHz
■ MIMO dual-channel Mesh network
■ Data rate up to 96Mbps
■ Range up to 10-20km LOS
■ Supports 2.4G WiFi
■ Supports up to 10 hops and 50 nodes
■ Supports AES encryption
Specification
| Frequency | 2.412~2.482GHz |
| RF Bandwidth | 5M/10M/20M/40MHz |
| Output Power | 30dBm (MIMO 2x2) |
| Receiving Sensitivity | Max -97dBm@5MHz BPSK |
| Interfaces |
MMCX*2, 1000M RJ45*2, 12-PINGPIO12 USB*1, MiniPci-E*1(5V2A) |
| Max Throughput | 96Mbps@40MHz |
| Modulation Type | BPSK/QPSK/16-QAM/64-QAM |
| Management | Web |
| Nodes Number | No less than 50 nodes |
| Baud Rate | 1200bps~115200bps (Default 115200bps) |
| Encryption | AES |
| Power Input | 7V-48V DC, 15V-48V POE |
| Power Consumption | Average 4W |
| Dimensions | 120x74x17mm (L x W x H) |
| Weight | 120g |
| Working Temp. | -40℃~ +65℃ |
| Storage Temp. | -45ºC ~ +85ºC |
| Working Humidity | 5% ~ 95% (Non-condensing) |
| Antenna | Modulation | Output Power & Data Rate | Tolerance | |||
| 20MHz | 40MHz | |||||
| 1x1 | BPSK | 7.2Mbps | 27dBm | 15Mbps | 27dBm | ±2dB |
| QPSK | 14.2Mbps | 27dBm | 30Mbps | 27dBm | ±2dB | |
| QPSK | 21.7Mbps | 27dBm | 45Mbps | 27dBm | ±2dB | |
| 16-QAM | 28.9Mbps | 27dBm | 60Mbps | 27dBm | ±2dB | |
| 16-QAM | 43.3Mbps | 27dBm | 90Mbps | 27dBm | ±2dB | |
| 64-QAM | 57.8Mbps | 26dBm | 120Mbps | 26dBm | ±2dB | |
| 64-QAM | 65Mbps | 25dBm | 135Mbps | 25dBm | ±2dB | |
| 64-QAM | 72.2Mbps | 24dBm | 150Mbps | 24dBm | ±2dB | |
| 2x2 | BPSK | 14.4Mbps | 30dBm | 30Mbps | 30dBm | ±2dB |
| QPSK | 28.4Mbps | 30dBm | 60Mbps | 30dBm | ±2dB | |
| QPSK | 43.3Mbps | 30dBm | 90Mbps | 30dBm | ±2dB | |
| 16-QAM | 57.8Mbps | 30dBm | 120Mbps | 30dBm | ±2dB | |
| 16-QAM | 86.7Mbps | 30dBm | 180Mbps | 30dBm | ±2dB | |
| 64-QAM | 115.6Mbps | 29dBm | 240Mbps | 29dBm | ±2dB | |
| 64-QAM | 130Mbps | 28dBm | 270Mbps | 28dBm | ±2dB | |
| 64-QAM | 144.4Mbps | 27dBm | 300Mbps | 27dBm | ±2dB | |
| Antenna | Modulation | Sensitivity & Data Rate | Tolerance | |||
| 20MHz | 40MHz | |||||
| 1x1 | BPSK | 7.2Mbps | -97dBm | 15.0Mbps | -97dBm | ±2dB |
| QPSK | 14.2Mbps | -97dBm | 30.0Mbps | -96dBm | ±2dB | |
| QPSK | 21.7Mbps | -96dBm | 45.0Mbps | -95dBm | ±2dB | |
| 16-QAM | 28.9Mbps | -95dBm | 60.0Mbps | -92dBm | ±2dB | |
| 16-QAM | 43.3Mbps | -92dBm | 90.0Mbps | -90dBm | ±2dB | |
| 64-QAM | 57.8Mbps | -89dBm | 120.0Mbps | -87dBm | ±2dB | |
| 64-QAM | 65.0Mbps | -86dBm | 135.0Mbps | -84dBm | ±2dB | |
| 64-QAM | 72.2Mbps | -81dBm | 150.0Mbps | -79dBm | ±2dB | |
| 2x2 | BPSK | 14.4Mbps | -97dBm | 30Mbps | -97dBm | ±2dB |
| QPSK | 28.4Mbps | -97dBm | 60Mbps | -96dBm | ±2dB | |
| QPSK | 43.3Mbps | -96dBm | 90Mbps | -95dBm | ±2dB | |
| 16-QAM | 57.8Mbps | -95dBm | 120Mbps | -92dBm | ±2dB | |
| 16-QAM | 86.7Mbps | -92dBm | 180Mbps | -90dBm | ±2dB | |
| 64-QAM | 115.6Mbps | -89dBm | 240Mbps | -87dBm | ±2dB | |
| 64-QAM | 130Mbps | -86dBm | 270Mbps | -84dBm | ±2dB | |
| 64-QAM | 144.4Mbps | -81dBm | 300Mbps | -79dBm | ±2dB | |
Panel Description
① Minipci-e 5V2A
② Reset
③ RJ45*2
④ DC Jack
⑤ 12-PIN GPIO*2
⑥ LED
⑦ MMXC*2 (Antenna)
⑧ USB 4-PIN*2.0mm
Dimensions
FAQ
Q1: Are you a manufacturer or a trading company?
We're professional manufacturer specializing in wireless transmission systems.
Q2: Why should I choose you?
You'll get competitive price, prime quality, satisfied service and long warranty.
Q3: What kind of product service can I have?
OEM & ODM service.
Q4: What kind of warranty do you offer?
We offer one-year-warranty and lifelong maintenance.
Q5: What're the payment terms?
We accept bank transfer, PayPal, or cash payment.
Q6: Packaging & Shipping?
Neutral brown carton & Ship via DHL, FedEx, UPS, TNT or by air/sea.
Q7: How long for delivery?
1-3 weeks for regular model and 3-5 weeks for customized model.
Q8: Can I order 1 sample for test?
Yes, we welcome sample order, mixed samples are acceptable.
Q9: Do you have any MOQ limit?
No limit, 1pc is acceptable.
Q10: Is it OK to print my logo on the product?
Yes, please inform us formally before production and confirm the design firstly
