Introduction

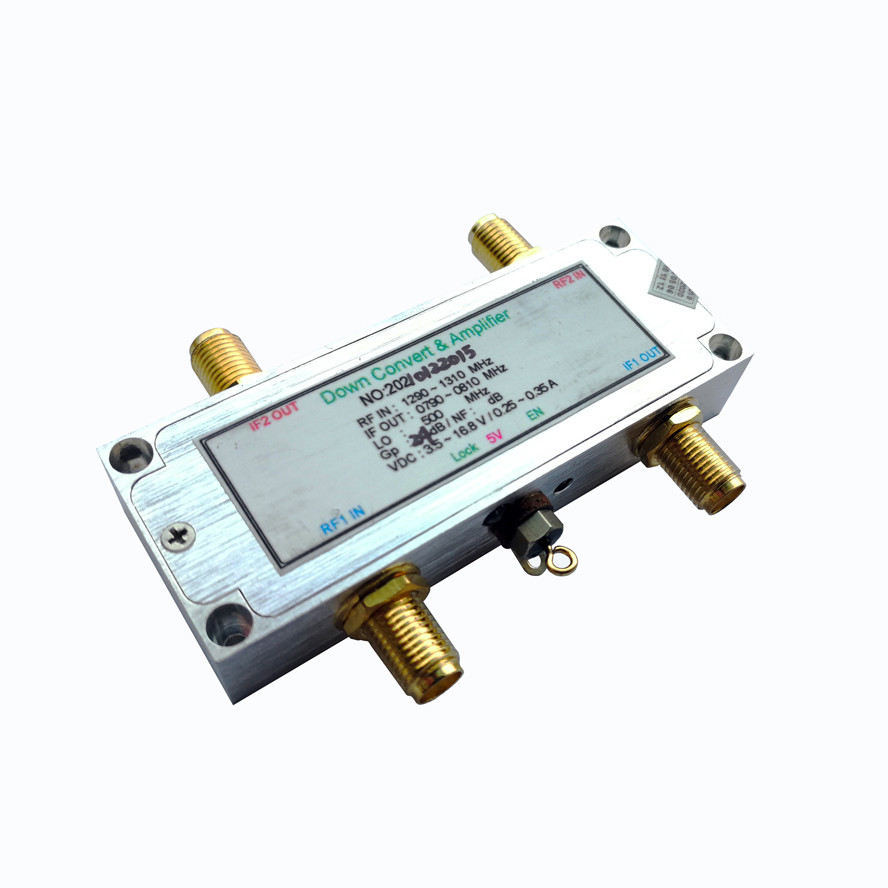

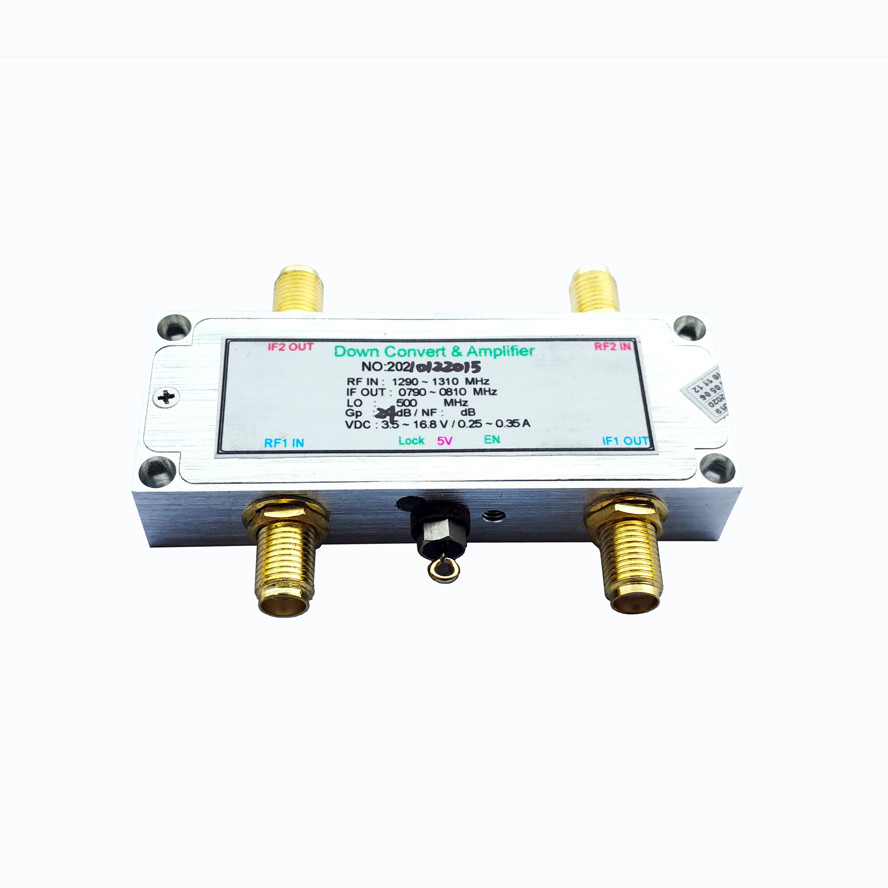

The DC500S is a dual channel RF down converter, it supports step down for 500MHz or customization (100-2700MHz), featuring 30MHz bandwidth, mini size and light weight.
Features
|
Model |
DC500S |
|
Number of Channel |
2 |
|
Input Frequency |
1300±15MHz (input filter insertion loss 3.0dB) 1300±4MHz (input filter insertion loss 2.4dB) |
|
Output Frequency |
700MHz (200-800MHz customizable) |
|
System Gain |
18dB±3dB |
|
Power Supply |
DC 5V |
|
Size |
66X25X12mm |
|
Weight |
41g |
|
Others |
Input frequency: 200-3500MHz customizable Output frequency: 100-800MHz customizable |
