SIM Free 5G Manpack Radio 4T4R HDMI & LAN DC-12V RTSP RTMP ONVIF TS UDP

2
MOQ
USD, RMB
Price
SIM Free 5G Manpack Radio 4T4R HDMI & LAN DC-12V RTSP RTMP ONVIF TS UDP
Features Gallery Product Description Request A Quote
Features
Specifications
Frequency: 5G & 4G TD-LTE, FDD-LTE, TD-SCDMA, CDMA, WCDMA, GSM
Bandwidth: 5-100MHz
RF Channel: 4T4R
CNR Sub6 SA: 600Mbps/1.5Gbps
Power Input: Waterproof DC Jack
Video Input: Waterproof HDMI Interface
High Light:

4T4R Manpack Radio

,

cofdm video transmitterWaterproof 5G Manpack Radio

,

Compact 5G Manpack Radio

Basic Infomation
Place of Origin: Shenzhen China
Brand Name: OEM / LinkAV
Certification: CE
Model Number: LKAV-7205
Payment & Shipping Terms
Packaging Details: Brown Carton
Delivery Time: Negotiable
Payment Terms: T/T, PayPal
Supply Ability: 1000pcs/Month
Product Description

SIM Free 5G Manpack Radio 4T45 HDMI & LAN DC-12V RTSP RTMP ONVIF TS UDP



Introduction

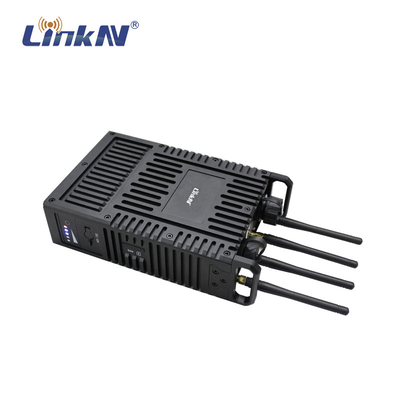

The LKAV-7205 is a 5G manpack radio designed to meet the needs of professional users. It is 5G & 4G SIM free and comes with battery, HDMI FHD input and Ethernet port. It supports WIFI and GB28181 protocol to access tripartite video platform. It can meet the industry's needs for wireless broadband access applications.



Features

■ 5G and 4G SIM free

■ Supports 100M/1000M Ethernet and Wi-Fi access

■ Supports HDMI video input

■ Compact size and light weight

■ Fully portable



Specification

Frequency

5G & 4G

TD-LTE, FDD-LTE, TD-SCDMA, CDMA, WCDMA, GSM

Bandwidth 5-100MHz
RF Channel 4T4R,4*4 MIMO
Power Rating

Class 3(23.5dBm±1.5dB)for WCDMA bands

Class 3(23dBm±1.5dB)for LTE bands

Class 3(23dBm±1.5dB)for NR Sub6 bands

Class 2(26dBm±1.5dB)for n41/78/79 bands

NR Sub6 SA 600Mbps/1.5Gbps
NR Sub6 ENDC Characteristic 300Mbps/1.5Gbps
Card Slot SIM
Power Input Waterproof DC Jack
Video Input Waterproof HDMI Interface
Network Interface Waterproof RJ45 Port
5G Antenna Interface SMA
Video Resolution CIF/HD1/D1/720P/1080P
Video Compression H.264/H.265
Protocols RTSP, RTMP, ONVIF, GB28181, TS, UDP
Dimensions 220x136x60mm
Weight 1.8kg
Working Temp. -40°C~75°C
IP Rating IP66
Power Supply DC 12V
Power Consumption 24W



Panel Description

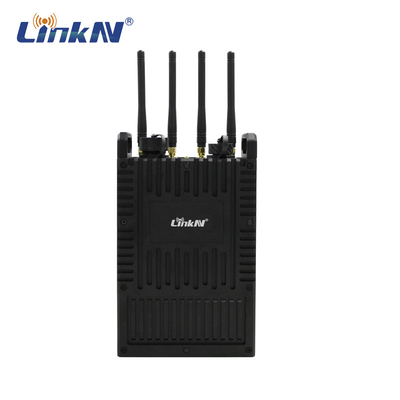

Top Panel

SIM Free 5G Manpack Radio 4T4R HDMI & LAN DC-12V RTSP RTMP ONVIF TS UDP 0

① Waterproof RJ45 port

② Power button

③ Waterproof HDMI port

④ Antenna – SMA

⑤ Antenna - SMA

⑥ LED signal indicator

⑦ Antenna - SMA

⑧ Antenna - SMA



Side Panel

SIM Free 5G Manpack Radio 4T4R HDMI & LAN DC-12V RTSP RTMP ONVIF TS UDP 1

① Battery indicator

② Power input - DC jack

③ SIM card slot





FAQ

Q1: Are you a manufacturer or a trading company?

We're professional manufacturer specializing in wireless transmission systems.

Q2: Why should I choose you?

You'll get competitive price, prime quality, satisfied service and long warranty.

Q3: What kind of product service can I have?

OEM & ODM service.

Q4: What kind of warranty do you offer?

We offer one-year-warranty and lifelong maintenance.

Q5: What're the payment terms?

We accept bank transfer, PayPal, or cash payment.

Q6: Packaging & Shipping?
Neutral brown carton & Ship via DHL, FedEx, UPS, TNT or by air/sea.

Q7: How long for delivery?
1-3 weeks for regular model and 3-5 weeks for customized model.

Q8: Can I order 1 sample for test?

Yes, we welcome sample order, mixed samples are acceptable.

Q9: Do you have any MOQ limit?

No limit, 1pc is acceptable.

Q10: Is it OK to print my logo on the product?

Yes, please inform us formally before production and confirm the design firstly
