-106Dbm COFDM Receiver Module With Dual Antenna Diversity Reception 256 - bit AES Encryption
LinkAV Overview:
LinkAV was founded in 2005 to provide wireless microwave products for video audio and data transmission based on COFDM/TDDOFDM/MESH/4G technology.
The COFDM with narrow bandwidth (2M-8MHz adjustable) and strong anti-multipath interference ability,different with analog and conventional modulation techniques, We are special for high-speed and real-time high-quality non-line-of-sight images transmission, particularly suitable for using under complex environments.
H.264 standard video coding,1080P high-definition,clear picture quality, bright colors, smooth image characteristics for high reliable video transmission.
Our wireless video transmission equipment are widely used in government surveillances,law enforcement,UAV &UGV ,broadcasting, security, civil defense, fire, emergency rescue departments,forest fire prevention, transportation, customs, railways, mining, electricity, finance and so on.

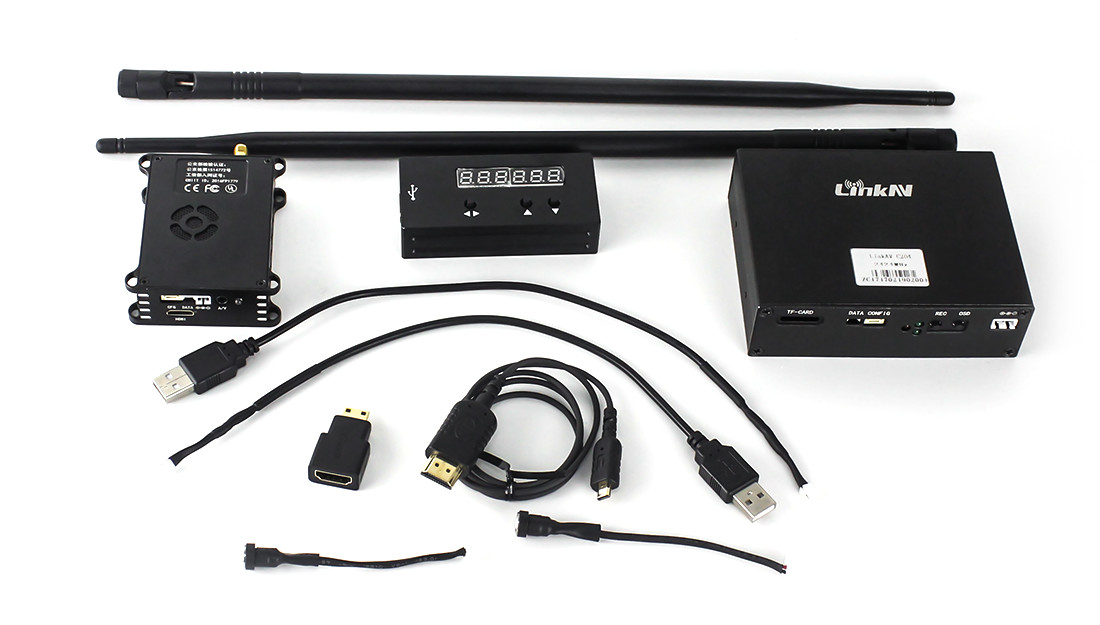

Linkav-C204 COFDM receiver module can receive audio and video signals from different band of frequency,support HDMI and CVBS external display interface,USB external storage,To achieve the audio and video transmission between the transmitter and the Linkav-C204 receiver module only 114.4x91x32.8 lightweight.
The use of advanced diversity reception technology,overcoming the difficulties of multipath reflection and blocking in image transmission under analog and conventional modulation techniques.High-quality standard-definition images can be transmitted in real-time under high-speed motion or non-line-of-sight conditions,Particularly suitable for use in complex environments.audio and video decoding using H.264 standard, with a clear picture quality, bright colors, smooth image characteristics.
COFDM Receiver Spcification
Version | High Definition Version |
Transmission Characteristics | |
Modulation | QPSK(4QAM),16QAM,64QAM |
Frequency | 200-860MHz optional(Default 700MHZ) |
RF bandwidth | 2MHz~8MHz(optional) 1KHz step |
Sensitivity | -106dbm |
Data Characteristics | |
Video Output | HDMI:1920x1080 P60 |
Video Compression | H.264 |
RF Interface | SMA F head |
Parameter Control Method | Using digital LED control panel |
Encryption | 256 - bit AES (can set user’s password) |
Electrical Characteristics | |
Working Voltage | DC6V-15V |
Working Current | ≤0.2A(@12V) |
power consumption | ≤2.37dBm |
Physical Characteristics | |
Weight | Less than 248g |
Dimensions | 114.4x91x32.8mm |
Working Environment | -20℃~+70℃ |

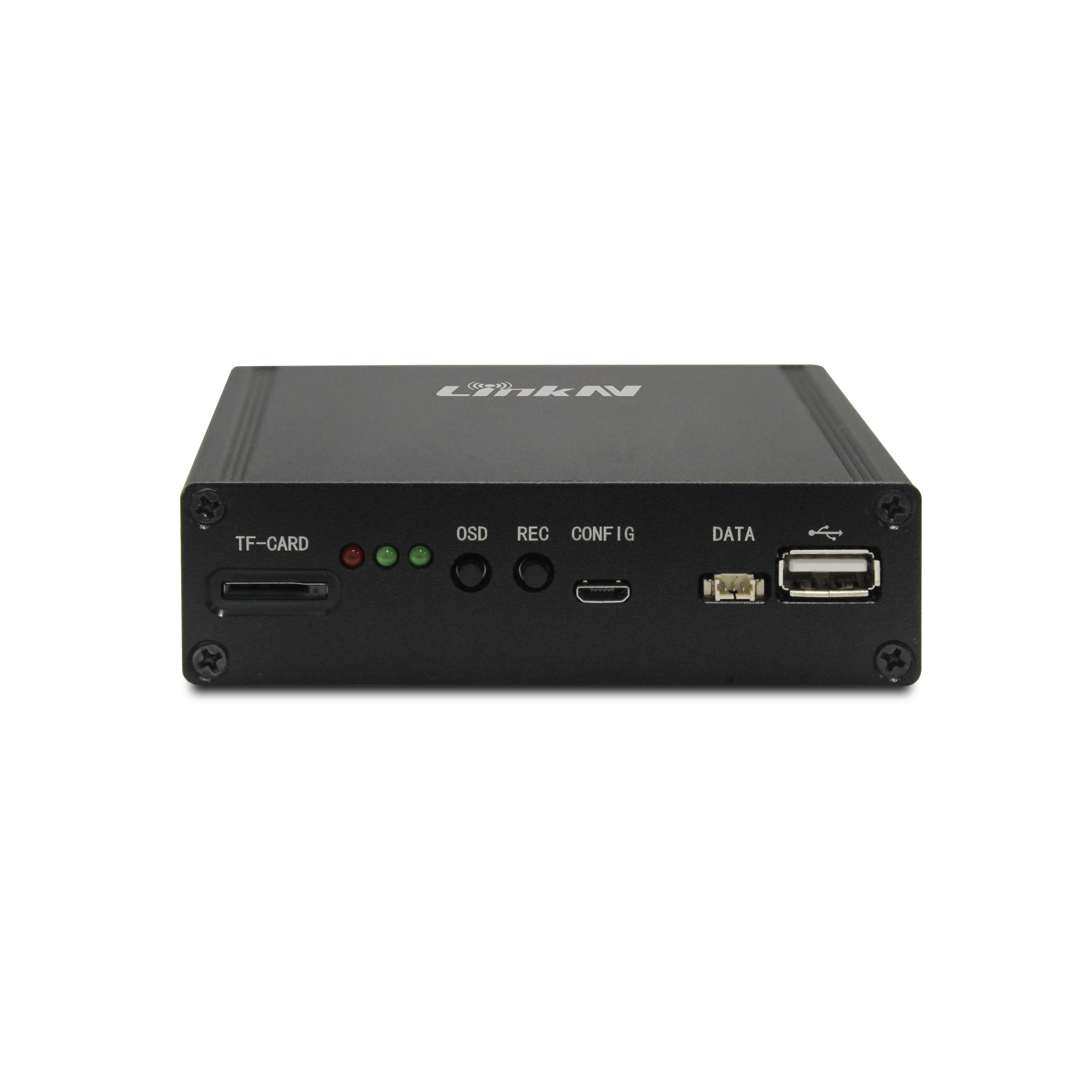

1,TF Card:For TF card installation(128G,FAT32 File System),For video storage.
2,OSD data transmission: For datas output from UAV or other(UART TTL level asynchronous serial port transmission channel),OSD UART Baud rate is 115200.
3,Frequency Modulator:Decimal TTL level( Connect with frequency and power adjust board),Baud rate 9600.We have Frequency Modulator for frequency and bandwidth Serial port setup command please turn to our sales for another document.
4,Indicator:Red is power indicator,down green is working light,up is signal indicator,The faster the flashing,the larger the datas.
5,REC:Recording Button for video storage.
6,OSD:On Screen Display Button,The upper left corner of the screen will show the datas information,this button is for turn on/off the data information.
7,USB:Program Writing.
8,VCC:6-15V Power supply.
9,CVBS output:To connect with external screen,Please note the format AV:720x480 60I(NTSC).
10,HDMI output:To connect with external screen,Please note the format 1920x1080 P60.
11,RF Antenna Interface:Dual antenna reception.
