Product Description

HDMI/SDI/CVBS Video Transmitter COFDM  2U Rack Mount AES Encrytpion


Introduction

The MANET1707-W is a 2U rack-mount feature-rich COFDM FHD video transmitter specially designed for the demanding broadcast and video surveillance fields, it comes with a 2U housing and supports HDMI (SDI) & CVBS inputs, is the ideal solution for establishing rugged wireless video links in all environments including high-speed mobile and urban environments.


Features

■ Advanced COFDM modulation and H.264 encoding

■ Supports HDMI/SDI and CVBS dual inputs

■ 60-100ms low system latency

■ Rack-mounted design for easy installation

■ Rugged aluminum alloy housing


Specification

Transmission Characteristics
ModulationCOFDM
Modulation TypeQPSK(4QAM), 16QAM, 64QAM
Working Frequency300MHz-2.7GHz (Default 700MHz)
RF Bandwidth2/4/6/8MHz (Adjustable)
FEC1/2, 2/3, 3/4, 7/8
Guard Interval1/4, 1/8, 1/16, 1/32
Data Characteristics
Video Input

HDMI/SDI: 1080P/1080i/720P/720i…

AV: NTSC(720x480) / PAL(720x576)

Video CompressionH.264
RF InterfaceN F head
Parameter Control MethodUSB Programmer
EncryptionAES256 (User-defined password)
Electrical Characteristics
Working VoltageAC 220V
Physical Characteristics
Dimensions420*335*88.8mm (2U)
Weight7.1kg

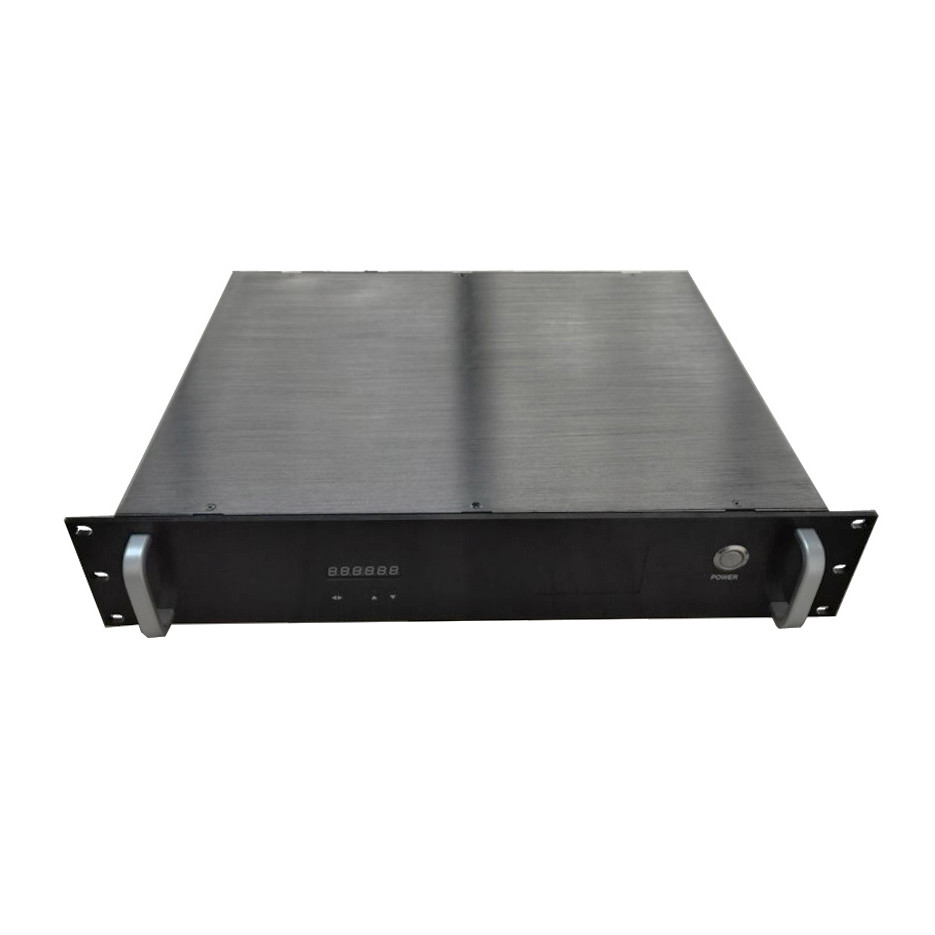

Front Panel

COFDM HDMI/SDI/CVBS Video Transmitter Communication Radio

① Programmer Panel

② Power Button


Rear Panel

COFDM HDMI/SDI/CVBS Video Transmitter Communication Radio

① Power Input Interface – AC 220V

② Reserved Interfaces

③ HDMI Input Interface (SDI as Optional)

④ GND Interface

⑤ Antenna Interface – Type N
