COFDM Video Transmitter for UAV

1
MOQ
USD, RMB
Price
COFDM Video Transmitter for UAV
Features Gallery Product Description Request A Quote
Features
Specifications
Modulation: COFDM
Video Compression: H.264
Receiving Sensitivity: -106dBm (at 4MHz)
Encryption: AES256
FEC: 1/2, 2/3, 3/4, 5/6, 7/8
Highlight:

wireless audio video sender

,

wireless av sender

,

COFDM Video Transmitter for UAV

Basic Infomation
Place of Origin: Shenzhen China
Brand Name: OEM / LinkAV
Certification: CE
Model Number: LKAV-1614
Payment & Shipping Terms
Packaging Details: Brown Carton
Delivery Time: Negotiable
Payment Terms: T/T, PayPal
Supply Ability: 1000pcs/Month
Product Description

Introduction



The LKAV-1614 is a COFDM wireless video transmitter specially designed for UAV applications. With advanced COFDM and H.264 technologies at its core, it enables to establish rugged wireless video link under all environments including high-speed mobile. The compact size makes it ideally for UAV installations.





Features



  • HDMI and CVBS dual video inputs
  • 60-80ms low system latency
  • Range up to 10-20km LOS
  • Frequency 300MHz-2.7GHz customizable
  • Rugged aluminum alloy housing
  • Compact size and light weight
  • AES256 encryption



Specification



Transmission Characteristics
Modulation COFDM
Modulation Type QPSK(4QAM), 16QAM, 64QAM
Frequency 300MHz-2.7GHz (Default 700MHz)
Transmit Power 30dBm
RF Bandwidth 2-8MHz
FEC 1/2, 2/3, 3/4, 7/8
Guard Interval 1/4, 1/8, 1/16, 1/32
Transmission Range Air-to-ground up to 20km, LOS
Data Characteristics
Video Input

HDMI: 1080p/1080i/720p/720i…(self-adaption)

AV: 720x480/60i (NTSC), 720x576/50i (PAL) (self-adaption)

Video Compression H.264
RF Interface SMA F head
Control Method Using the LED Control Box
Encryption AES256 (supports to set password)
Electrical Characteristics
Working Voltage DC12V
Working Current ≤1.2A (@12V)
Power Consumption ≤14.37dBm
Physical Characteristics
Weight 105g
Dimensions 77x54x23.5mm
Working Temp. -20℃~70℃

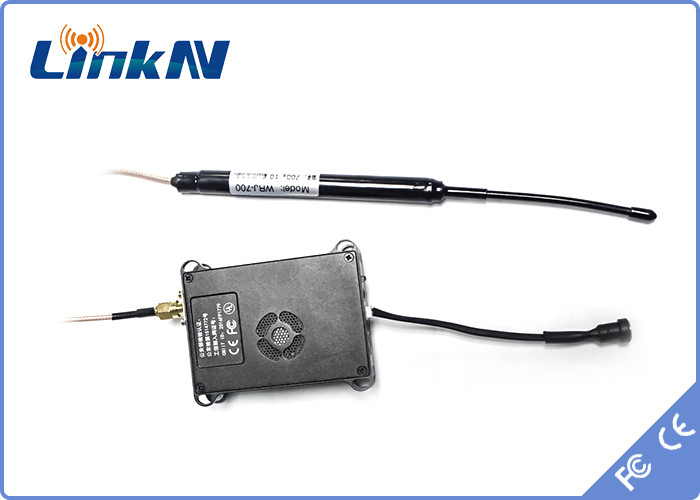

COFDM Video Transmitter for UAV 0

  1. Antenna interface – SMA F

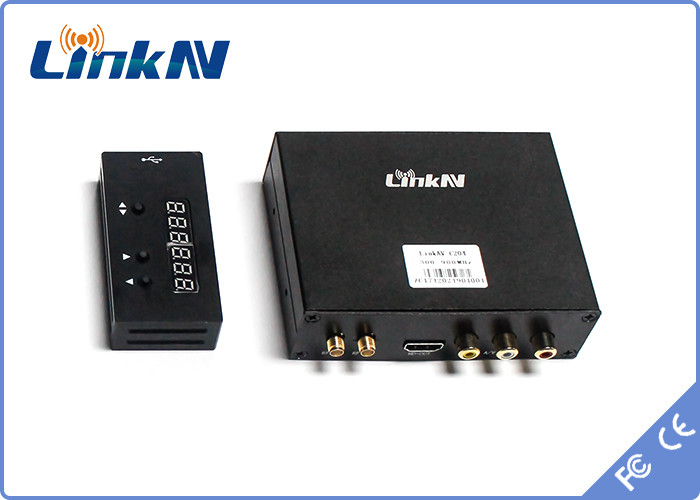

COFDM Video Transmitter for UAV 1

  1. Power input – 2-pin, DC 12V
  2. AV video input – CVBS, analog SD
  3. HDMI video input – digital HD
  4. RJ45 port – reserved
  5. Data port – reserved
  6. CFG port – configuring port
  7. Power indicator – red light
