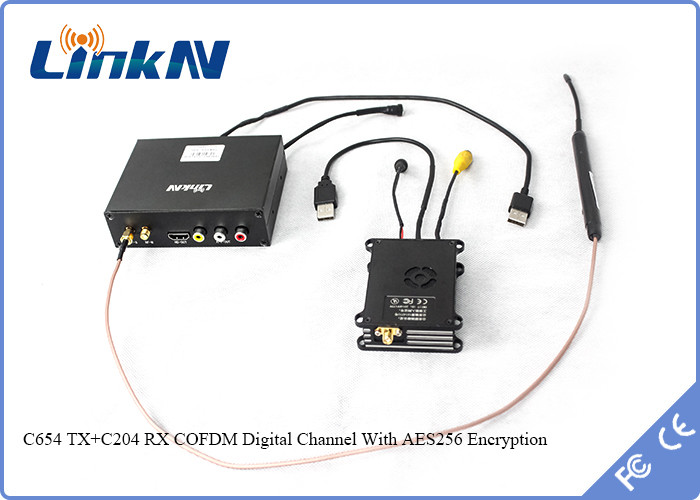

15km UAV Video Link COFDM AES256 Low Latency 300-2700MHz 1W Power
The LKAV-1614 is a COFDM wireless video transmitter specially designed for UAV applications. With advanced COFDM and H.264 technologies at its core, it enables to establish rugged wireless video link under all environments including high-speed mobile. The compact size makes it ideally for UAV installations.
■ HDMI and CVBS dual video inputs
■ 60-80ms low system latency
■ Range up to 10-20km LOS
■ Frequency 300MHz-2.7GHz customizable
■ Rugged aluminum alloy housing
■ Compact size and light weight
■ AES256 encryption
|Modulation Type||QPSK(4QAM), 16QAM, 64QAM|
|Frequency||300MHz-2.7GHz (Default 700MHz)|
|FEC||1/2, 2/3, 3/4, 7/8|
|Guard Interval||1/4, 1/8, 1/16, 1/32|
|Transmission Range||Air-to-ground up to 20km, LOS|
AV: 720x480/60i (NTSC), 720x576/50i (PAL) (self-adaption)
|RF Interface||SMA F head|
|Control Method||Using the LED Control Box|
|Encryption||AES256 (supports to set password)|
|Working Current||≤1.2A (@12V)|
LKAV-1614 transmitter can transmit images air to ground up to 20km, depending on mode and frequency.
Transmitter Antenna:SMA Female head,Standard with omni directional feeder whip antenna,antenna gain is 3.5dbi.
(Note: Please don’t turn on the transmitter without TX antenna ,otherwise it cound be damaged.)
FM board Interface:From left to right the pins are:1.DC5V,2.GND,3.RXD,4.TXD, If needed, transmitter parameters can be modified by our FM board or through the computer serial port.
Data interface: Can be connected with computer,change parameters via serial port TTL level,Transparent baud rate factory default is 115200, Please confirm the details in our instruction list.
Power Interface: voltage12V DC, current 1A
A/V CVBS Signals Input: 3.5MM / 3 audio and video interface, AV cable connect to the analog camera.
Working Indicator:Work indicator are red and yellow digital tubes,normal work power on with red indicator,Connected to the signal source,yellow light blinks when the transmitter normally sends data,The faster the flash, the larger the transmitted data.
HDMI input:HDMI-C interface, you can use the HDMI (C-D) cable to connect high-definition camera.
Airborne video transmitting equipment-----Mini COFDM UAV Video Transmitter
LinkAV produce the broadcast-level high-definition video transmission system by adapting the leading COFDM modulation technology, with narrow bandwidth (2-8MHz adjustable) and strong anti-multipath interference ability, overcome the analog and conventional modulation techniques, High-speed transmission and real-time high-quality non-line-of-sight transmission images, particularly suitable for using under complex environments; video coding using H.264 standard, 1080P high-definition, clear picture quality, bright colors, smooth image characteristics.
