5km 600Mbps Ethernet Wireless Bridge IP MESH Web UI 24V 48V POE

5km 600Mbps Ethernet Wireless Bridge IP MESH Web UI 24V 48V POE
Features Gallery Product Description Request A Quote
Frequency: 5.8GHz, 5.2GHz, 2.4GHz
Transmission Range: Up To 5km Each Hop
Channel Bandwidth: 20M/40MHz/80MHz/160MHz
Interface: LAN*3, Antenna*8
Output Power: 5G_L/5G_H: 25dBm*2; 2.4G: 23dBm*4
Receiving Sensitivity: Max -96dBm
Data Rate: Up To 600Mbps
High Light:

600Mbps Ethernet Wireless Bridge


5km Ethernet Wireless Bridge


600Mbps Ethernet Wireless Transceiver

Basic Infomation
Place of Origin: Shenzhen China
Brand Name: OEM / LinkAV
Certification: CE
Model Number: LKAV-3718
Payment & Shipping Terms
Packaging Details: Brown Carton
Delivery Time: Negotiable
Payment Terms: T/T, PayPal
Supply Ability: 1000pcs/Month
Product Description

5km 600Mbps Ethernet Wireless Bridge IP MESH Web UI 24V 48V POE


5km 600Mbps 5G/2.4G Wireless Ethernet Bridge IP MESH WebUI 24V/48V PoE

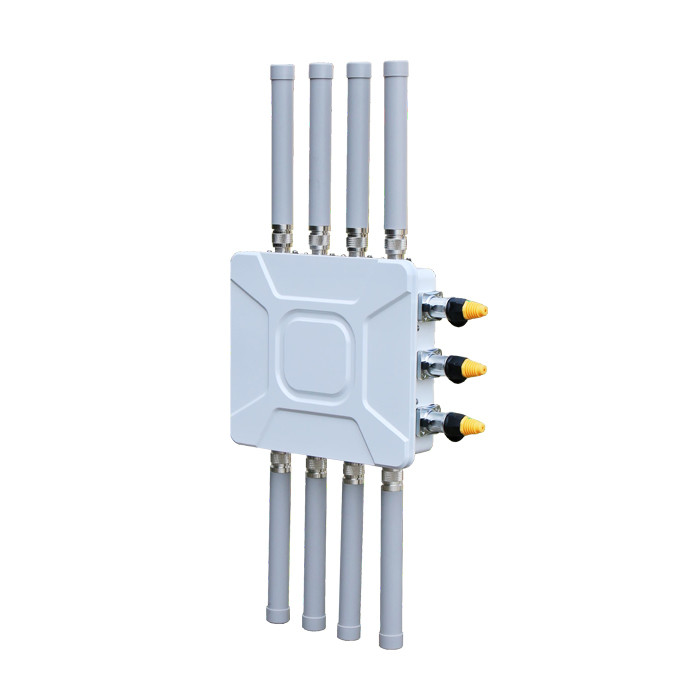

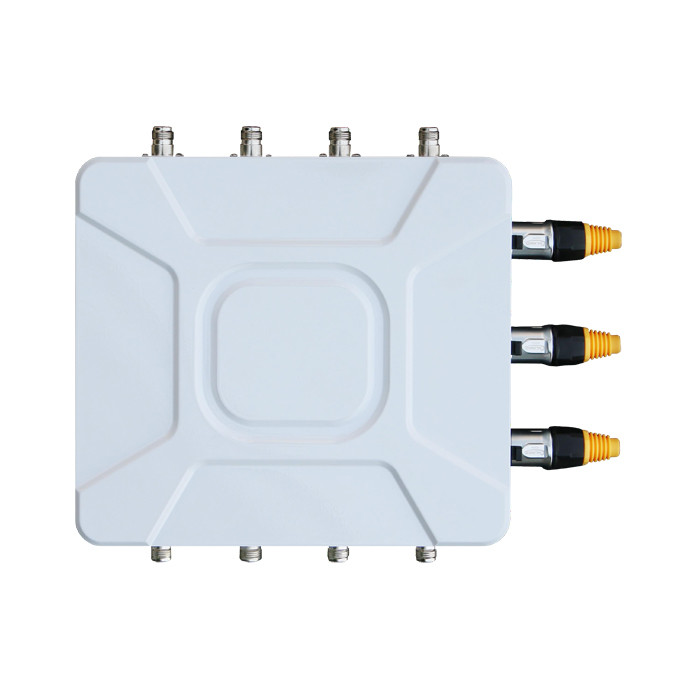

The LKAV-3718 is a high-performance three-band MESH wireless bridge based on Qualcomm 11AC Wave2.0, which integrates two independent non-interference high-power 802.11ac Wave2.0 5G modules and a 2.4G WiFi module. Supports three-band simultaneous work, 5G_L and 5G_H can be used as MESH dual links at the same time, and 2.4G can be used for independent coverage. It can be widely used in various projects that require high-speed bridging, multi-hop relay, large-capacity access, and fast roaming.



■ Independent tri-band 802.11AC Wave2.0, support 5G band MESH dual-link networking and 2.4G/5G dual-band WiFi coverage

■ High power, 5G frequency band power up to 28dBm, 2.4G up to 26dBm

■ High bandwidth, point-to-point rate up to over 600Mbps, MESH dual link multi-hop without speed reduction

■ Supports MU-MIMO

■ Supports TDMA time division multiple access (point-to-multiple mode)

■ Large-capacity access, the number of clients that can be connected to the tri-band is more than 200

■ Supports 802.11KV automatic roaming protocol

■ Supports WAPI encryption

■ Scalable 4/5G public network access



■ Tunnel

■ Pipe Gallery

■ Oilfield

■ Mine

■ Hall/Stadium

■ Industrial Automation

■ Park

■ Farm

■ Fleet Networking




Data Rate Max 600Mbps



Wireless Protocol 802.11ac Wave2.0
Frequency Band 5G_L, 5G_H and 2.4G
Output Power

5G_L/5G_H: 25dBm*2

2.4G: 23dBm*4

Frequency 5.8GHz, 5.2GHz, 2.4GHz
Receiving Sensitivity Max -96dBm
Channel Bandwidth 20M/40MHz/80MHz/160MHz
Range (each unit) ≥5000m (omnidirectional antenna)
Access Capacity ≥200 units
Configuration Method WebUI
PC Platform MESHCOM (under developing)
Operating Temperature -40℃ ~ +65℃
Working Humidity 5% ~ 95% (non-condensing)
Storage Temperature -45℃~ +85℃

w/o antenna: 2.3kg

w/ antenna: 2.8kg

Dimensions 230x200x60mm (L x W x H)
Power Supply 24V or 48V POE (IEEE802.3af)
Power Consumption 16W average
