Tactical Dual-Band IP MESH Radio 580MHz 1.4GHz 10W Power Output AES Encryption DC 24V
Introduction
The MANET3703 is a dual-band MESH video data base station designed for urban emergency operations. It supports 580MHz and 1.4GHz dual-band terminal access at the same time. Based on integrated portable design, it supports one-button boot, and can be installed anywhere. It has a data display touch screen, which can display the device status and connection status in real time. Its parameters can be quickly configured through the touch screen. It supports 4G/5G public network access (SIM), GPS/DB positioning, voice intercom, and optical fiber transmission.
Features
■ Supports 580MHz and 1.4GHz dual-band
■ With touch screen for easy configuration
■ All-IP transparent data transmission
■ Up to 85Mbps throughput
■ Supports 4G/5G public network (SIM)
■ Supports WIFI and GPS/BD positioning
■ Supports voice intercom
■ High safety AES encryption
■ With dual fiber interfaces support fiber access
■ Highly integrated portable all-in-one design
■ With rugged IP66 housing
Specification
| Transmission Characteristics | |
| Working Band | 580MHz & 1.4GHz Dual-Band |
| Channel Bandwidth | 2/5/10/20/40MHz |
| RF Channel | 4T4R |
| Output Power | 40dBm (2x5W MIMO) |
| WIFI | 2.4G MIMO (2x100mw) |
| Modulation Type |
DSSS/CCK BPSK/QPSK OFDM BPSK/QPSK/16-QAM/64-QAM |
| Data Rate | Up to 85Mbps |
| Network Capability | 9 hops and no less than 64 nodes |
| Fiber Interface | FC*2 |
| Public Network | 4G/5G (SIM) |
| Positioning | GPS/BD |
| Encryption | AES |
| Electrical Characteristics | |
| Working Voltage | DC 24V |
| Power Consumption | ＜100W Average |
| Physical Characteristics | |
| Weight | 8.4kg |
| Dimensions | 370*240*120mm |
| IP Rating | IP66 |
| Storage Temp. | -45℃~85℃ |
| Working Temp. | -40℃~70℃ |
| Working Humidity | 5%RH-95%RH (Non-Condensing) |
Dimensions

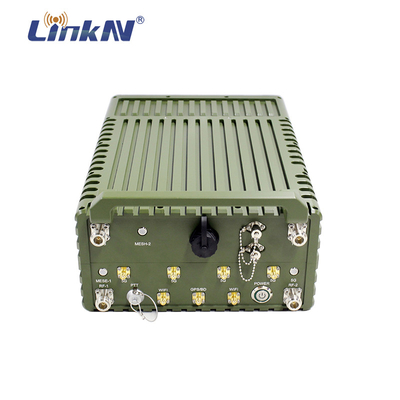

Panel Description
① GPS/BD Antenna Interface
② WIFI Antenna Interface
③ Power Switch
④ 1.4GHz Antenna Interface
⑤ 5G Indicator
⑥ 5G Antenna Interface
⑦ 5G Antenna Interface
⑧ 580MHz Antenna Interface
⑨ Fiber Interface
⑩ Touchscreen Display
⑪ WIFI Antenna Interface
⑫ PTT Intercom Interface
⑬ 5G Antenna Interface
⑭ 1.4GHz Antenna Interface
⑮ 1.4GHz Indicator
⑯ 5G Antenna Interface
⑰ 580MHz Antenna Interface
⑱ 580MHz Indicator
⑲ LAN Interface
⑳ SIM Card Slot
㉑ DC Power Supply Interface
Topology Diagram
■ Chain Type
■ Star Type
■ Mesh Type
■ Random Type
