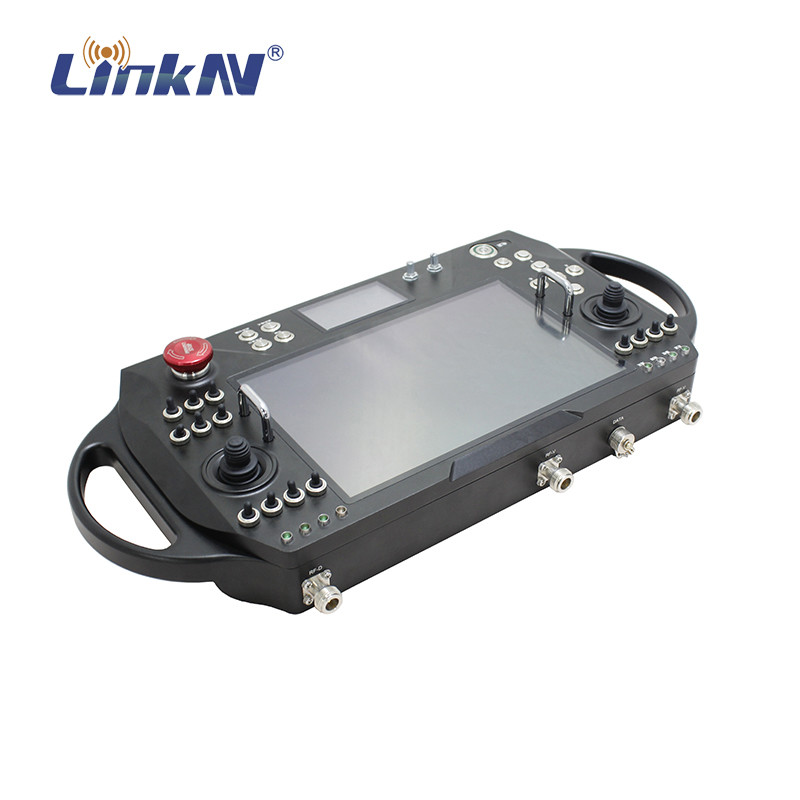

Long Range Remote Control for UGV Robots with 10.1-inch Display Battery Powered
Introduction
The LKAV-1120 is a powerful IP67 handheld ground control station. It integrates video stream receiving, data stream sending/receiving and other functions. The main function is to receive and display video and data of the on-board devices, send control commands to the end equipment, such as vehicle motion control, PTZ camera control, water cannon control, headlight control, alarm trigger, speed control, emergency stop button, screen selection, etc.
Features
■ Video frequency 200-860MHz & Data 410-500MHz
■ Up to 1.5km transmission range
■ With 10.1-inch HD high-brightness screen
■ With 3.2-inch touch screen for data display
■ Supports single view or quad-view
■ Up to 3~4 hours battery life
■ Supports data overlay and real-time display
■ Rugged aluminum alloy housing
■ IP67 dustproof and waterproof
Specification
| Display Size | 10.1” |
| Display Resolution | 1280*800pixels |
| Display Brightness | 1000nits |
| Video Display | 4-Channel video |
| Data Display | 3.2” touch screen |
| Video Frequency | 200-800MHz customizable |
| Video Bandwidth | 2-8MHz adjustable |
| Data Frequency | 410-500MHz customizable |
| Data Bandwidth | 9600bps |
| Receiving Sensitivity | -106dBm |
| Transmission Range | 1.5km LOS (ground-to-ground) |
| Video Output | HDMI |
| Video Compression | H.264 |
| Video Storage | TF-Card, max 128G, FAT32 |
| RF Interface | N F*3 (Video*2, Data*1) |
| Encryption | AES256 |
| Power Input Interface | DC Jack |
| Config Interface | 6PIN Aviation Connector |
| Working Voltage | DC 12V |
| Battery Capacity | 10Ah (3~4 hours) |
| Power Consumption | ≤24W |
| Working Temp. | -20℃~+50℃ |
| IP Rating | IP67 |
| Dimensions | 476*220*74.5mm (w/o antenna) |
| Weight | 4.5kg (w/o antenna) |
Panel Description
❶ 5.8G 3dBi Antennas
❷ Toggle Switch SW2
❸Toggle Switch SW1
❹ Left Joystick X1. Y1

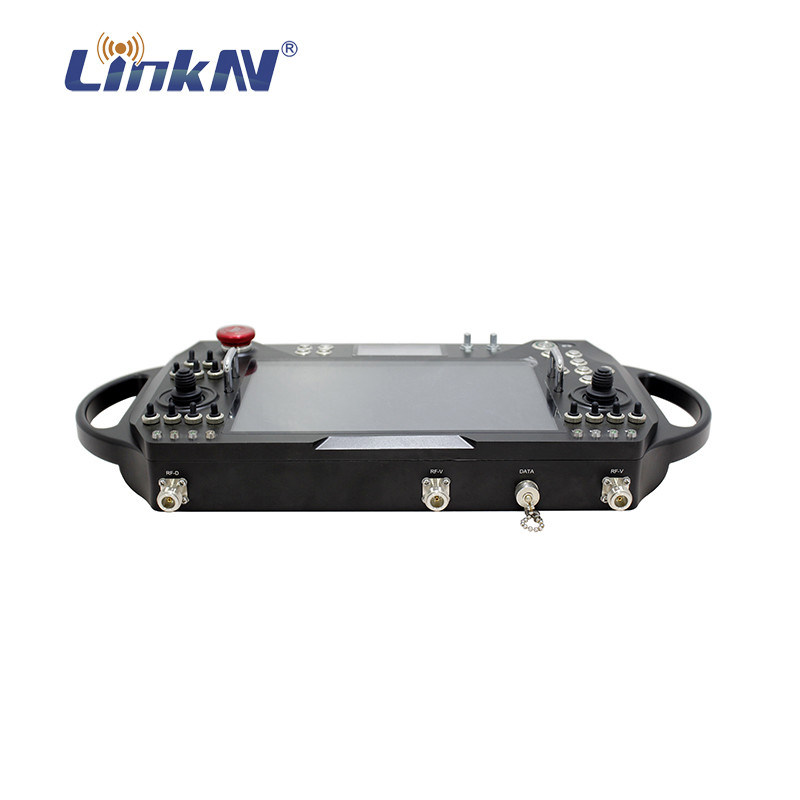

❶ Data Antenna Interface – N F
❷ Video Antenna Interface – N F
❸ Config Interface
❹ Video Antenna Interface – N F
