Rack Mount MESH Radio High Bandwidth AES Encryption Wide Voltage
Introduction

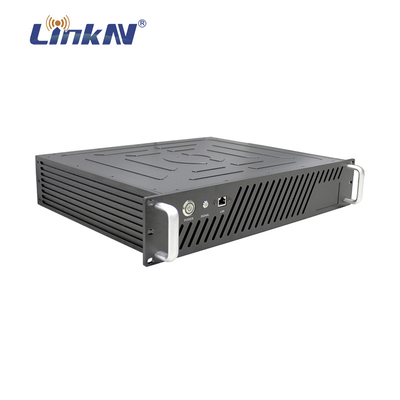

The MANET3314-W is a rugged 2U rack mount IP MESH radio features HDMI input/output and LAN port (4G, GPS/BD, PTT and WiFi as optional). It can be applied to multiple scenarios such as a fixed point relay or to be installed on a moving vehicle, a vessel or an unmanned ship, etc.
Features
■ 43dBm high RF power output
■ Supports 100-240V AC wide voltage
■ High bandwidth up to 82Mbps
■ Supports AES encryption
■ Supports HDMI input/output and LAN
■ With dual antennas MIMO
■ Full IP duplex transparent data transmission
■ Flexible networking and rapid deployment
■ 2U rack mount design
■ With rugged aviation aluminum housing
Specification
| Transmission Characteristics |
| Default Frequencies |
1400-1460MHz (350MHz-4GHz customizable) |
| Channel Bandwidth |
2M/5M/10M/20MHz/40MHz |
| RF Channel |
2T2R |
| WIFI (Optional) |
2.4G WIFI (2x100mw) |
| Modulation Type |
BPSK/QPSK/16-QAM/64-QAM/DSSS/CCK |
| Data Rate |
Up to 82Mbps |
| Encryption |
AES |
| Interfaces |
| RF Interface |
N F x2 |
| PTT Interface (Optional) |
LEMO 7-pin |
| 4G (Optional) |
Micro SIM x1 |
| Electrical Characteristics |
| Working Voltage |
100-240V AC (DC as optional) |
| Physical Characteristics |
| Weight |
8kg |
| Dimensions |
483*390*89mm |
| Working Humidity |
5%RH-95%RH (Non-Condensing) |
Dimensions
W483*D390*H89mm

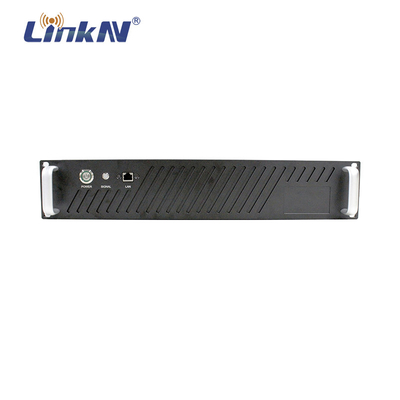

Front Panel
① Power Push Button
② Signal Indicator – red and green dual color
③ LAN Port – RJ45
④ Nameplate Area - laser

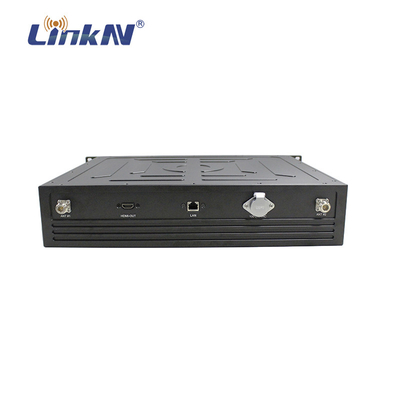

Rear Panel
① Antenna Interface #1 – N F
② HDMI Input (Output) Interface
③ LAN Interface – RJ45
④ Power Input Interface – 3PIN
⑤ Antenna Interface #2 – N F
Topology Diagram
■ Star Type
■ Mesh Type
■ Random Type
