Long Range EOD Robots Wireless Video System FHD CVBS NTSC PAL COFDM AES256 Encryption Low Delay

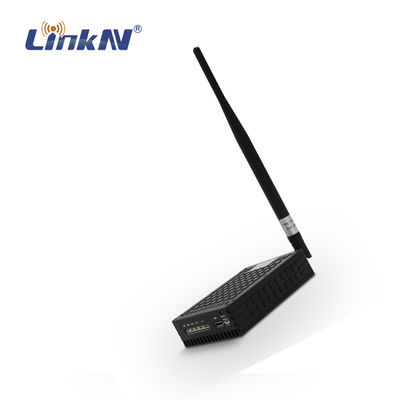

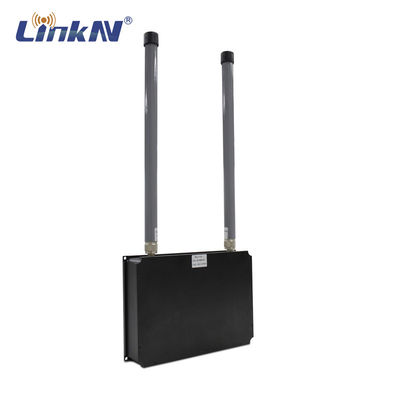

Introduction
The LKAV-1638 & 1216 is a compact wireless COFDM digital video system specifically designed for UGV and EOD Robot. It employs low delay H.264 codec for excellent video quality over the wireless link, can transmit FHD video up to 1-2km NLOS, is ideal for establishing rugged wireless video link in numerous environments, including high-speed mobile and urban environments.
Features
■ Advanced COFDM modulation
■ High efficient H.264 codec
■ 200-2700MHz wide frequency for selection
■ Up to 1-2km NLOS for FHD video transmission
■ 60-100ms low system delay
■ Supports HDMI and CVBS dual video formats
■ Compact size and light weight
■ Rugged aluminum alloy housing
■ AES256 encryption
Specification
Transmission Characteristics | |
Modulation | COFDM |
Modulation Type | QPSK (4QAM), 16QAM, 64QAM (Default QPSK) |
Frequency | 200-2700MHz (Default 700MHz) |
Transmit Power | ≤30dBm |
RF Bandwidth | 2-8MHz adjustable |
FEC | 1/2, 2/3, 3/4, 5/6, 7/8 |
Guard Interval | 1/4, 1/8, 1/16, 1/32 |
Transmission Range | 1-2km NLOS |
Data Characteristics | |
Video Input |
HDMI (Mini): 1080p/1080i/720p/720i AV: 720x480/60i (NTSC), 720x576/50i (PAL) |
Video Compression | H.264 |
RF Interface | SMA F head |
Parameter Settings | Using the USB Programmer |
Encryption | AES256 (User-defined password) |
Link Latency | 60-100ms |
Movement Speed | Supports ≥120km/h |
Electrical Characteristics | |
Working Voltage | DC12V |
Working Current | ≤1A (@12V) |
Power Consumption | ≤12W |
Physical Characteristics | |
Weight | ≤260g (w/o antenna) |
Dimensions | 120x85x28mm |
Working Temp. | -10℃~70℃ |
Dimensions

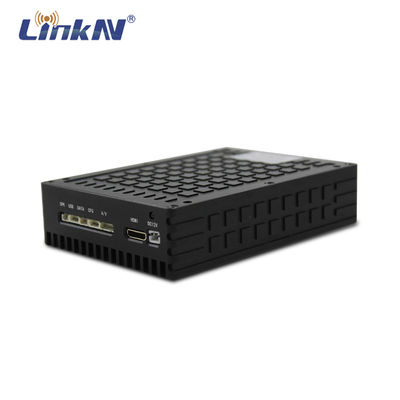

Front Panel
① Speaker output, reserved.
② USB interface for firmware upgrade, reserved.
③ Data UART, reserved.
④ Configuring UART, connect with FM Box using the FM Data Cable to adjust system parameters.
⑤ Analog video and audio input, 720x480 60I (NTSC) and 720x576 50I (PAL) self-adaptive
⑥ Mini HDMI input, type C
⑦ Power input, 2 pin, DC 12V
⑧ LED indicator for power, red light

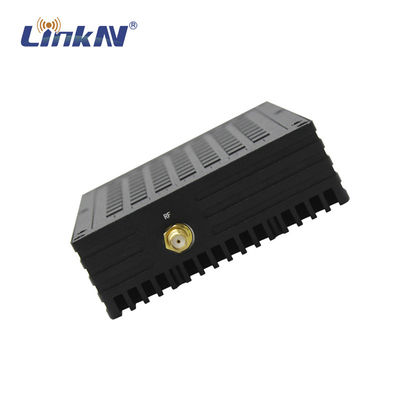

Rear Panel
① Antenna interface, SAM female
Application
FAQ
Q1: Are you a manufacturer or a trading company?
We're professional manufacturer specializing in wireless transmission systems.
Q2: Why should I choose you?
You'll get competitive price, prime quality, satisfied service and long warranty.
Q3: What kind of product service can I have?
OEM & ODM service.
Q4: What kind of warranty do you offer?
We offer one-year-warranty and lifelong maintenance.
Q5: What're the payment terms?
We accept bank transfer, PayPal, or cash payment.
Q6: Packaging & Shipping?
Neutral brown carton & Ship via DHL, FedEx, UPS, TNT or by air/sea.
Q7: How long for delivery?
1-3 weeks for regular model and 3-5 weeks for customized model.
Q8: Can I order 1 sample for test?
Yes, we welcome sample order, mixed samples are acceptable.
Q9: Do you have any MOQ limit?
No limit, 1pc is acceptable.
Q10: Is it OK to print my logo on the product?
Yes, please inform us formally before production and confirm the design firstly
