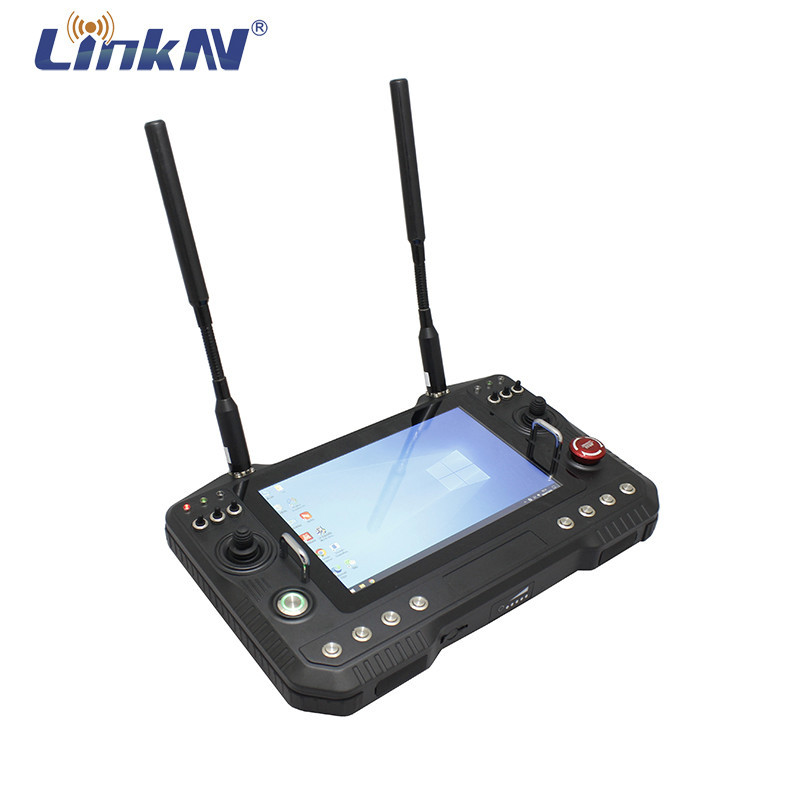

UVG Remote Control Windows 1.4GHz 580MHz 4W MIMO AES256
Specification
| Operation System | Windows 10 (Windows 7 as optional) |
| Hardware |
CPU: i5-10210u; Hard Disk: 256G-SSD; Memory: 8G-DDR4 |
| Display Size | 10.1-inch |
| Display Resolution | 1280*800pixels |
| Display Brightness | 1000nits |
| Video Display | 1080P |
| Frequency | 1400-1460MHz |
| RF Bandwidth | 5M/10M/20MHz/40MHz |
| Output Power | 36dBm (2x2W MIMO) |
| RF Channels | 2T2R |
| Modulation Type | BPSK/QPSK/16-QAM/64-QAM/DSSS/CCK |
| RF Interface | TNC*2, SMA*1 |
| LAN Interface | RJ45 |
| Extension Port | USB |
| Storage Interface | TF-Card slot |
| Charging Interface | DC |
| Transmission Range | Up to 1-3km |
| Data Rate | Up to 90Mbps |
| Encryption | AES |
| WIFI | 2.4/5.8GHz |
| Dimensions | 370*240*51mm |
| Weight | 3.65kg (w/ Battery) |
| Working Temp. | -20℃~+60℃ |
| IP Code | IP66 |
| Working Voltage | DC 12V |
| Battery Capacity | 15Ah (4-6 hours) |
Introduction
The MANET3110 is a waterproof remote control based on Windows OS, it supports touch screen operation, customer customization and self-development. Its communication is based on MESH network, and the point-to-point communication distance can reach 1-3km. It supports online monitoring and operation of no less than 64 devices at the same time without mutual interference. The node communication delay is within 100 milliseconds, and supports 1-8 channels of video display at the same time, with intelligent control system, supports automatic intelligent detection when starting up, automatic error alarm, real-time data and video display and local storage, supports MESH network configuration, supports parameter adjustment of intelligent robots, with GIS map, supports positioning, with the virtual control panel supports self-definition of joystick, switch and button functions.
Features
■ With Windows 10 OS (Windows 7 as optional)
■ Supports customer customization and self-development
■ With 10.1-inch HD 1000nits high-brightness IPS LCD screen
■ Supports 1080p FHD video streaming and local storage
■ Supports one remote control controls multiple robots
■ Support intelligent self-test after power-on
■ Support real-time display of data
■ With virtual control panel
■ Support joystick, switch and button function customization
■ High-capacity lithium-ion battery supports 4-6 hours operation
■ Rugged IP66 waterproof, dustproof and drop-proof housing
