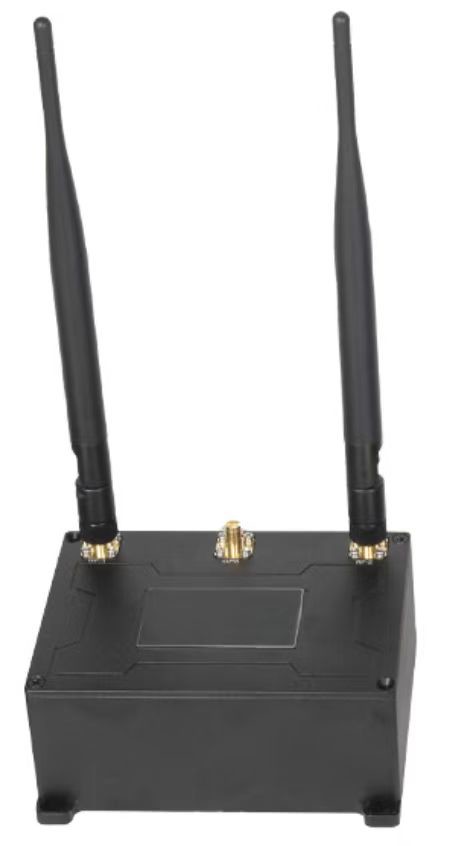

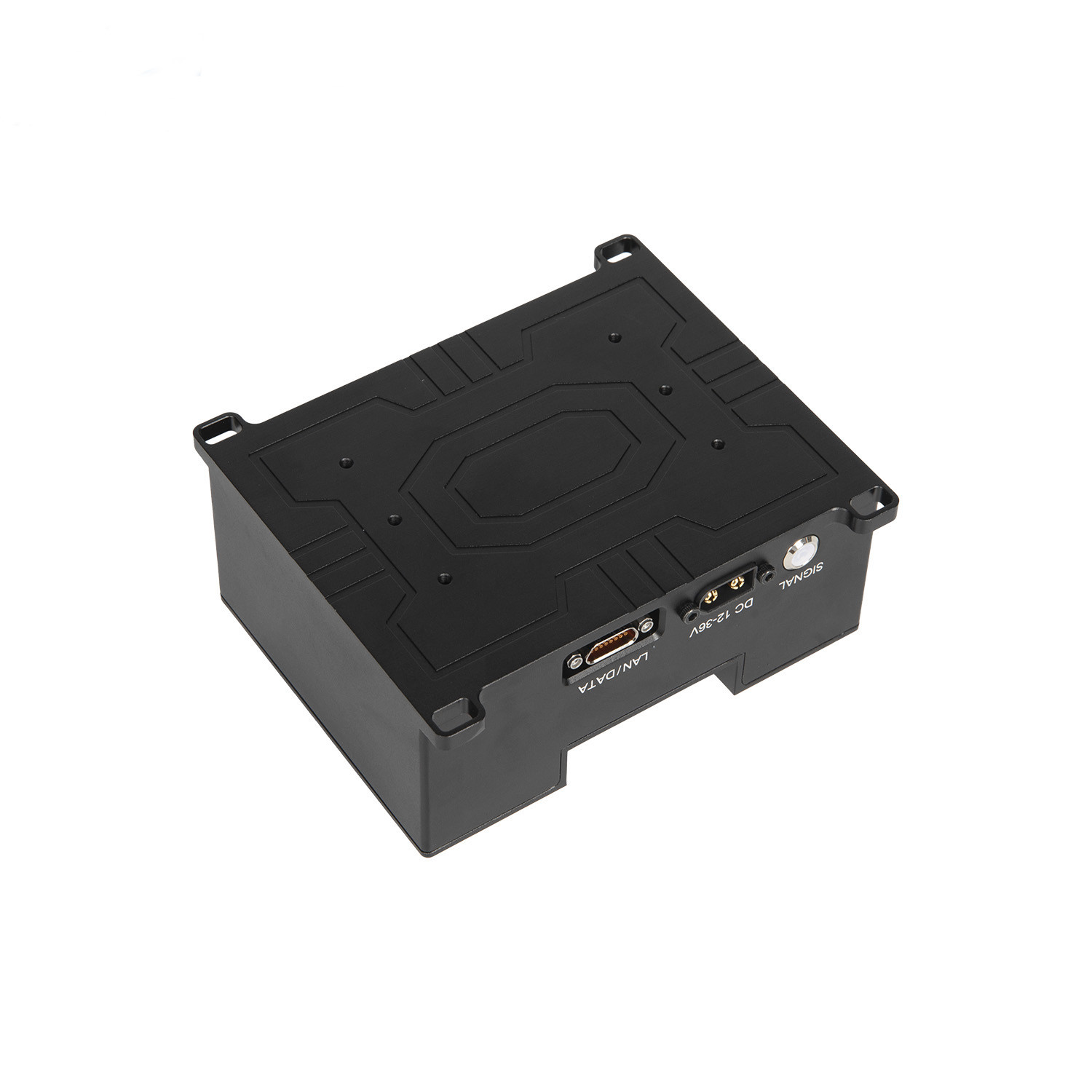

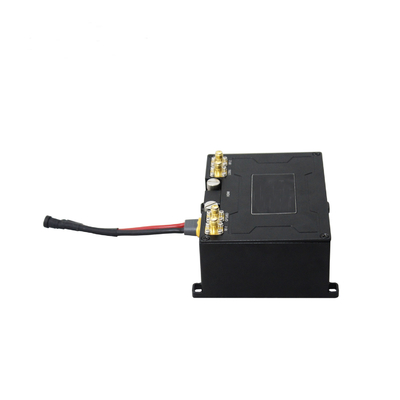

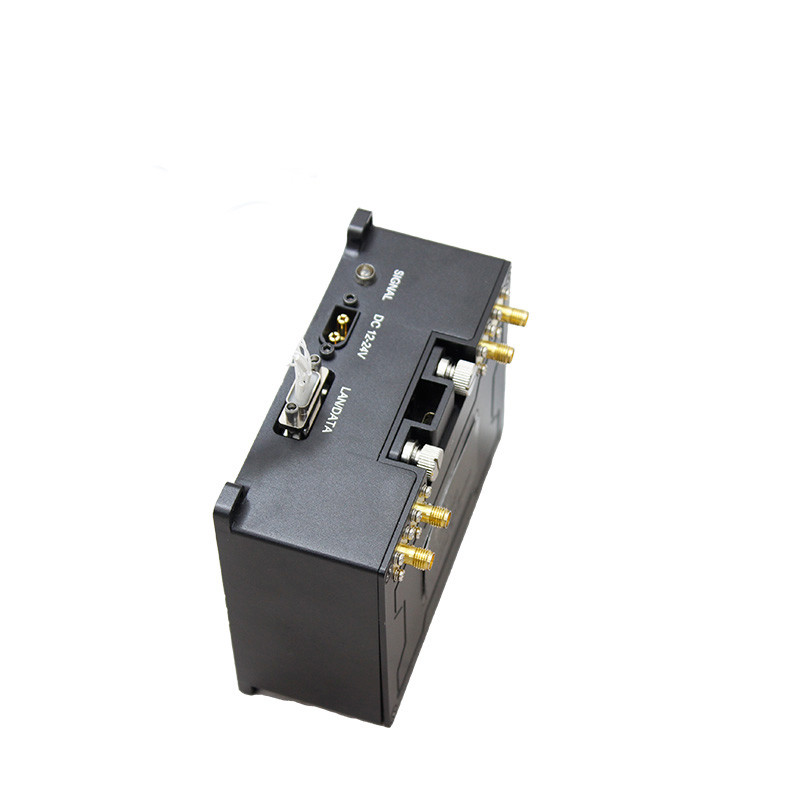

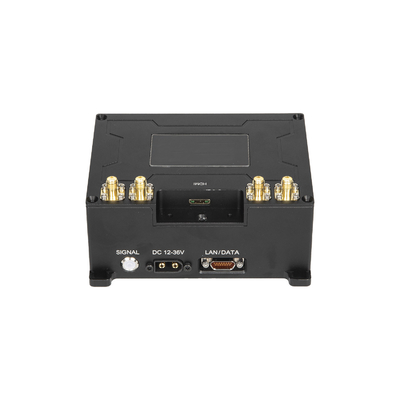

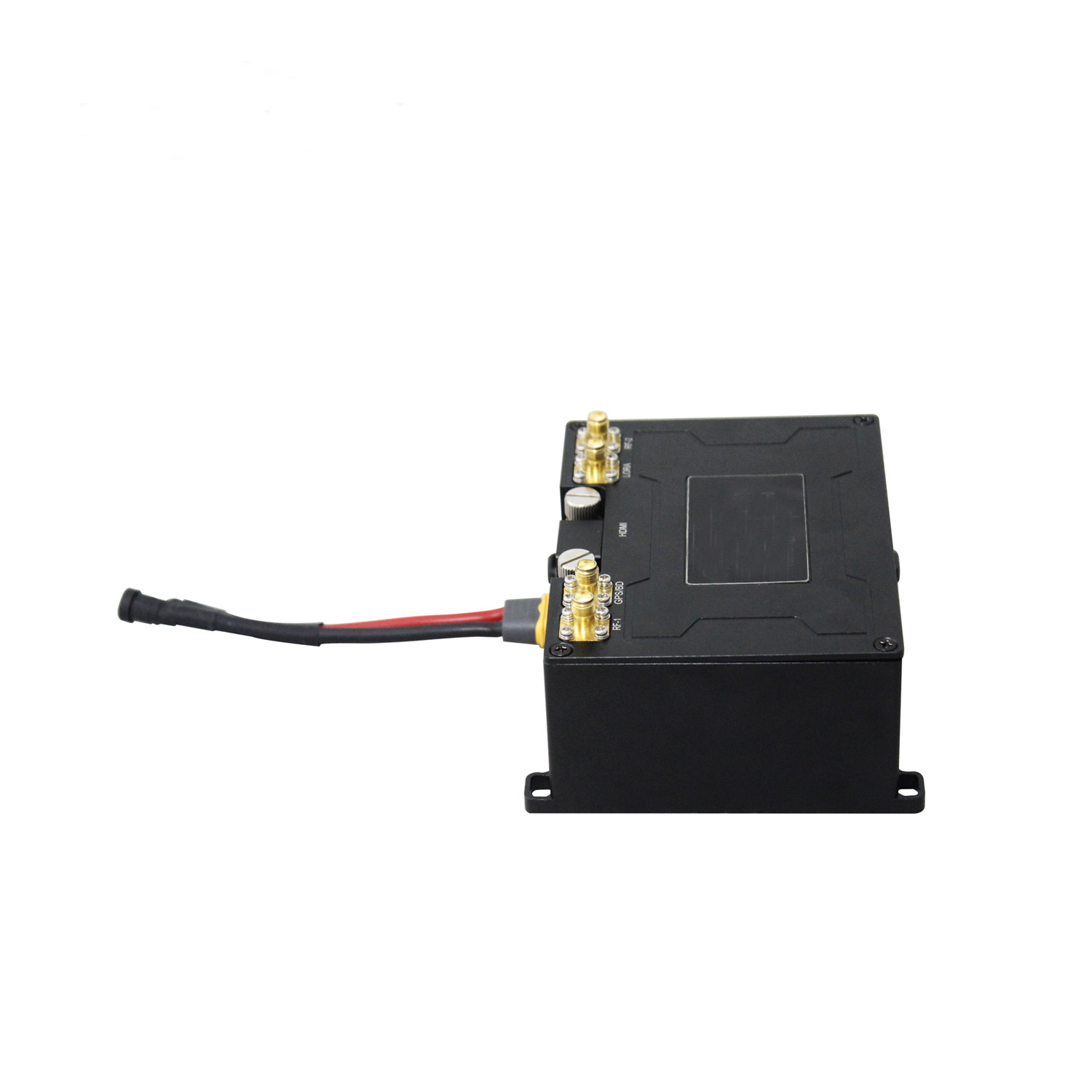

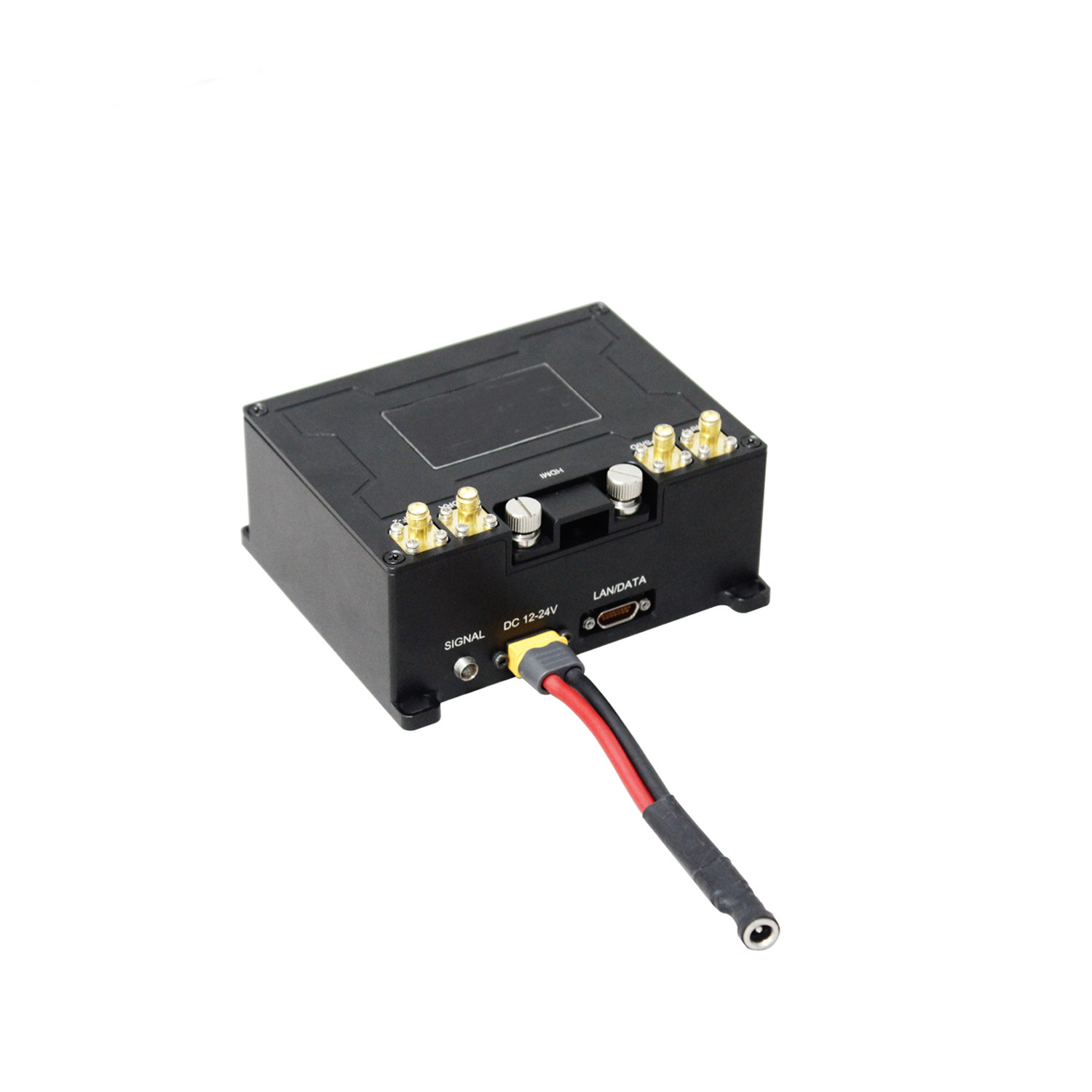

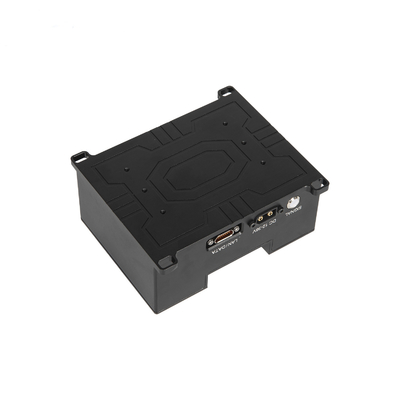

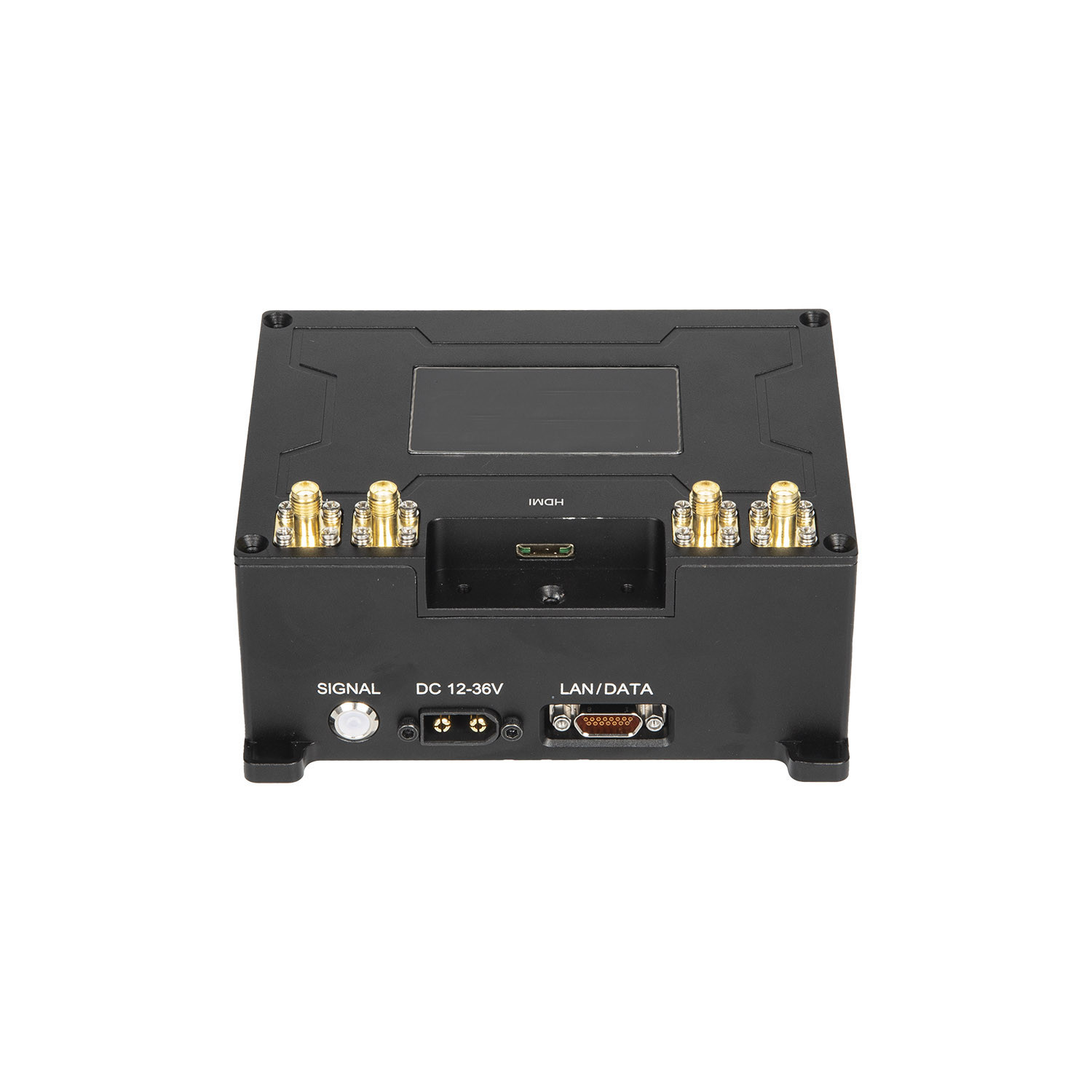

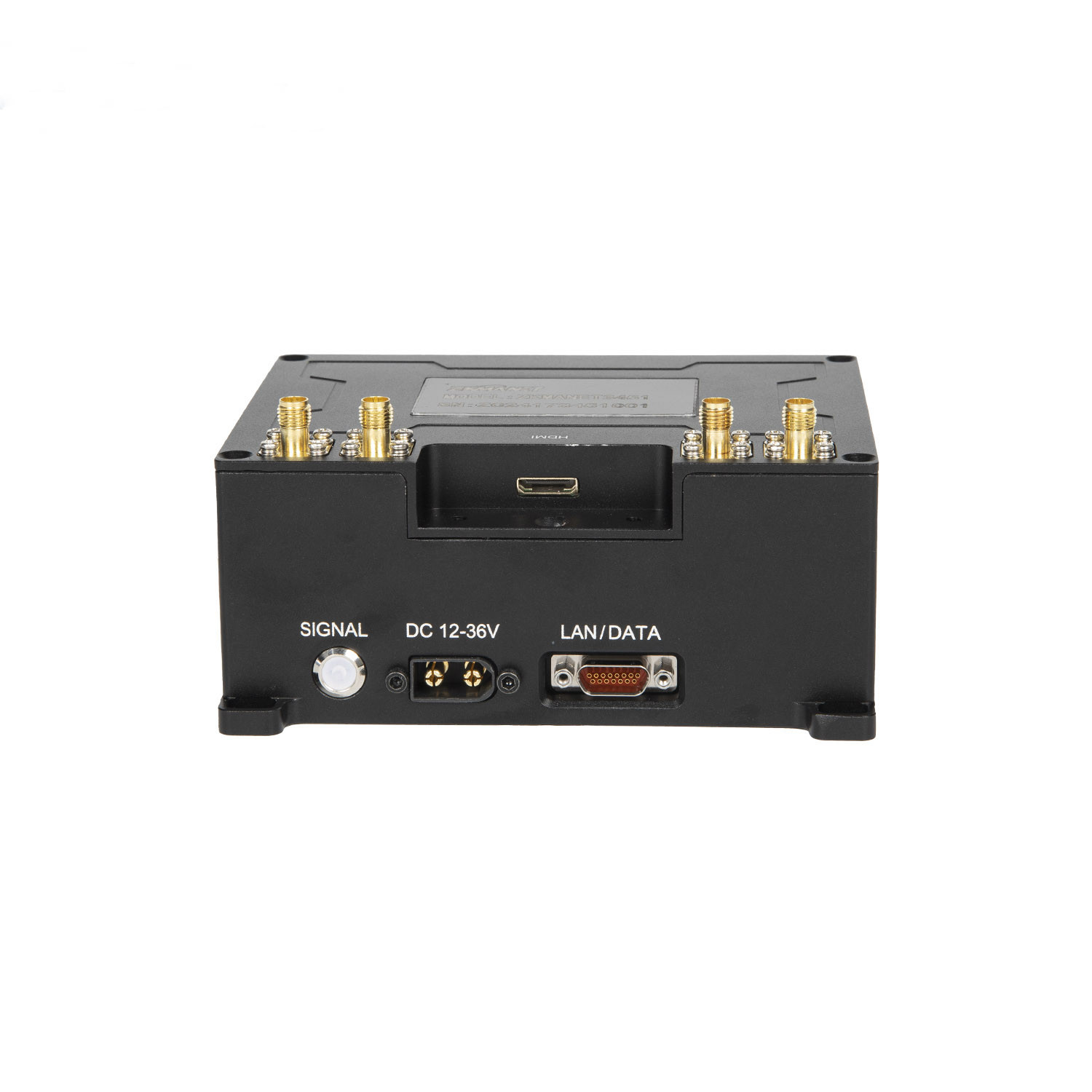

The MANET9401-W is an airborne Mesh radio that utilizes an FPGA solution. It supports adaptive frequency hopping and selection, automatically choosing the optimal frequency in the presence of electromagnetic interference. This enables broadband network self-organization and transmission in complex scenarios. It can be used in various communication combinations for different usage scenarios, such as on moving UAVs or USVs, allowing for easy plug-and-play operation without the need for configuration or parameter changes. It is primarily used for multimedia interconnection between drones and base stations, as well as serving as a Mesh relay.
| RF Parameters | |
| Default Frequencies | 1300-1500MHz (70MHz-6GHz customizable) |
| Channel Bandwidth | 2.5M/5M/10M/20MHz (40MHz optional) |
| RF Waveform | TDD-COFDM (2T2R) |
| Receive Sensitivity | -100dBm@2.5MHz |
| Modulation Type | BPSK/QPSK/16QAM/64QAM (adaptive) |
| FHSS | Optional |
| IFS | Optional |
| Network Parameters | |
| Multi-hop Capability | 15 hops (short message); 10 hops (voice); 8 hops (video) |
| Data rate | Up to 28Mbps@10MHz & 56Mbps@20MHz |
| Delay | 7ms@2.5MHz/hop |
| Start Time | 27s |
| Positioning | GPS/BD/GLONASS (GNSS) |
| Network Access Time | <1s |
| Network Extension | WIFI AP |
| Electrical Parameters | |
| Working Voltage | 12-36V DC |
| Power Consumption | ≤237dBm |
| Physical/Environment | |
| Weight | 475g |
| Dimensions | 120*90*40mm |
| Working Temp. | -40°C~70°C |
| Interface | |
| LAN Interface | *1 |
| Serial Interface | RS232*1 (Or TTL) |
| Video Interface | Mini HDMI*1 |
The IP MESH Radio is a cutting-edge communication device created by LinkAV. The MANET9401-W model is a high-performance radio that is designed to operate in challenging environments where traditional communication methods may not work.
The IP MESH Radio is an ideal product for and government organizations as well as emergency response teams. It is perfect for applications where reliable and secure communication is essential. The MANET Radio can be used in scenarios such as border patrol, disaster relief, and search and rescue missions.
One of the key features of the IP MESH Radio is its ability to function as a wireless ad-hoc network. This feature allows the radio to connect to other radios in the network without the need for a centralized access point. This makes it an ideal solution for applications where traditional communication infrastructure is not available. The MANET Radio can be used to create a network that spans large areas, making it ideal for use in remote locations.
The MANET Radio is a versatile product that can be used in a variety of scenarios. It can be used as a bridge between different types of networks, including IPv4 and IPv6. It also supports GPS and BD positioning, making it ideal for use in mapping and location-based applications.
The IP MESH Radio is a high-quality product that meets international standards for quality and safety. It is certified by CE, FCC, ROHS, and REACH. The product is made in China and has a minimum order quantity of 2pcs.
