Product Description:

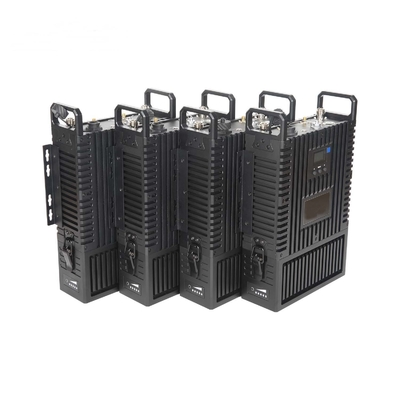

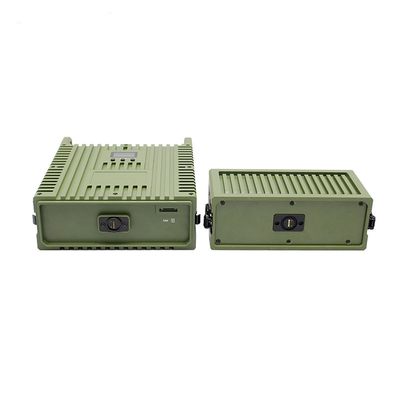

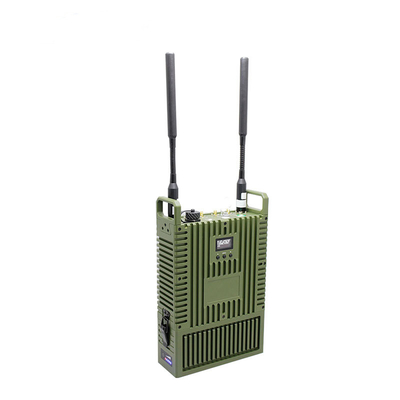

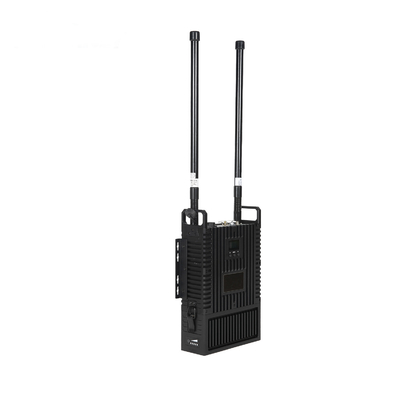

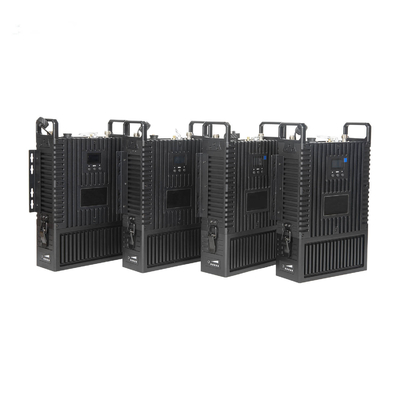

The MANET9201-W is a rugged MANET (Mobile Ad Hoc Network) transceiver supports 4G-LTE connection. Based on FPGA solution, it supports FHSS (Frequency Hopping) and IFS (Intelligent Frequency Selection). It is ideal for a variety of mesh deployments such as Public Security, Armed Police,Fire Control, and Robot. Its multi-hop ability can largely increase the transmission distance. The up to 56Mbps data rate allows it to transmit video, data and audio at the same time easily. The AES encryption ensures the security of data transmission.
Features:
Supports Mobile Ad Hoc Network (MANET)
Frequency 1300-1500MHz (70MHz-6GHz customizable)
Supports FHSS and IFS (Intelligent Frequency Selection)
Supports AES256 Encryption
Supports 4G-LTE and WIFI connection
Data rate up to 56Mbps
Supports PTT voice intercom
Supports GPS/BD/GLONASS (GNSS)
Full transparent IP data transmission
Supports Web and PC software management
With LCD to show the device parameters in real time
HDMI input as optional
Rugged IP66 housing
Technical Parameters:
| RF Parameters |
| Default Frequencies |
1300-1500MHz (70MHz-6GHz customizable) |
| Channel Bandwidth |
2.5M/5M/10M/20MHz (40MHz optional) |
| RF Waveform |
TDD-COFDM + 2T2R |
| Receive Sensitivity |
-100dBm@2.5MHz |
| Modulation Type |
BPSK/QPSK/16QAM/64QAM (adaptive) |
| FHSS |
Optional |
| IFS |
Optional |
| Network Parameters |
| Communication rate |
Up to 28Mbps@10MHz & 56Mbps@20MHz |
| Delay |
7ms@2.5MHz/hop |
| Start Time |
27s |
| Positioning |
GPS/BD |
| Network Access Time |
<1s |
| Network Extension |
WIFI AP/4G Router (optional) |
| Electrical Parameters |
| Working Voltage |
12-24V |
| Power Consumption |
95W |
| Battery Life |
6 hours (13Ah) |
| Physical/Environment |
| Weight |
4.75kg (with battery) |
| Dimensions |
320*200*70mm |
| IP Rating |
IP66 |
| Working Temp. |
-40°C~70°C |
| Interface |
| LAN interface |
*1 |
| Voice Interface |
PTT Mic (7-pin connector*1) |
| Video Interface |
HDMI (optional) |
Dimensions:

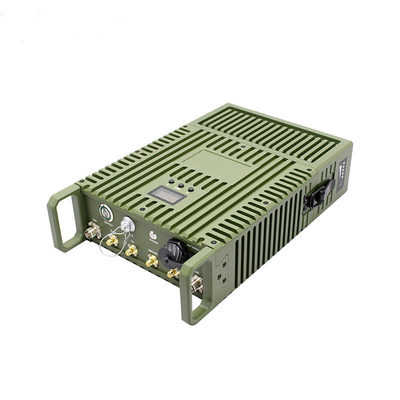

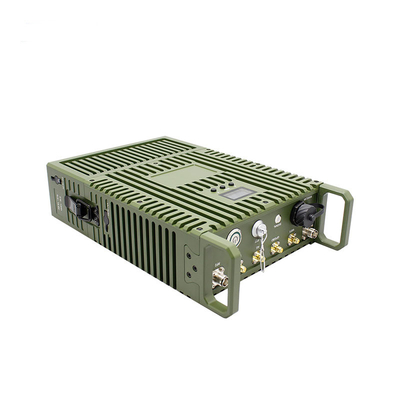

Panel Description:
1- Power push button
2- PTT (Mic)3- MESH signal indicator
4- LAN interface, RJ45
5- Digital LCD indicator
6- Configuration buttons (optional) - set frequency, bandwidth and distance parameters.
7- Battery Indicator
8- Battery butterfly clasp
9- MESH antenna interface-2
10- WIFI antenna interface-2
11- 4G antenna interface
12- GPS/BD antenna interface
13- WIFI antenna interface-1
14- MESH antenna interface-1
1- Battery charging port
2- Main body power input port
1- Battery +/- contacts
2- SIM card slot
Product Advantage:
◆Flexible Networking:
No central distributed networking, flexible carrier bandwidth configuration, supports various network topologies such as point-to-point, chain, star, mesh, mixed dynamic,etc.
◆Powerful Adaptivity:
Built-in H.265 encoder adjusts video bitrate, resolution, and frame rate adaptively based on channel bandwidth to ensure the continuity and smoothness of video transmission services.
◆Intelligent Routing:
Devices can move quickly and network topology can be updated accordingly with dynamic route reconstruction in real-time without affecting overall system communication.
◆Anti-interference:
Wideband carrier frequency hopping (optional) effectively enhances anti-interference capabilities. Additionally, it supports intelligent frequency selection (optional) mode where devices can intelligently choose interference-free frequenciesfor network transmission to avoid interference. It also utilizes ARQ error control transmission mechanism to reduce data loss rates and improve data transmission reliability.
◆Full IP Interconnection:
With Fully IP-based design, it supports various data transmissions for seamless integration with heterogeneous communication systems.
◆Secure Encryption:
It has independently developed system with custom transmission protocols and 64-bit key for air interface transmission encryption. It can dynamically generate scrambling sequences for channel encryption. The system also supports DES56/AES128/AES256 source encryption to enhance security.
◆Easy Operation:
Built-in Wi-Fi communication module allows mobile devices, laptops, or PADs to access and control without the need for wired connections, making user management and maintenance convenient.
◆GIS Services:
With built-in BD/GPS, it supports real-time display of geographical location and latitude/longitude positioning information through. It can measure distances between individual radio stations and track the continuous position of selected radio station groups.
Applications:
- Operations: The MANET Radio is an ideal solution for operations where reliable communication is crucial. Its rugged design and advanced encryption capabilities ensure secure communication between troops, even in the most challenging environments.
- Emergency Response: During emergency situations, such as natural disasters or terrorist attacks, the IP MESH Radio can provide a reliable communication network for first responders to coordinate their efforts and save lives.
- Public Safety: Police and other law enforcement agencies can use the MANET Radio to establish a secure communication network that enables them to share real-time information and coordinate their activities.
- Transportation: The MANET Radio can be used in various transportation scenarios, such as on trains, airplanes, and ships, to provide reliable communication between the crew and passengers.
- Industrial Automation: In industrial automation scenarios, the IP MESH Radio can be used to establish a reliable communication network that enables real-time monitoring and control of various processes.
- Outdoor Activities: The MANET Radio can be used in outdoor activities, such as camping and hiking, to establish a communication network between participants.
The LinkAV MANET9201 IP Mesh Radio has a working frequency of 1300-1500MHz (70MHz-6GHz Customizable), and it features GPS/BD positioning, making it ideal for applications that require location-based services. It also has a data rate of up to 28Mbps@10MHz & 56Mbps@20MHz, allowing for high-speed data transmission. The MESH RADIO has a working voltage of 18.5V (15-21V), and it is certified by CE, FCC, ROHS, and REACH, ensuring its quality and safety. The minimum order quantity for this product is 2pcs, and it comes with packaging details of 40x30x30cm. The delivery time for the MANET Radio is 7-30days, and the payment terms are TT. With a supply ability of 50000pcs/month, the LinkAV MANET9201 IP Mesh Radio is a reliable and cost-effective solution for various communication scenarios.
