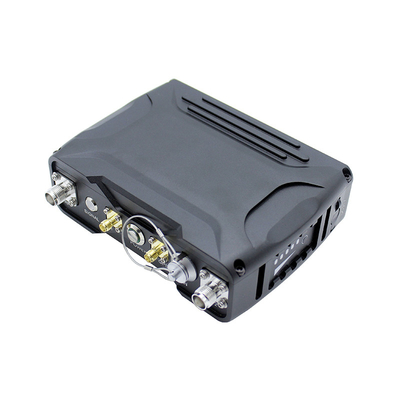

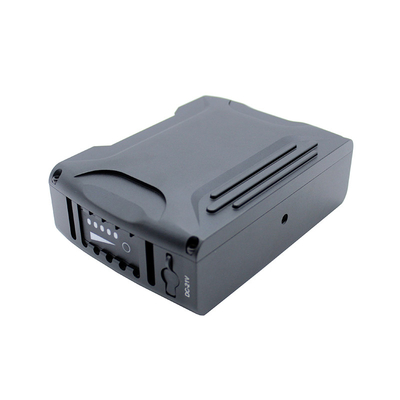

IP MESH Radio Relay 4W Power 82Mbps with Battery
Introduction
The MANET3502 is a rugged IP66 MANET relay transceiver. Offering a full 4 watts of output power, with built-in battery for easy operation, it is ideal for a variety of tactical mesh deployments such as Public Security, Armed Police, Fire Control, Military and Robot. Its multi-hop ability can largely increase the transmission distance, each hop can cover 1-2km NLOS (None-Line-Of-Sight). The up to 82Mbps data rate allows it to transmit video, data and audio at the same time easily. The AES256 encryption ensures the security of data transmission
Features
■ Frequency 1400MHz-1460MHz (562-612MHz)
■ Data rate up to 82Mbps
■ Range up to 1-2km NLOS
■ Supports up to 9 hops and 64 nodes
■ Full transparent IP data transmission
■ Supports GPS and 2.4G WIFI hotspot
■ Supports AES256 encryption
■ Up to 4-5 hours battery life
■ Rugged IP66 design
■ Low system latency
■ The API is available for further development
Specification
| Transmission Characteristics | |
| Frequency | 350MHz-4GHz customizable |
| Default Frequencies | 1400MHz-1460MHz (562-612MHz optional) |
| Channel Bandwidth | 2M/5M/10M/20MHz/40MHz |
| Output Power | 36dBm (4W MIMO 2x2) |
| WIFI | 2.4G WIFI (100mw) |
| Modulation Type | BPSK/QPSK/16QAM/64QAM |
| Digital Sensitivity | -97dBm Max |
| Transmission Rate | Up to 82Mbps |
| Network Capability | 9 hops and no less than 64 nodes |
| Data Characteristics | |
| RF Interface | TNC F*2, SMA F*2 |
| LAN Interface | 9-Pin Lemo connector |
| Signal Indicator | 1x LED dual color (Green/Red) |
| Encryption | 256-bit AES (user-defined password) |
| Electrical Characteristics | |
| Working Voltage | 12-24VDC |
| Charging Voltage | 18.5VDC |
| Power Consumption | ≤12W |
| Battery | 48Wh (18.5V/2.6Ah) |
| Physical Characteristics | |
| Weight | 0.8kg (Estimated) |
| Dimensions | 150.3*108*51mm |
| IP Rating | IP66 |
| Working Temp. | -40~65°C |
| Storage Temp. | -45~85°C |

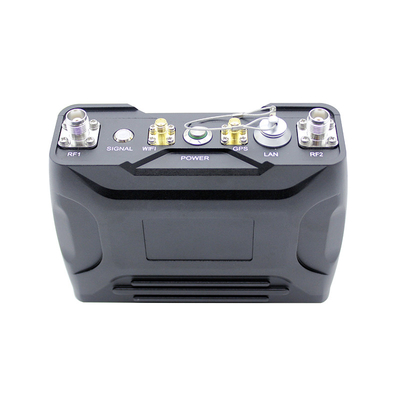

Panel Description
① Signal Indicator
| Indicator Status | Signal Strength | |||
| Green still | Link is solid | |||
| Red/Green flicker intermittently | Link is going to break off | |||
| Red still | Can’t establish link | |||
| Red flickers | Link is not stable | |||
| SNR | Indicator Color | Flicker Frequency | Topology Color | Topology Value |
| 0 | Red | N/A | Green | 0 |
| 1-12 | Red flickers | 350ms | Green | 1-12 |
| 13-25 | Red/Green flicker | 350ms | Green | 13-25 |
| 26-35 | Green flickers | 350ms | Green | 26-35 |
| 36-70 | Green still | N/A | Green | 36-70 |
| ＞70 | Red flickers | 120ms | Green | ＞70 |
② Mic Input Interface
③ LAN Input Interface
④ WIFI Antenna Interface
⑤ Mesh Antenna Interface
⑥ GPS/BD Antenna Interface
⑦ Power Push Button
⑧ Mesh Antenna Interface
