Handheld MANET Radio 1W AES256 FHSS Frequency Hopping Anti-Jamming

Handheld MANET Radio 1W AES256 FHSS Frequency Hopping Anti-Jamming

Introduction

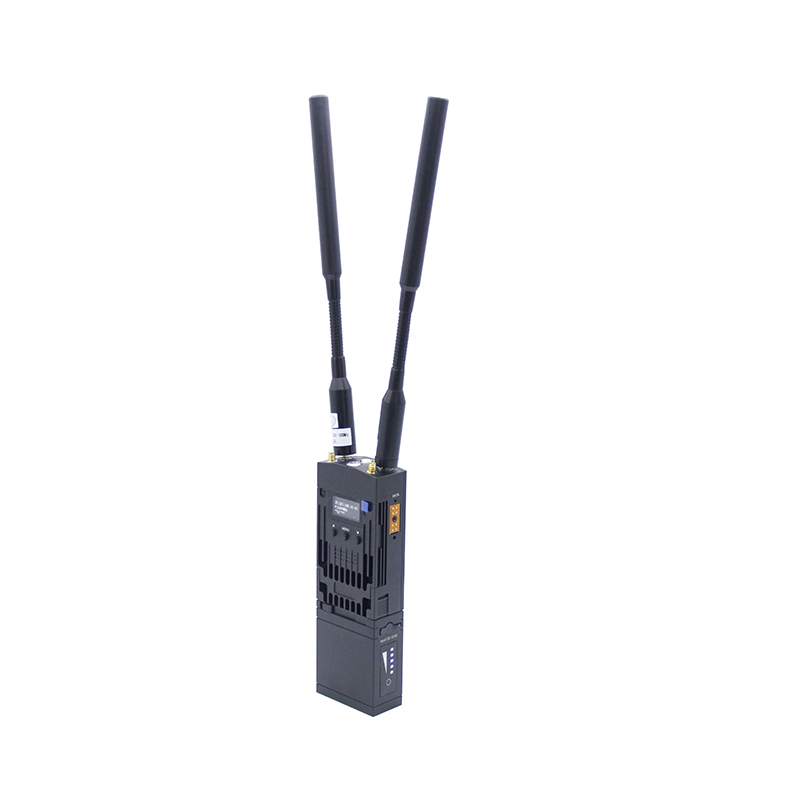

The MANE9100 is a rugged MANET (Mobile Ad Hoc Network) transceiver offering 1 watt power output. Based on FPGA solution, it supports FHSS (Frequency Hopping) and IFS (Intelligent Frequency Selection). It is ideal for a variety of tactical mesh deployments such as Public Security, Armed Police, Fire Control, Military and Robot. Its multi-hop ability can largely increase the transmission distance, each hop can cover 0.5-1km NLOS. The up to 48Mbps data rate allows it to transmit video, data and audio at the same time easily. The AES encryption ensures the security of data transmission.

Features

■ Supports Mobile Ad Hoc Network (MANET)

■ Frequency 1300-1500MHz

■ Supports FHSS and IFS (Intelligent Frequency Selection)

■ Supports AES256 Encryption

■ 2x0.5W power output

■ Up to 48Mbps data rate

■ 4/8/32/64/128/256 nodes for selection

■ Supports PTT voice intercom

■ Supports GPS/BD/GLONASS (GNSS)

■ Full transparent IP data transmission

■ Supports Web management

■ With LCD to show the device parameters in real time

■ Rugged IP65 housing

Specification

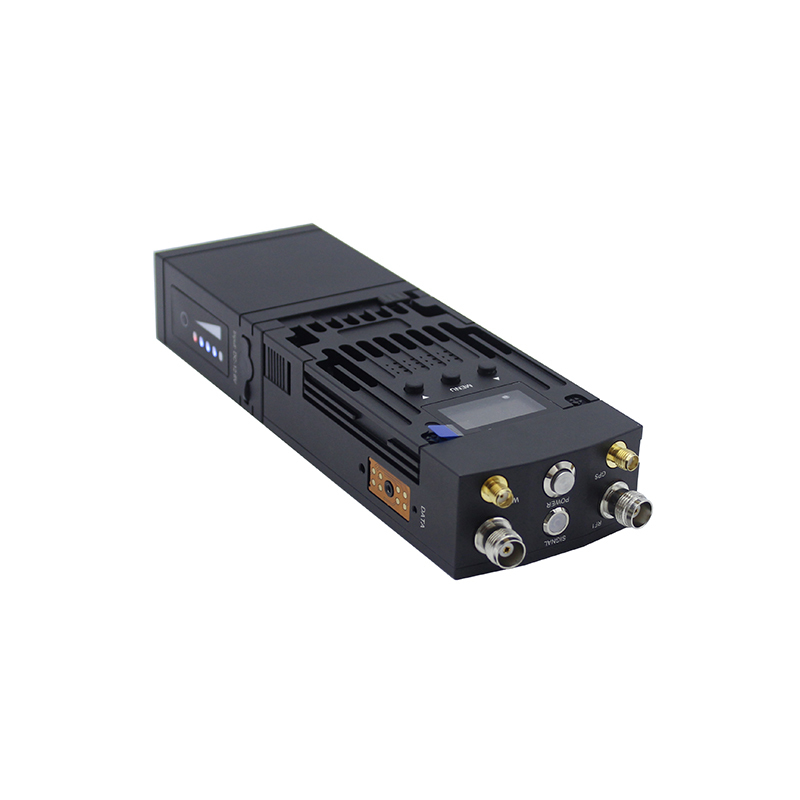

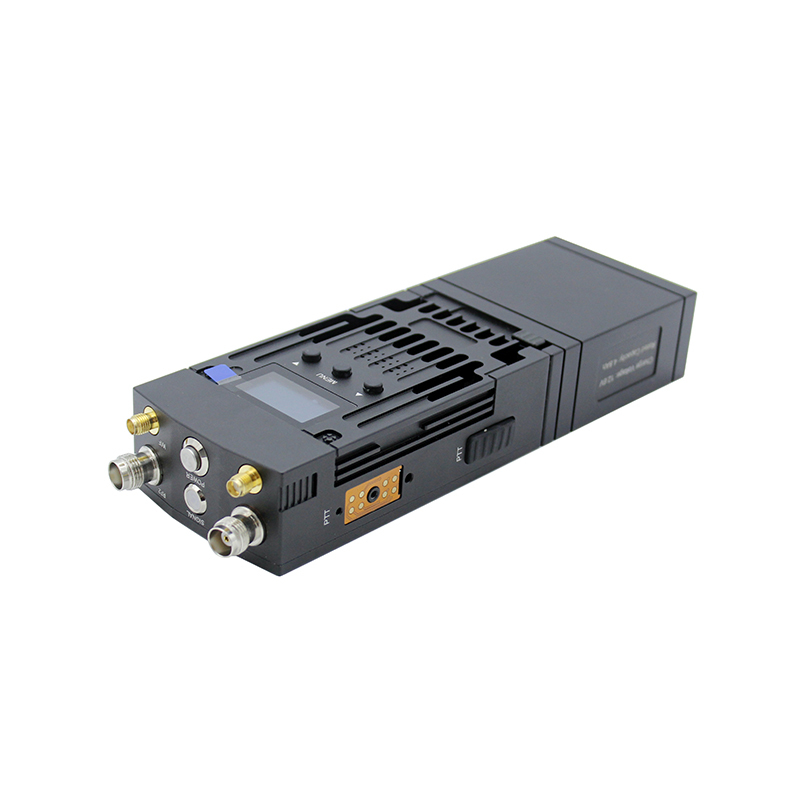

Interface Description

• Battery Level Display Button: Displays the current battery level.
• Charging Port: For powering the device and charging the battery.
• DATA Interface: Serves as both a network port and a serial port.
• MESH Antenna Interface – 1: The device's main antenna for transmitting and receiving signals.
• MESH Signal Indicator Light: A dual-color LED indicating signal status — red flashing/no connection, red/weak, yellow/medium, green/strong.

• MESH Antenna Interface -2: The device's main antenna for transmitting and receiving signals
• GPS Antenna Interface: Connects an external GPS antenna for acquiring satellite signals.
• Power Button: Used to power the device on and off.
• WIFI Antenna Interface: Connects an external Wi-Fi antenna for broadcasting Wi-Fi signals.
• Display Screen: Shows device information such as noise floor, IP address, frequency, bandwidth, etc.
• Scroll Up Button: Used for configuration and parameter adjustment.
• Menu Button: Used for configuration and parameter adjustment.
• Scroll Down Button: Used for configuration and parameter adjustment.
• Battery Release Latch: Used for securing or removing the battery.
• External PTT & Microphone Interface: Allows connection of an external microphone for PTT operation.
• PTT Button: Enables push-to-talk communication with other mesh devices.
