Anti-Jamming UAV Video Data Link FHSS AES256 High Sensitivity
Introduction
The MANET9400 is a rugged MANET (Mobile Ad Hoc Network) transceiver special designed for UAV video data transmission. Based on FPGA solution, it supports FHSS (Frequency Hopping) and IFS (Intelligent Frequency Selection). Offering 1 watt power output. It is ideal for a variety of tactical mesh deployments such as Public Security, Armed Police, Fire Control and Military. Its multi-hop ability can largely increase the transmission distance. The up to 48Mbps data rate allows it to transmit video, data and audio at the same time easily. The AES256 encryption ensures the security of data transmission.
Features
■ Supports Mobile Ad Hoc Network (MANET)
■ Frequency 1300-1500MHz
■ Supports FHSS and IFS (Intelligent Frequency Selection)
■ Supports AES256 Encryption
■ 2x0.5W power output
■ Data rate up to 48Mbps
■ 2/4/8/32/64/128/256 nodes as optional
■ Supports GPS/BD/GLONASS (GNSS)
■ Full transparent IP data transmission
■ Supports WebUI management
Specification
| RF Parameters | |
| Default Frequencies | 1300-1500MHz |
| Channel Bandwidth | 2.5M/5M/10M/20MHz |
| RF Waveform | TDD-COFDM (2T2R) |
| Output Power | 2x0.5W, 1dBm step adjustable |
| Receive Sensitivity | -100dBm@5MHz |
| Modulation Type | BPSK/QPSK/16QAM/64QAM (adaptive) |
| FHSS | Optional (>1000 hop/s) |
| IFS | Optional |
| Network Parameters | |
| Network Size | 2/4/8/32/64/128/256 nodes as optional |
| Multi-hop Capability | 15 hops (short message); 10 hops (voice); 8 hops (video) |
| Range | 10-30km (Air-to-Ground LOS) |
| Data rate |
28Mbps@10MHz; 48Mbps@20MHz; |
| Delay | 7ms@2.5MHz/hop |
| Movement Speed | >1000km/h |
| Start Time | 27s |
| Network Access Time | <1s |
| Electrical Parameters | |
| Working Voltage | 7-15V DC |
| Power Consumption | ≤9W |
| Physical/Environment | |
| Weight | 130g |
| Dimensions | 84*95*18mm |
| Working Temp. | -40°C~70°C |
| Interface | |
| LAN Interface | *1 |
| Serial Interface | RS232*2 (Or TTL) |
Interface Description

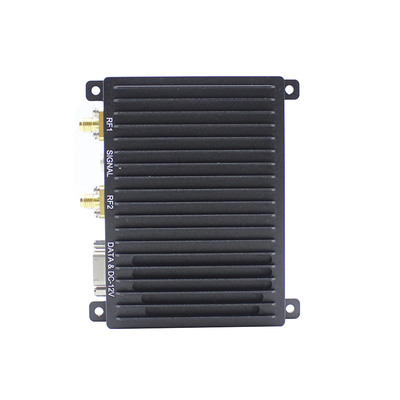

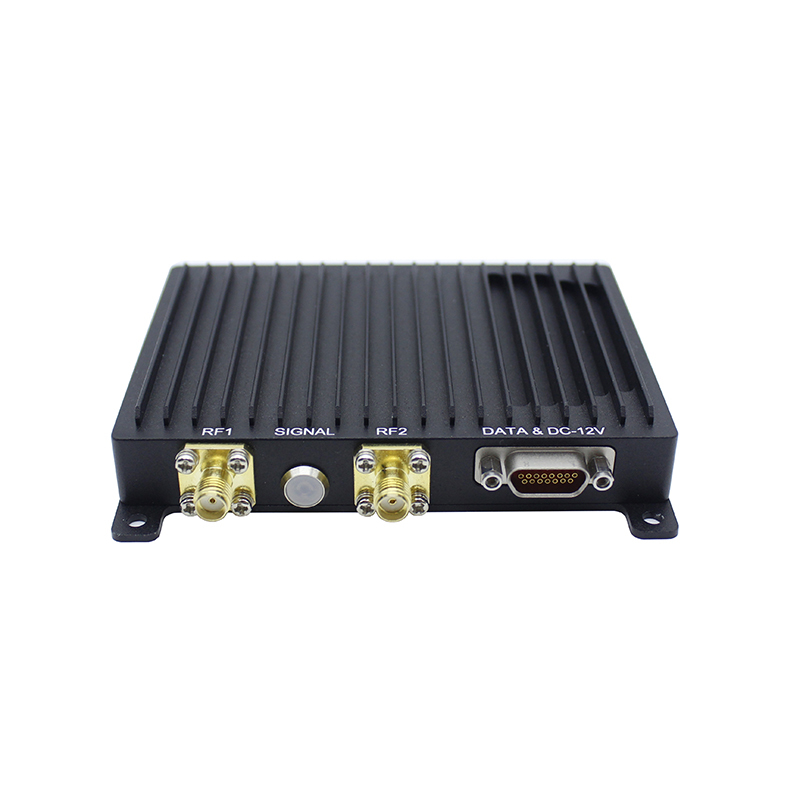

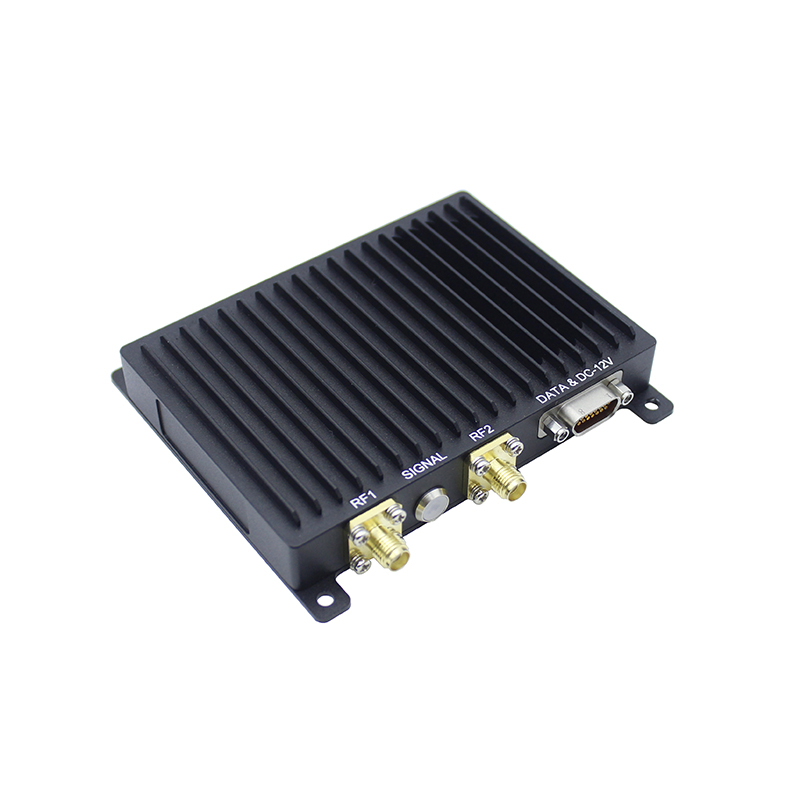

1. MESH antenna interface-1, SMA F
2. Signal Indicator
3. MESH antenna interface-2, SMA F
4. Data & Power input interface
| SNR | Link Quality | Topology Color |
| SNR ≥ 17 | Excellent | Deep Green |
| 12 ≤ SNR < 17 | Good | Light Green |
| 7 ≤ SNR <12 | Fine | Yellow |
| 2 ≤ SNR <7 | Medium | Orange |
| -10 < SNR <2 | Bad | Red |
| SNR = -10 | Disconnected | N/A |
