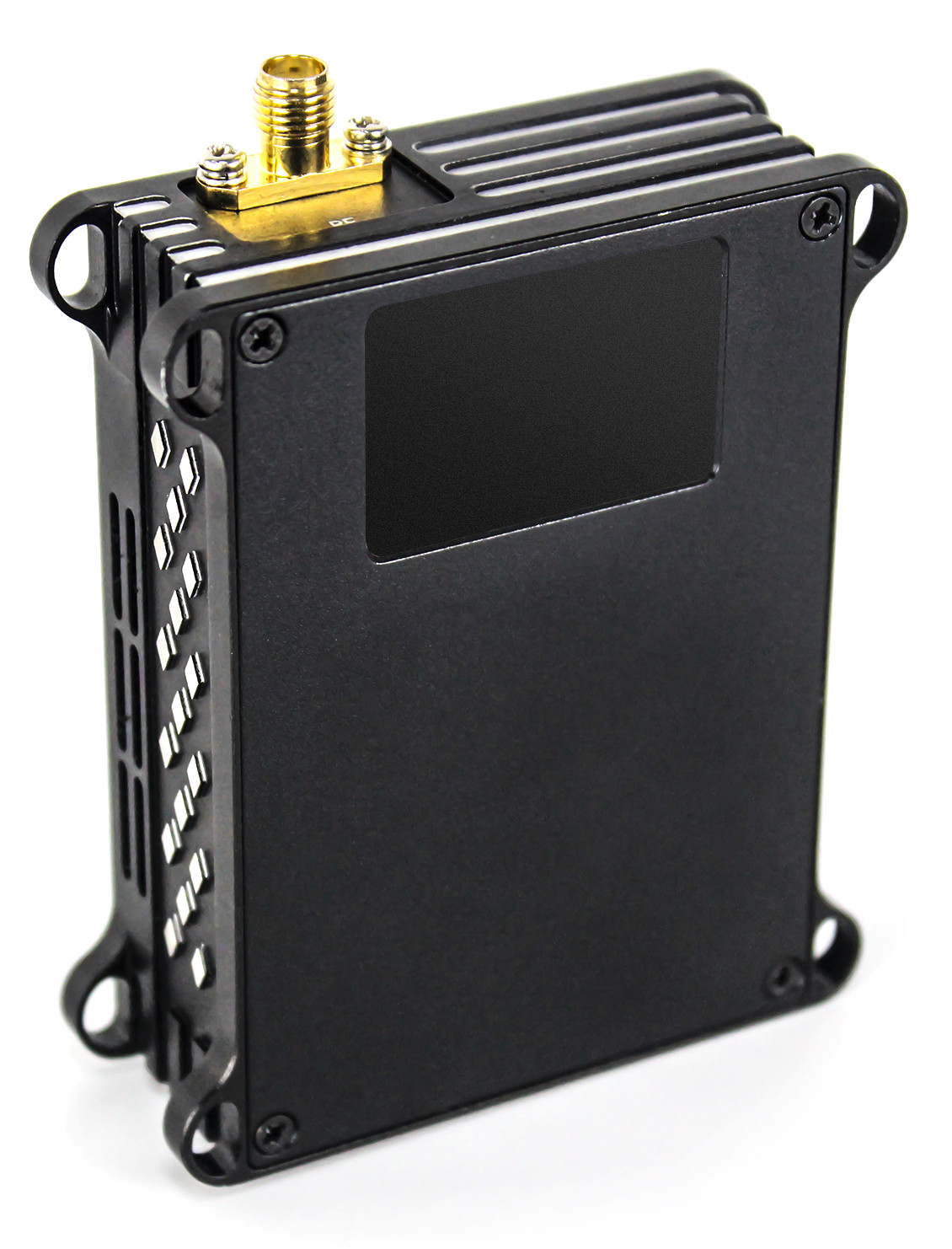

This COFDM modulation transmitter is lightweight & rugged housing, perfect for UAV/UGV/USV applications.
![]()
SPECIFICATION:
| Transmission Characteristics | |
| Modulation Type | QPSK (4QAM), 16QAM, 64QAM |
| Working Frequency | 300-860 MHz ( adjustable 0.1M per step) |
| RF Bandwidth | 1.25/2.5/6/7/8MHz(optional) |
| FEC(forward error correction) | 1/2, 2/3, 3/4, 7/8 |
| Guard Interval | 1/4,1/8,1/16,1/32 |
| Latency | 60-110 ms |
| Data Characteristics | |
| Video Input | AV ( PAL/NTSC) |
| HDMI / SDI | |
| Video Compression | H.264 |
| RF Interface | SMA F head |
| Parameter Control Method | Using digital LED control panel |
| Encryption Method | 128 - bit AES |
| Electrical Characteristics | |
| Working Voltage | DC 12V |
| Working Current | 1.5 A |
| Power Consumption | ≤18W |
| Physical Characteristics | |
| Working Environment | -10~70℃ |
| Dimensions | 77 × 64 × 23.5 mm |
| Weight | 105g |
Application
![]()
