5km 600Mbps Ethernet Wireless Bridge IP MESH WebUI 24V 48V POE

5km 600Mbps 5G/2.4G Wireless Ethernet Bridge IP MESH WebUI 24V/48V PoE

Introduction

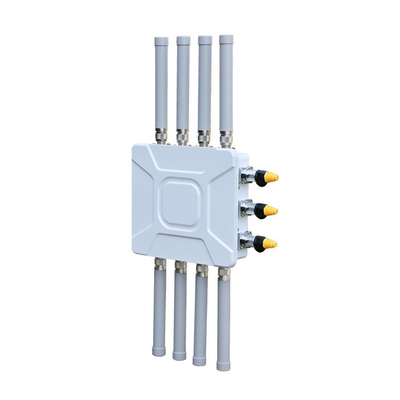

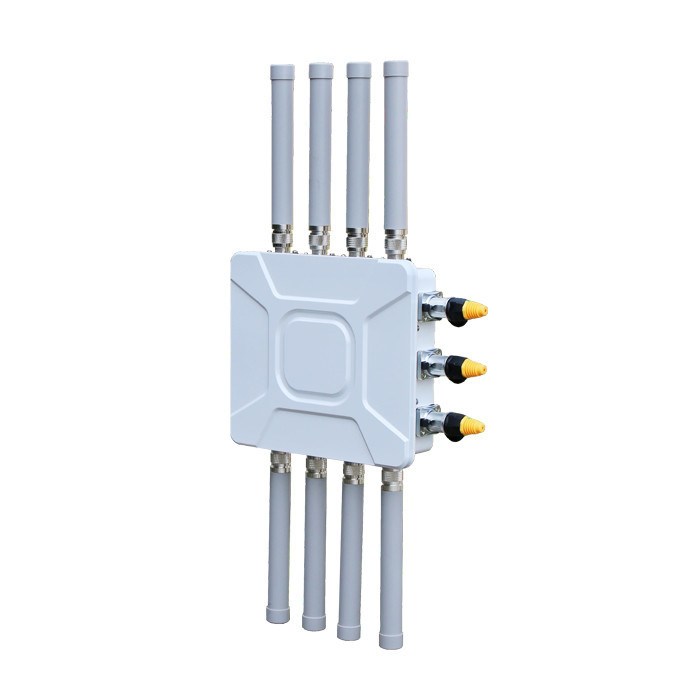

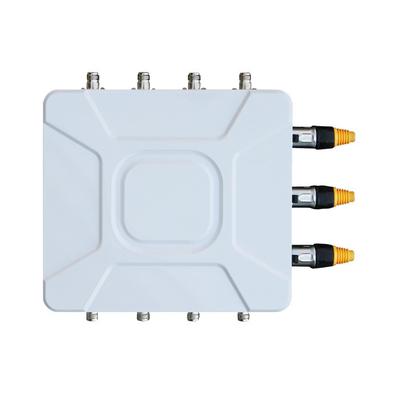

The LKAV-3718 is a high-performance three-band MESH wireless bridge based on Qualcomm 11AC Wave2.0, which integrates two independent non-interference high-power 802.11ac Wave2.0 5G modules and a 2.4G WiFi module. Supports three-band simultaneous work, 5G_L and 5G_H can be used as MESH dual links at the same time, and 2.4G can be used for independent coverage. It can be widely used in various projects that require high-speed bridging, multi-hop relay, large-capacity access, and fast roaming.

Features

■ Independent tri-band 802.11AC Wave2.0, support 5G band MESH dual-link networking and 2.4G/5G dual-band WiFi coverage

■ High power, 5G frequency band power up to 28dBm, 2.4G up to 26dBm

■ High bandwidth, point-to-point rate up to over 600Mbps, MESH dual link multi-hop without speed reduction

■ Supports MU-MIMO

■ Supports TDMA time division multiple access (point-to-multiple mode)

■ Large-capacity access, the number of clients that can be connected to the tri-band is more than 200

■ Supports 802.11KV automatic roaming protocol

■ Supports WAPI encryption

■ Scalable 4/5G public network access

Applications

■ Tunnel

■ Pipe Gallery

■ Oilfield

■ Mine

■ Hall/Stadium

■ Industrial Automation

■ Park

■ Farm

■ Fleet Networking

Specification
