Rugged IP66 MESH Radio Integrates LTE Base Station For video communication
Introduction

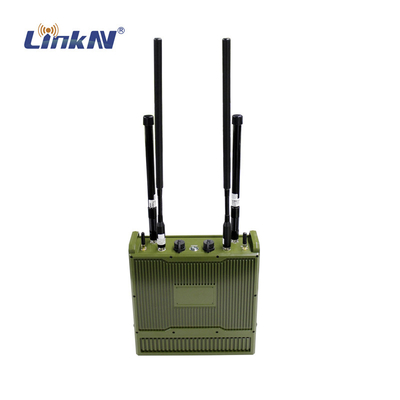

The MANET7903-W is a high power 40dBm MESH radio integrates 4G-LTE base station, GPS/BD and 2.4G WIFI. It can provide 4G public network coverage at the emergency site and Internet access for mobile phones. The MESH module is used for wireless backhaul link of the 4G-LTE module such as connects to the remote portable satellite station or ground backbone network transmission equipment. With buckle-up battery for easy replacement. It can be applied to multiple scenarios such as emergency search & rescue, fire control etc.
Features
■ High MESH bandwidth up to 82Mbp
■ High-speed data based on 3GPP LTE technology
■ Integrated design of baseband and radio frequency
■ High safety AES256 encryption
■ Powerful network management system
■ Supports 2.4G WiFi and GPS/BD
■ Full IP duplex transparent data transmission
■ Flexible networking and rapid deployment
■ Rugged three-proof IP66 design
■ Convenient operation and maintenance
■ Battery life up to 4 hours
Specification
| MESH Characteristics | |
| Default Frequencies | 1.4GHz (350MHz-4GHz customizable) |
| Channel Bandwidth | 2/5/10/20/40MHz |
| RF Channel | 2T2R |
| WIFI | 2.4G/5.8G WIFI (2x100mw) |
| Modulation Type |
DSSS/CCK BPSK/QPSK OFDM BPSK/QPSK/16-QAM/64-QAM |
| Receiving Sensitivity | -97dBm |
| Data Rate | Up to 82Mbps |
| Link Latency | 7ms |
| Positioning | GPS/BD |
| Frequency Sweep | Via software |
| Performance Monitoring | Via software |
| Encryption | AES256 |
| LTE Characteristics | |
| User Throughput Rate | Peak downlink 90Mbps, uplink 45Mbps, ping delay ≤50ms |
| LTE | Voice call |
| Electrical Characteristics | |
| Working Voltage | DC 14.8V |
| Battery Capacity | 18Ah |
| Power Consumption | ≤70W |
| Physical Characteristics | |
| Weight | 8.5kg (w/ battery) |
| Dimensions | 310*300*100mm |
| IP Rating | IP66 |
| Storage Temp. | -45℃~85℃ |
| Working Temp. | -40℃~65℃ |
| Working Humidity | 5%RH-95%RH (Non-Condensing) |
Dimensions

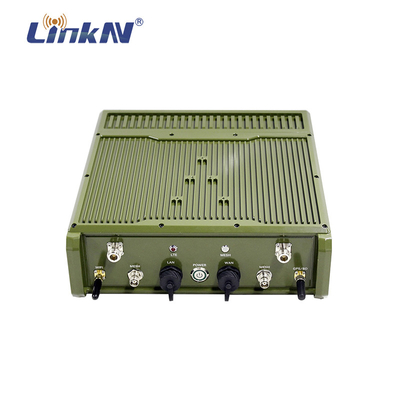

Panel Description
① LTE antenna interface-1
② LTE status indicator
③ MESH signal indicator
④ LTE antenna interface-2
⑤ WIFI antenna interface
⑥ MESH antenna interface-1
⑦ LAN interface (RJ45)
⑧ Power push button
⑨ WAN interface (RJ45)
⑩ MESH antenna interface-2
⑪ GPS/BD antenna interface
⑫ Charging port
⑬ Battery buckle
⑭ Battery indicator
Topology Diagram
■ Chain Type
■ Star Type
■ Mesh Type
■ Random Type
Application Scenario
