Long Distance IP MESH Radio Multi-hops 82Mbps High Power AES Enrcyption
Introduction

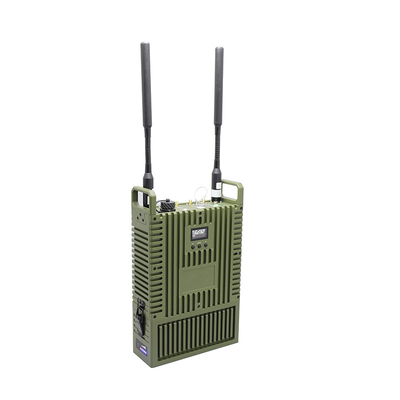

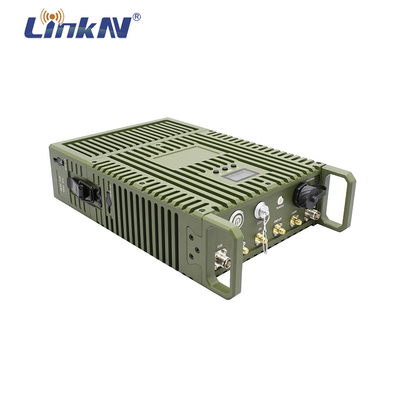

The MANET3702-W is a high-power IP MESH radio base station which can be applied to multiple usage scenarios. It can be installed at a fixed point, a moving vehicle, a ship or an unmanned ship, etc., anytime, anywhere, one-key startup, no need to configure and change parameters. It can provide stable network at long distance complex situations.
Features
■ Frequency 1400-1460MHz (562-612MHz)
■ Data rate up to 82Mbps
■ With built-in 4G-LTE router
■ Full transparent IP data transmission
■ Supports two-way intercom
■ Supports 2.4G WIFI connection
■ Supports Web and PC software for management
■ Supports AES encryption
■ Rugged IP66 housing
Specification
| Transmission Characteristics | |
| Default Frequencies | 1400MHz-1460MHz (562-612MHz) |
| Channel Bandwidth | 5M/10M/20MHz/40MHz |
| RF Channel | 2T2R |
| WIFI | 2.4G MIMO (2x100mw) |
| Modulation Type |
DSSS/CCK BPSK/QPSK OFDM BPSK/QPSK/16-QAM/64-QAM |
| Data Rate | Up to 82Mbps |
| Positioning | GPS/BDS |
| Encryption | AES |
| Electrical Characteristics | |
| Working Voltage | DC 16.8V |
| Battery Capacity | 13Ah |
| Power Consumption | ＜High Power Average |
| Physical Characteristics | |
| Weight | 4kg |
| Dimensions | 320*200*70mm |
| IP Rating | IP66/IP67 |
| Storage Temp. | -45℃~85℃ |
| Working Temp. | -40℃~65℃ |
| Working Humidity | 5%RH-95%RH (Non-Condensing) |
Dimensions

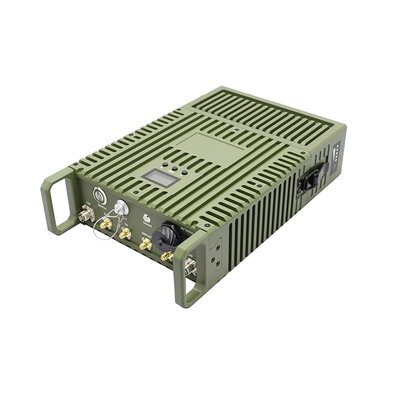

Panel Description
① Power push button
② PTT (Mic)
③ MESH signal indicator
④ LAN interface, RJ45
⑤ Digital LCD indicator
⑥ Configuration buttons (optional) - set frequency, bandwidth and distance parameters.
⑦ Battery Indicator
⑧ Battery butterfly clasp
⑨ MESH antenna interface-2
⑩ WIFI antenna interface-2
⑪ 4G antenna interface
⑫GPS/BD antenna interface
⑬ WIFI antenna interface-1
⑭ MESH antenna interface-1
① Battery charging port
② Main body power input port
① Battery +/- contacts
② SIM card slot
Topology Diagram
■ Chain Type
■ Star Type
■ Mesh Type
■ Random Type
Application
