Drone Video Transmitter Mini Size Rugged Housing

Introduction

The MANET1614-W is a COFDM wireless video transmitter specially designed for UAV applications. With advanced COFDM and H.264 technologies at its core, it enables to establish rugged wireless video link under all environments including high-speed mobile. The compact size makes it ideally for UAV installations.

Features

• HDMI and CVBS dual video inputs
• 60-80ms low system latency
• Frequency 300MHz-2.7GHz customizable
• Rugged aluminum alloy housing
• Compact size and light weight
• AES256 encryption

Specification

Panel Description

• Front Panel

1. Antenna interface – SMA F

• Rear Panel

1. Power input – 2-pin, DC 12V
2. AV video input – CVBS, analog SD
3. HDMI video input – digital HD
4. RJ45 port – reserved
5. Data port – reserved
6. CFG port – configuring port
7. Power indicator – red light

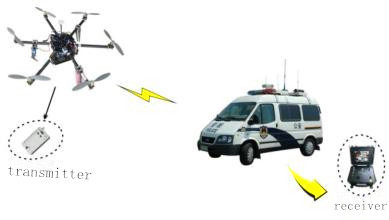

Application
