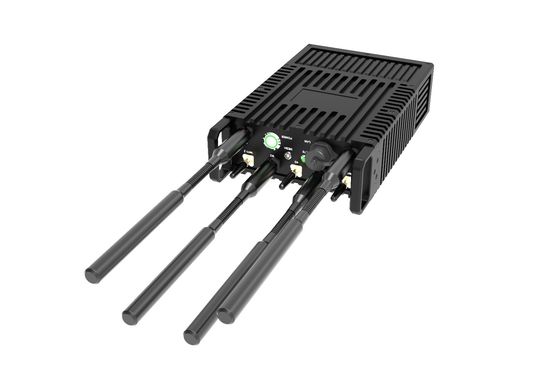

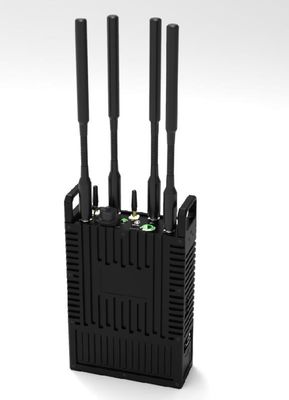

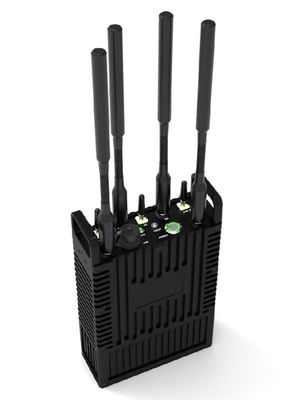

IP MESH Radio 4G LTE Multi-Network IP66 MIMO 2.4G/5.8G WIFI
The MANET4601-W is a very flexible multi-network integration product. It can adopt a variety of communication combinations and apply to different usage scenarios. It can be installed at a fixed point, a moving vehicle, a ship or an unmanned ship, etc., anytime, anywhere, one-key startup, no need to configure and change parameters.
Features
■ High bandwidth up to 82Mbps
■ Supports 4G SIM card
■ Supports 2.4G/5G dual-band WIFI
■ Full IP duplex transparent data transmission
■ Flexible networking and rapid deployment
■ Rugged three-proof IP66 design
■ Compact size and light weight
■ Convenient operation and maintenance
■ One-click use
Specification
| Transmission Characteristics | |
| Frequency | 350MHz-4GHz customizable |
| Default Frequencies | 1400MHz-1480MHz |
| Channel Bandwidth | 2M/5M/10M/20MHz/40MHz |
| RF Channel | 2T2R |
| WIFI | 2.4G/5.8G WIFI (2x100mw) |
| Modulation Type |
DSSS/CCK BPSK/QPSK OFDM BPSK/QPSK/16-QAM/64-QAM |
| Data Rate | Up to 82Mbps |
| Encryption | 256-bit AES (user-defined password) |
| Electrical Characteristics | |
| Working Voltage | DC12V |
| Battery | 168Wh |
| Physical Characteristics | |
| Weight | 3.5kg (w/ battery) |
| Dimensions | 290*180*72mm (w/battery) |
| IP Rating | IP66 |
| Working Humidity | 5%-95% (Non-Condensing) |
Dimensions
Panel Description

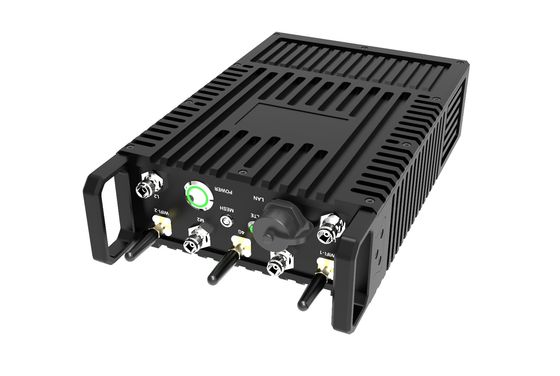

Front Panel
① WIFI antenna interface 1
② MESH antenna interface 1
③ 4G antenna interface
④ MESH antenna interface 2
⑤ WIFI antenna interface 2
⑥ LTE antenna interface 1
⑦ RJ45 interface female
⑧ LTE signal indicator
⑨ MESH signal indicator
⑩ Power Switch
⑪ LTE antenna interface 2
Rear Panel
⑫ SIM card interface
⑬ Power Input interface
